Article No. 66078

STEELFIX REGULAR 115, height 150 mm

Type 150, drain element, stainless steel, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

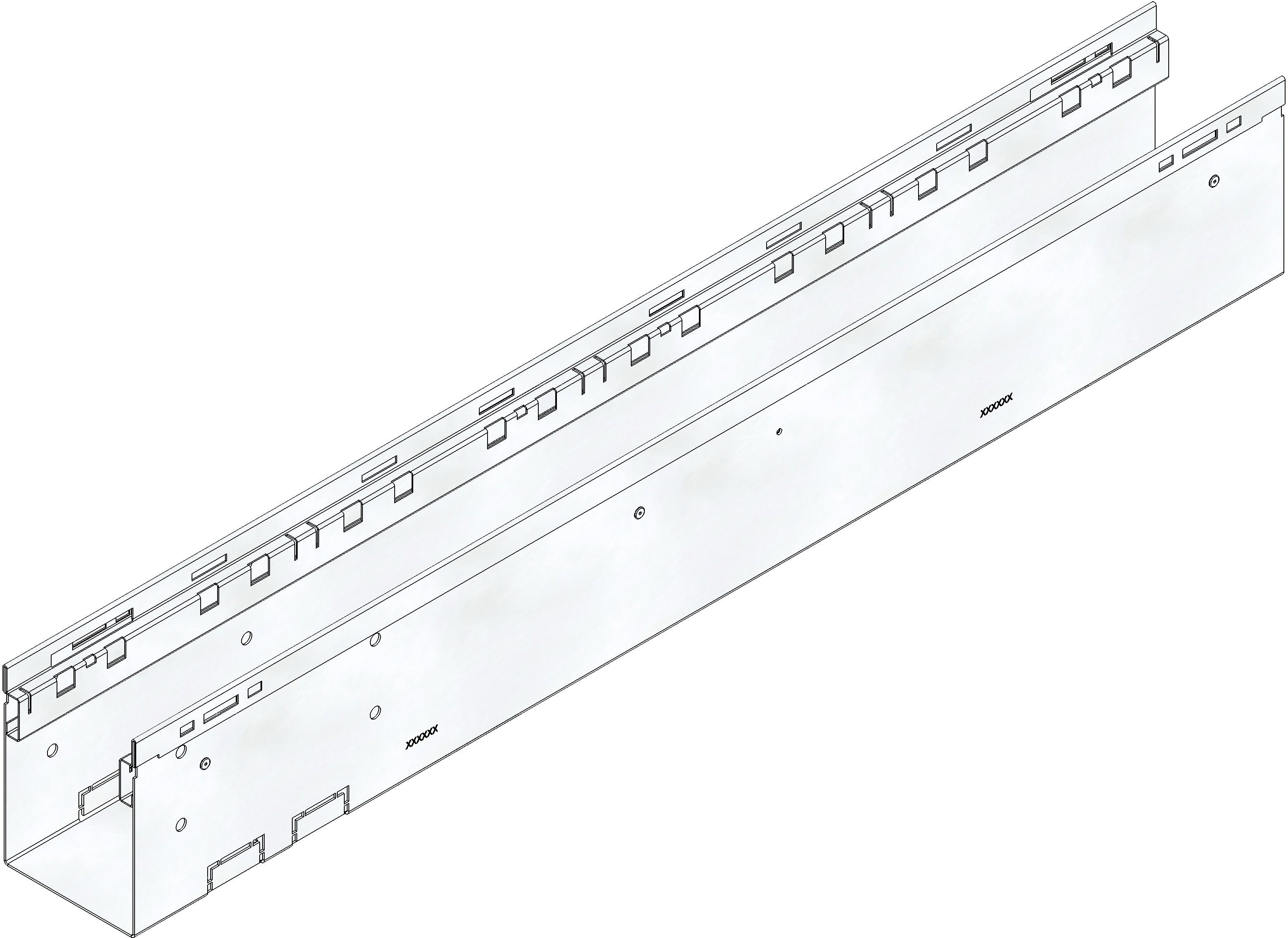

Product image

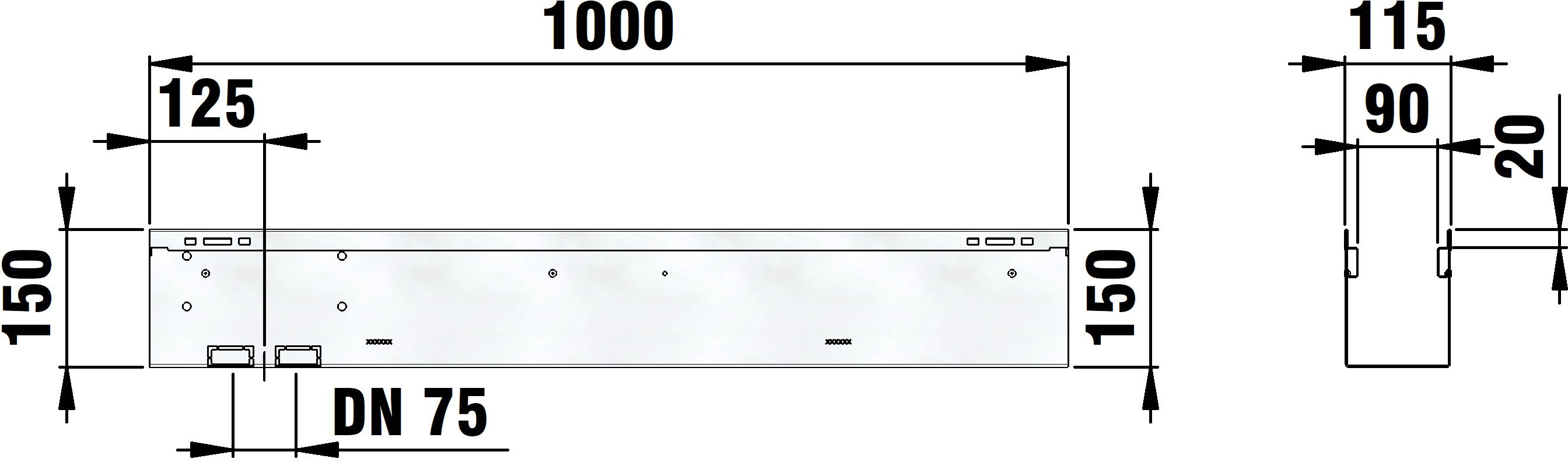

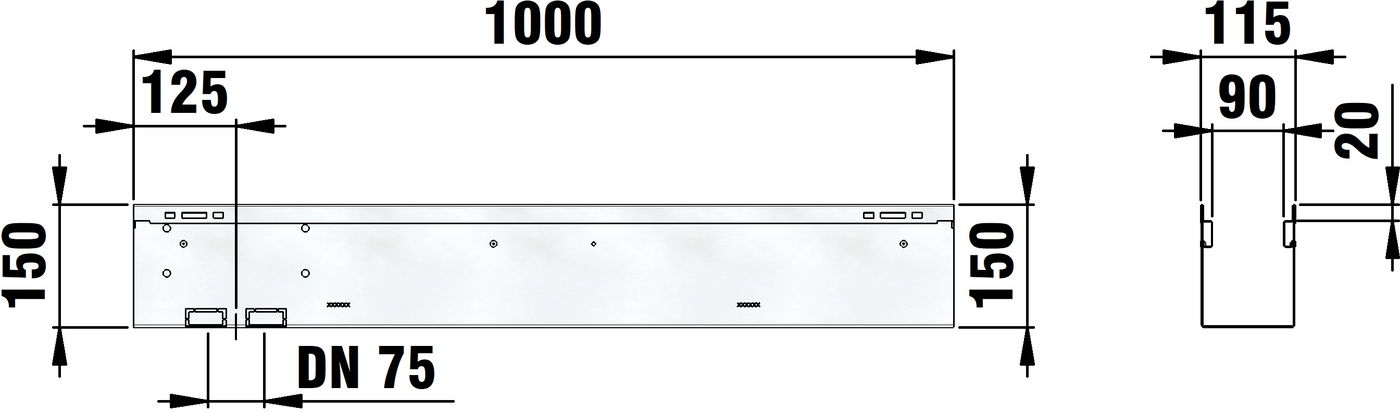

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66078
Length
1000 mm
Width
115 mm
Height
150 mm
Weight
6.23 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
134 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
STEELFIX REGULAR 115 Channel body type 150 -drain element, stainless steel, installation height 150 mm, 1 m
Product description
STEELFIX REGULAR 115 type 150 - Channel body, made of stainless steel CNS 1.4301, pedestrian and wheelchair-accessible, cover support tilted inwards, channel base and sides closed, but with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x115x150 mm, item no. 66078
Packaging unit
-

Tender Texts

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

flagstone surface class Walkable, wheelchair accessible
