Article No. 66094

STEELFIX REGULAR 155, height 150 mm

Type 150, drain element, stainless steel, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

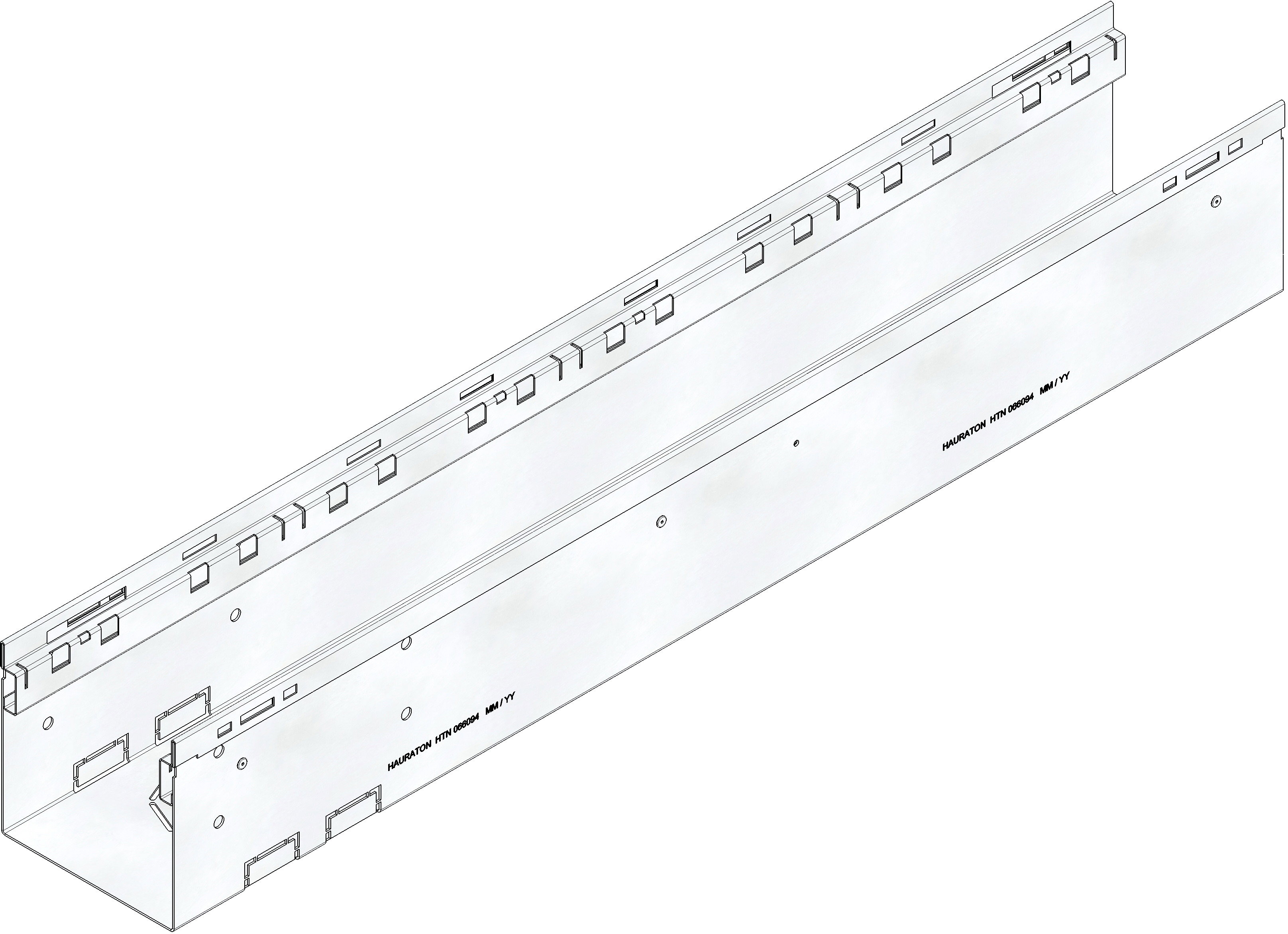

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66094
Length
1000 mm
Width
155 mm
Height
150 mm
Weight
6.49 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
155
Internal channel cross-section
188 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
STEELFIX REGULAR 155 Channel body type 150 -drain element, stainless steel, installation height 150 mm, 1 m
Product description
STEELFIX REGULAR 155 type 150 - Channel body, made of stainless steel CNS 1.4301, pedestrian and wheelchair-accessible, cover support tilted inwards, channel base and sides closed, but with perforation in the channel base as connection possibility for pipe outlet connection DN/OD 75 or DN/OD 100 and connection possibility with STEELFIX REGULAR sump unit, LxWxH 1000x155x150 mm, item no. 66094
Packaging unit
-
