Article No. 12192
sump unit
for NW 100, with edge frames made of galvanised steel and with silt bucket made of recycled PP, with ductile iron cover SW 100/6 mm, KTL-coated, cl. F 900, 4-fold bolting, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

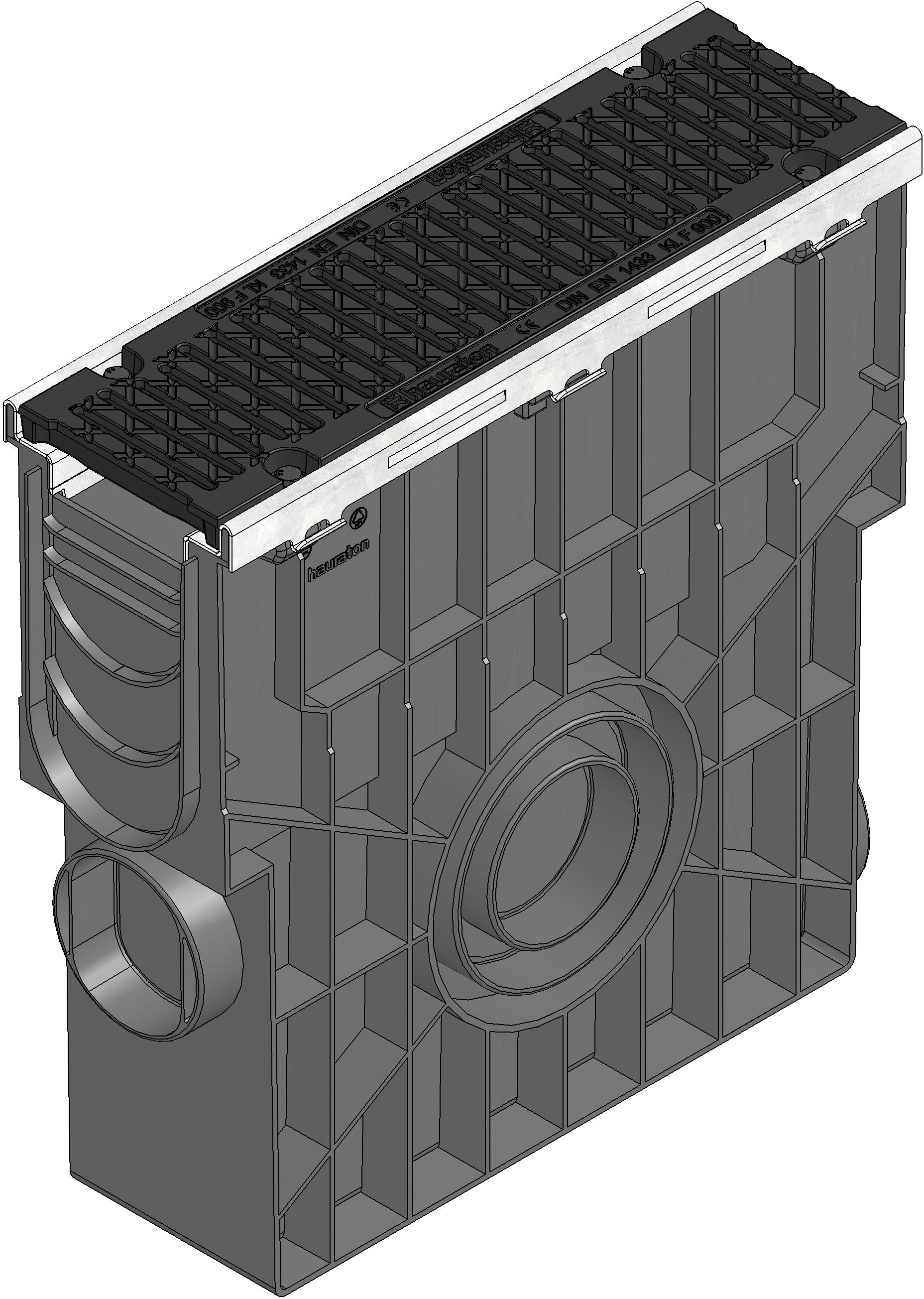

Product image
Technical drawing
Drawing (CAD)

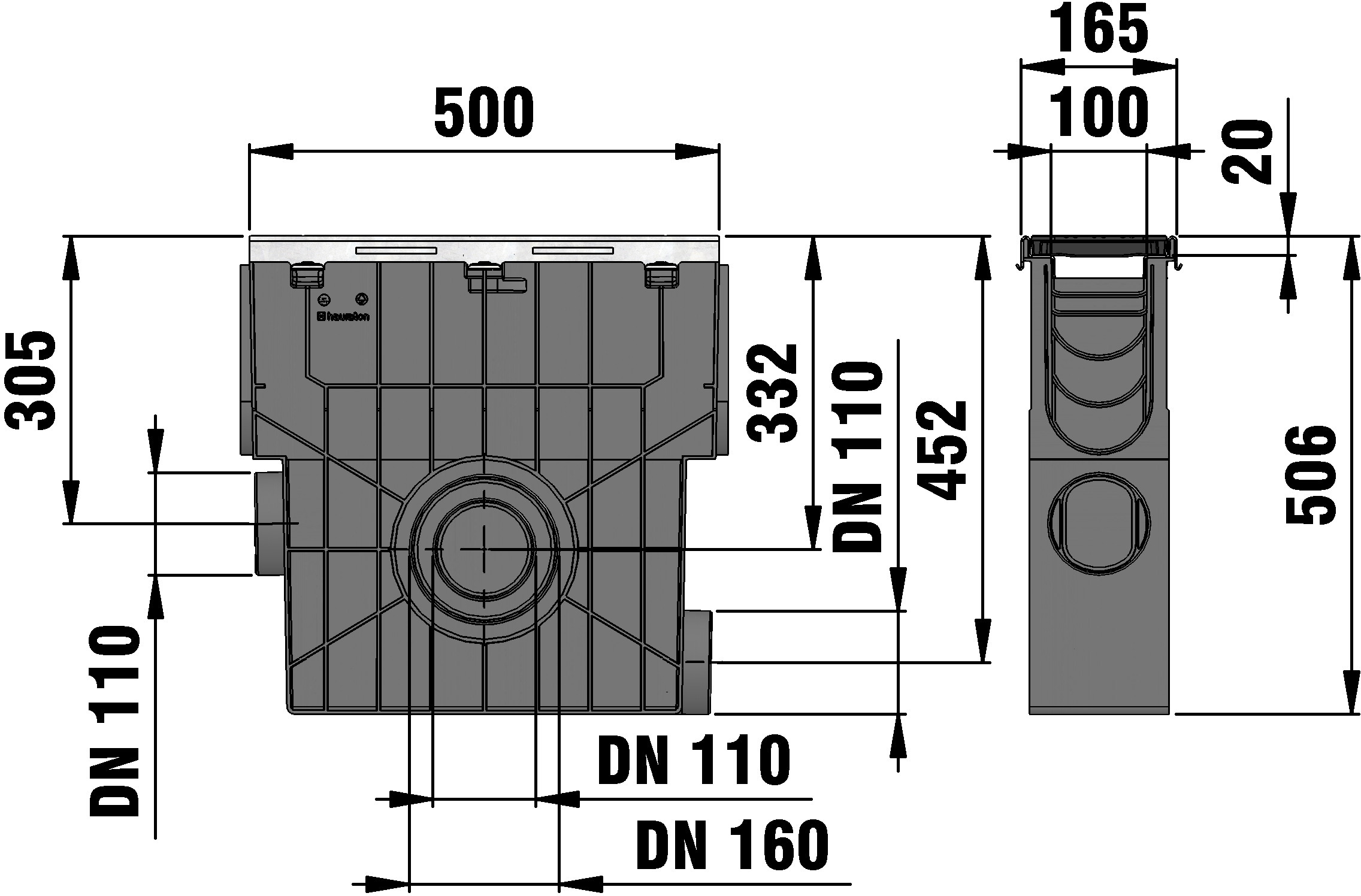

Drawing

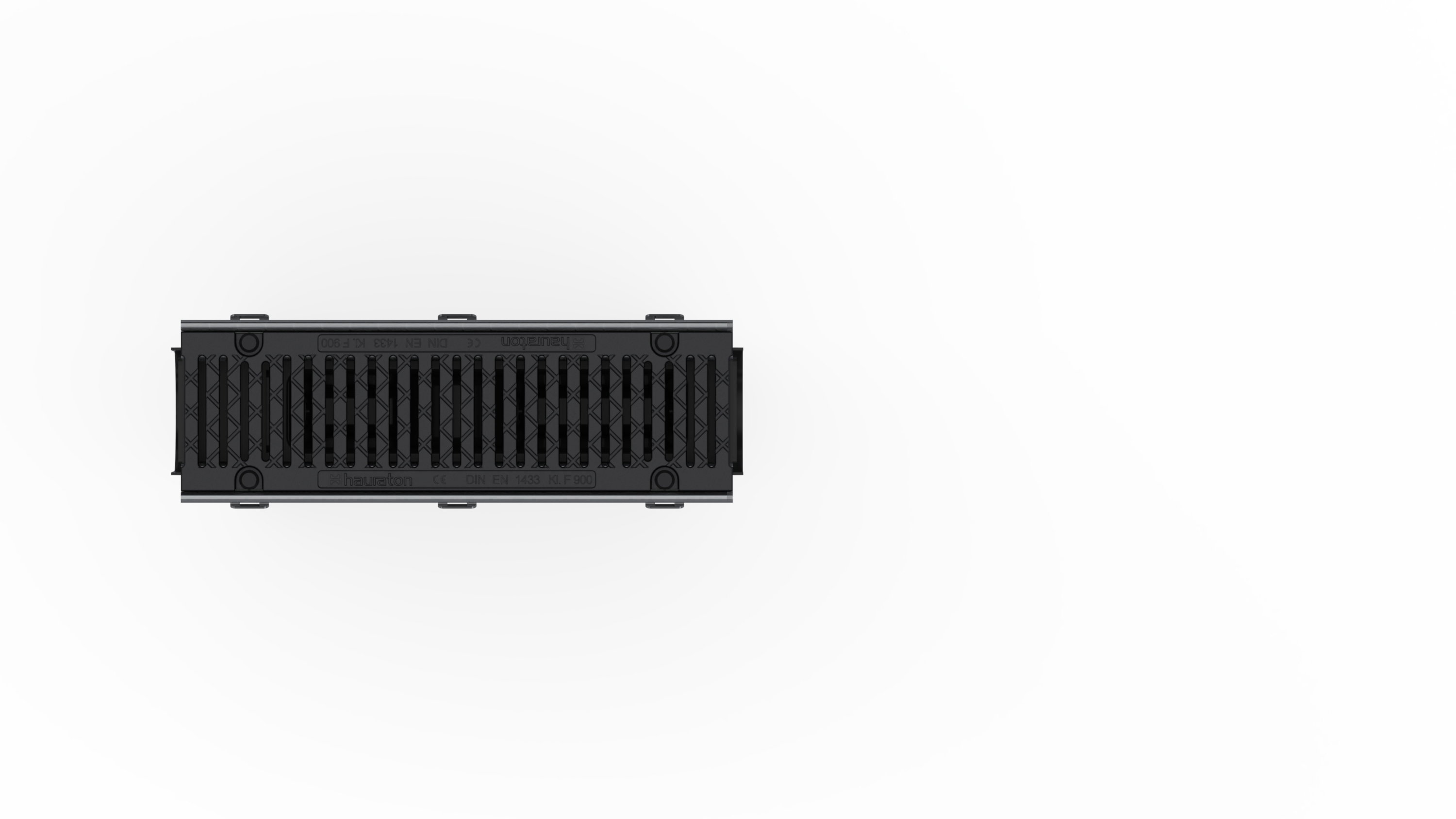

Top view
Technical information and metrics
Article No.
12192
Length
500 mm
Width
165 mm
Height
506 mm
Einlegetiefe
21 mm
Weight
11.09 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
302.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with ductile iron cover SW 100/6 mm, KTL-coated, cl. F 900, with 4-fold bolting, with silt bucket made of recycled PP, RECYFIX NC X 100 0,5 m
Product description
RECYFIX NC X 100 - Sump unit made of recycled polypropylene, with edge frames made of galvanised steel, 4-sided preformed pipe connection element (on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX NC X 100, with ductile iron cover SW 100/6 mm, of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, with 4-fold bolting, load class A 15 - F 900 according to EN 1433, LxWxH 500x165x506 mm, item no. 12192
Packaging unit
24
