Article No. 12194
sump unit
for NW 150, with edge frames made of galvanised steel and with silt bucket made of recycled PP, with ductile iron cover 2x SW 67/ 10 mm, KTL-coated, cl. F 900, 4-fold bolting, 0.5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

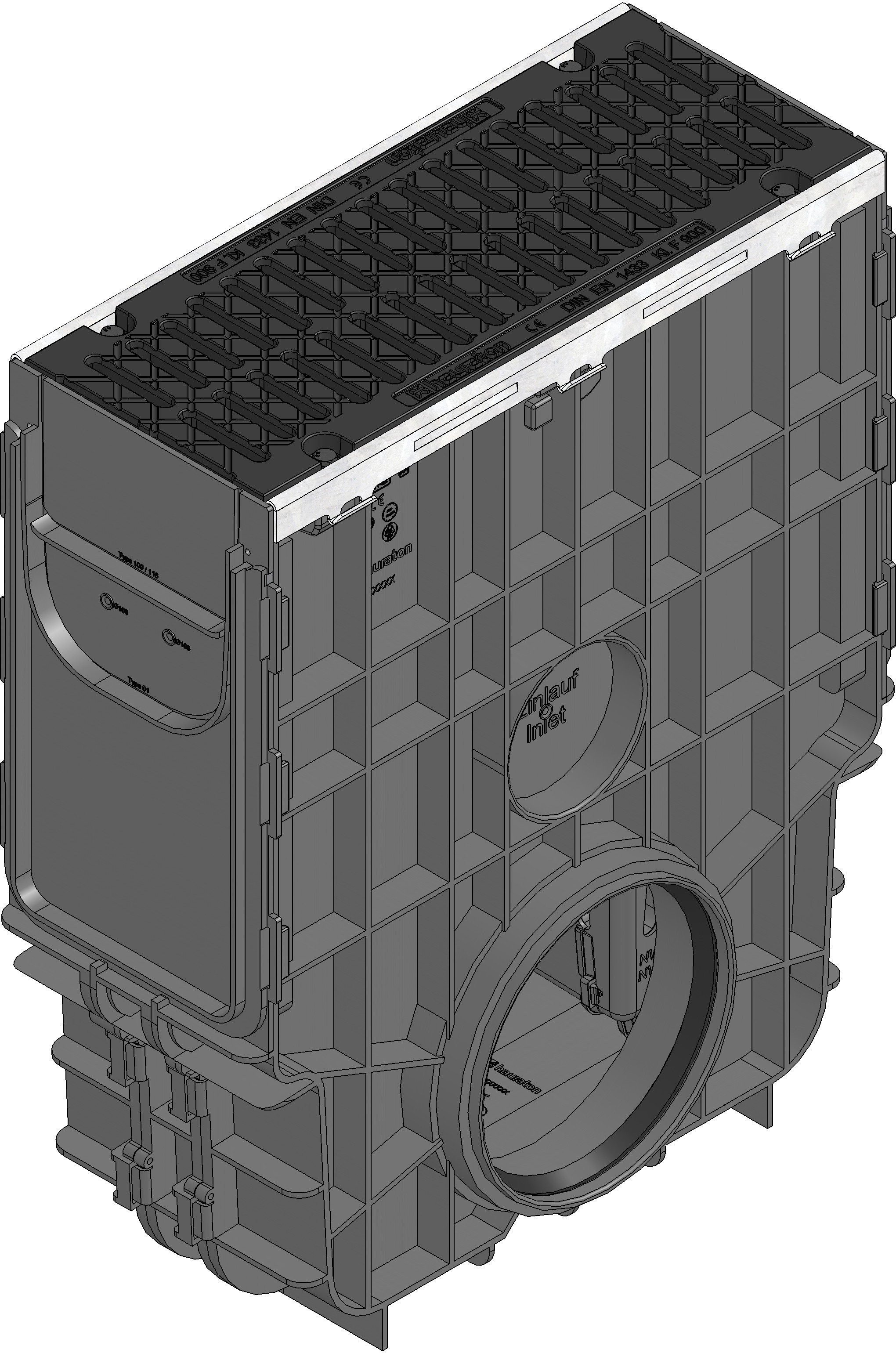

Product image
Technical drawing
Drawing (CAD)

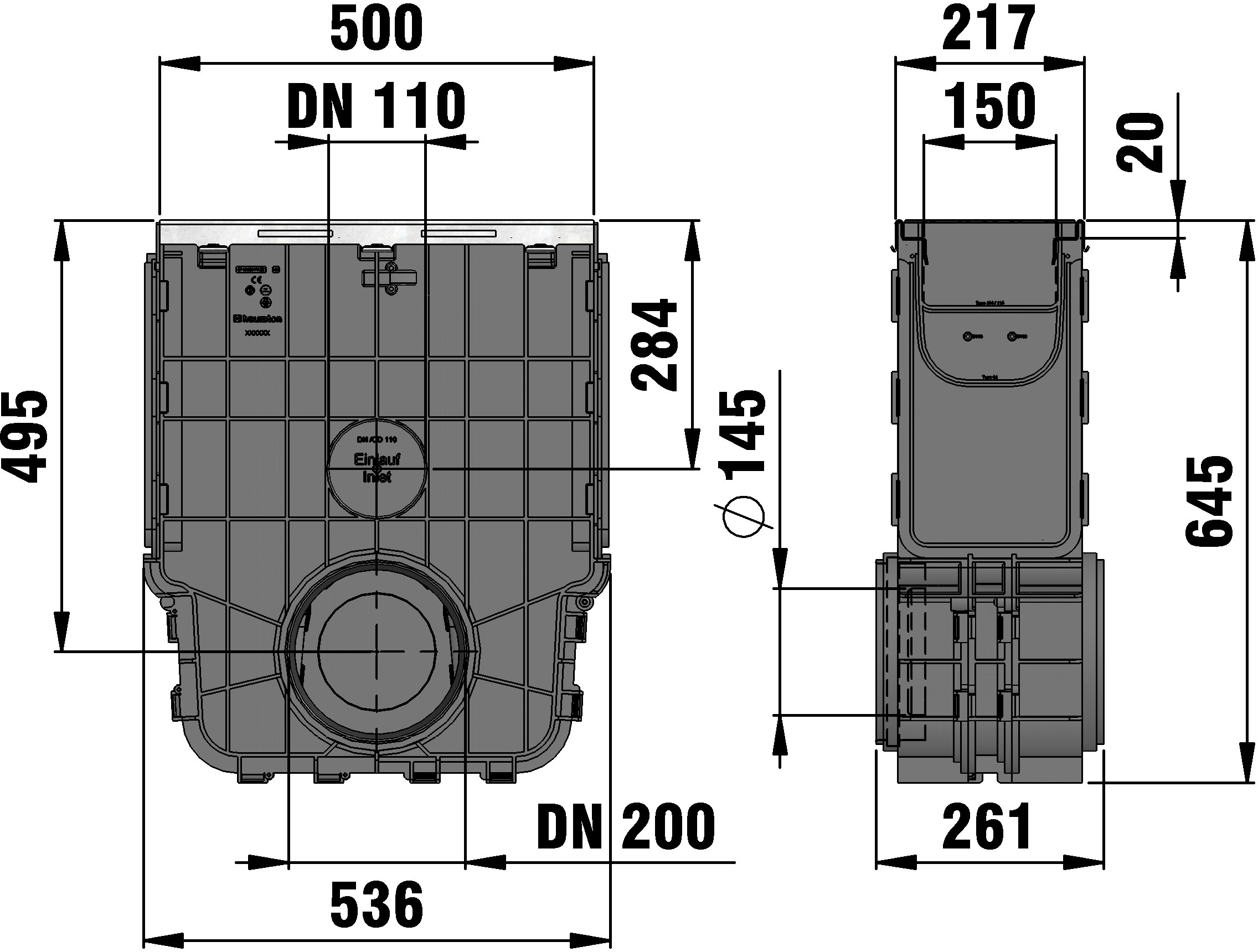

Drawing

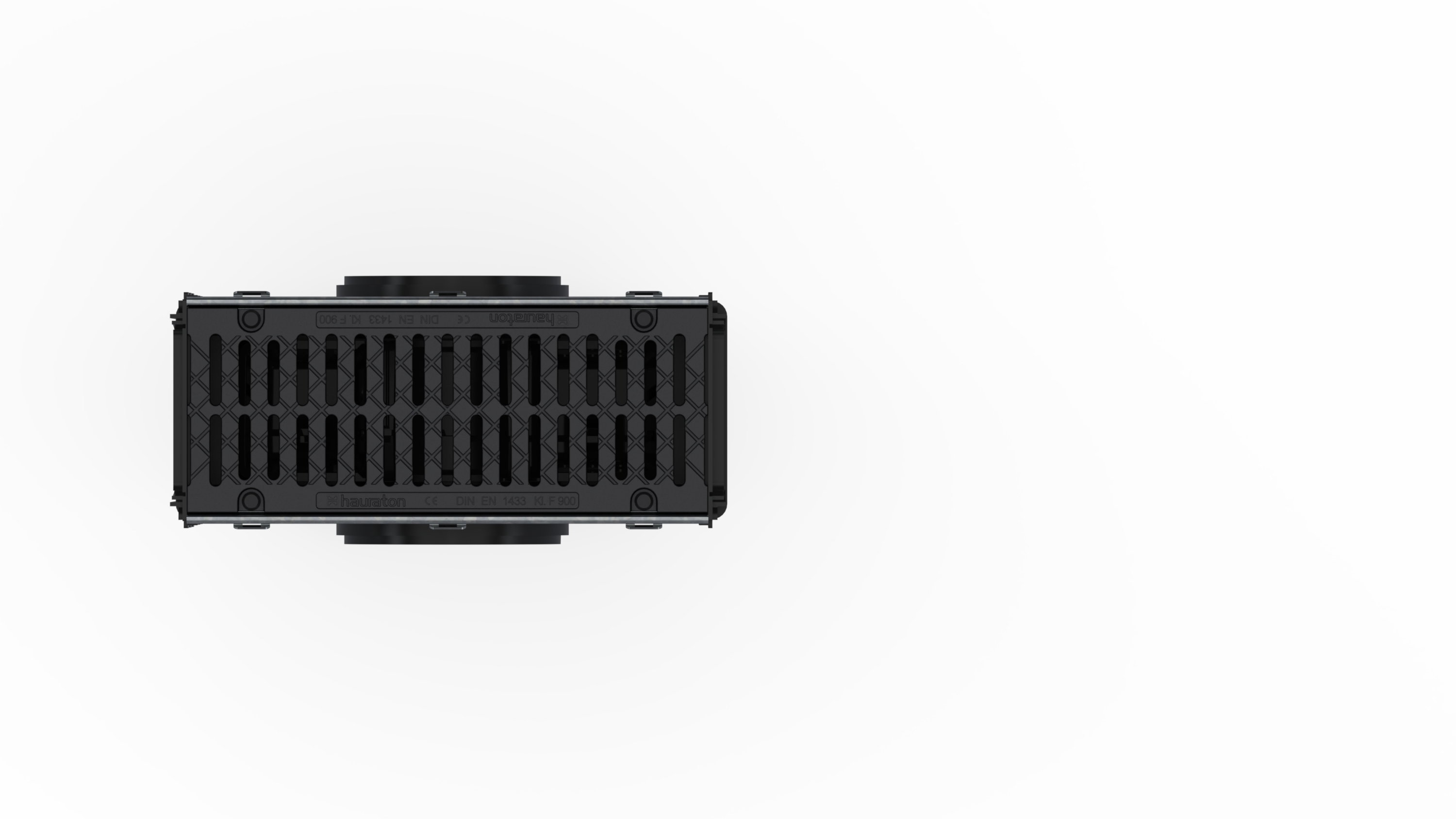

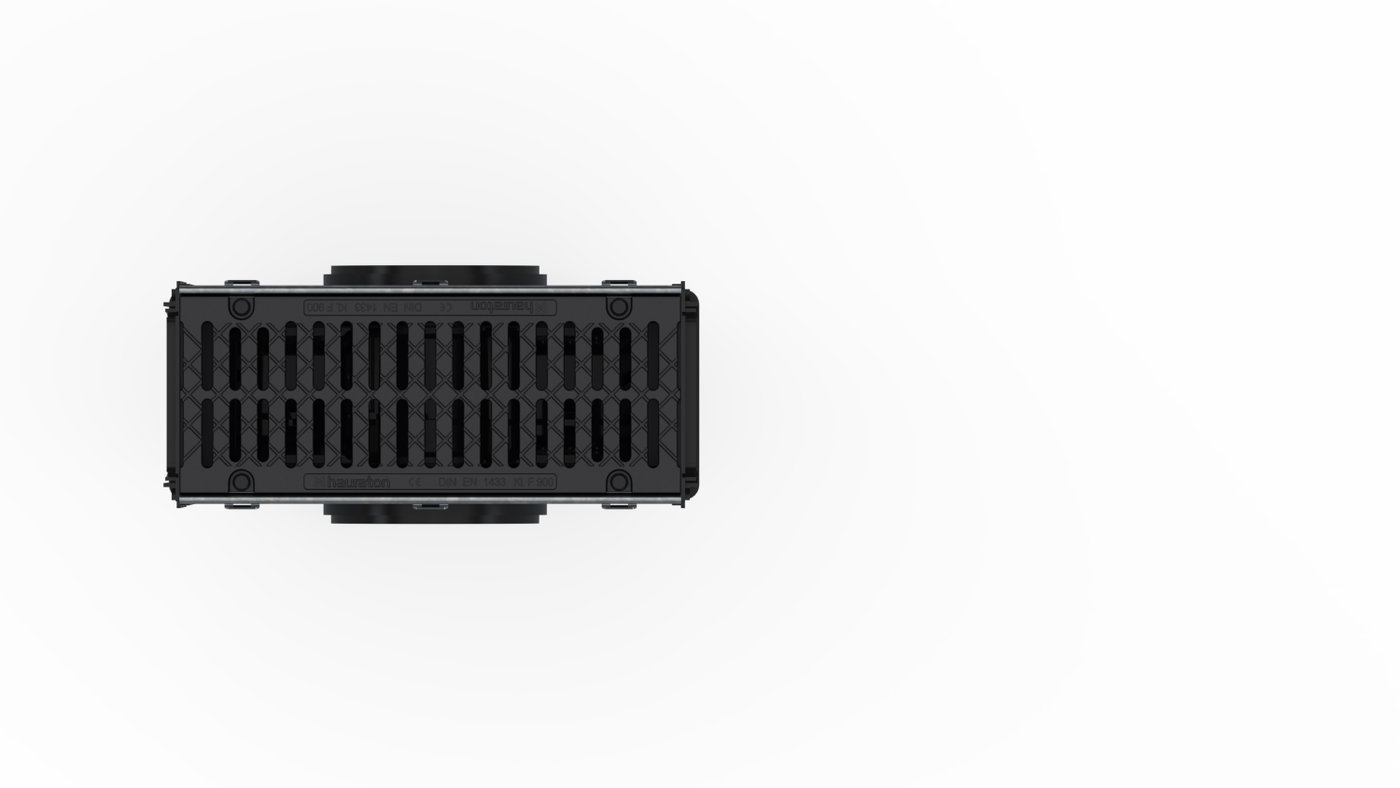

Top view
Technical information and metrics
Article No.
12194
Length
500 mm
Width
217 mm
Height
645 mm
Einlegetiefe
21 mm
Weight
17.12 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
449.0 cm²/m
Nominal size
150
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with ductile iron cover SW 2x 67/10 mm, KTL-coated, cl. F 900, with 4-fold bolting, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX NC X 150, 0.5 m
Product description
RECYFIX NC X 150 - Sump unit made of recycled polypropylene, with edge frames made of galvanised steel, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX NC X 150, with ductile iron cover 2x SW 67/10 mm, of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, with 4-fold bolting, load class A 15 - F 900 according to EN 1433, LxWxH 500x217x645 mm, item no. 12194
Packaging unit
8
