Article No. 42079
sump unit
for NW 100, with edge frames made of galvanised steel and silt bucket made of recycled PP, with GUGI-ductile iron mesh cover, MS 15/25 mm, black, class D 400, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

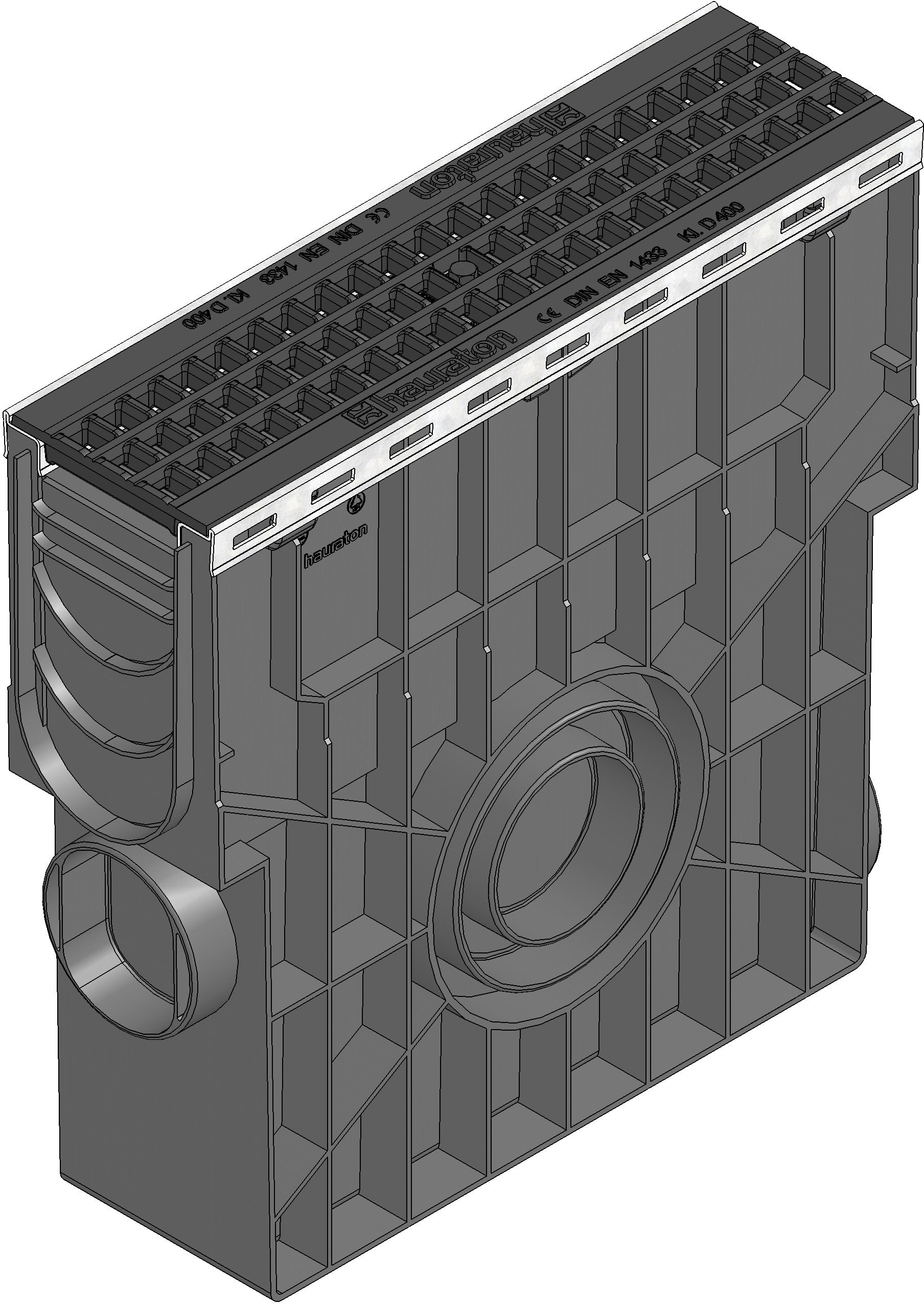

Product image
Technical drawing
Drawing (CAD)

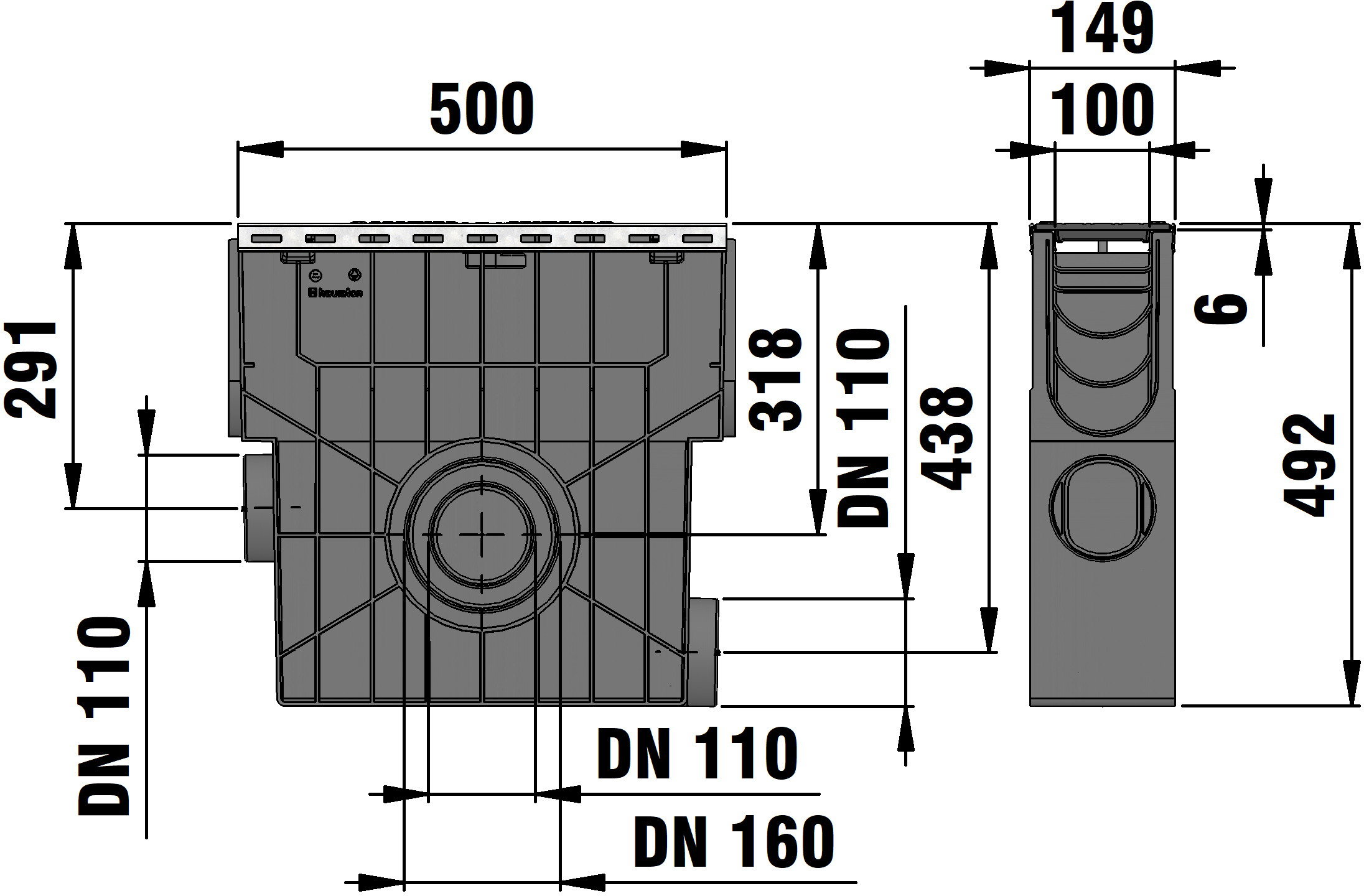

Drawing

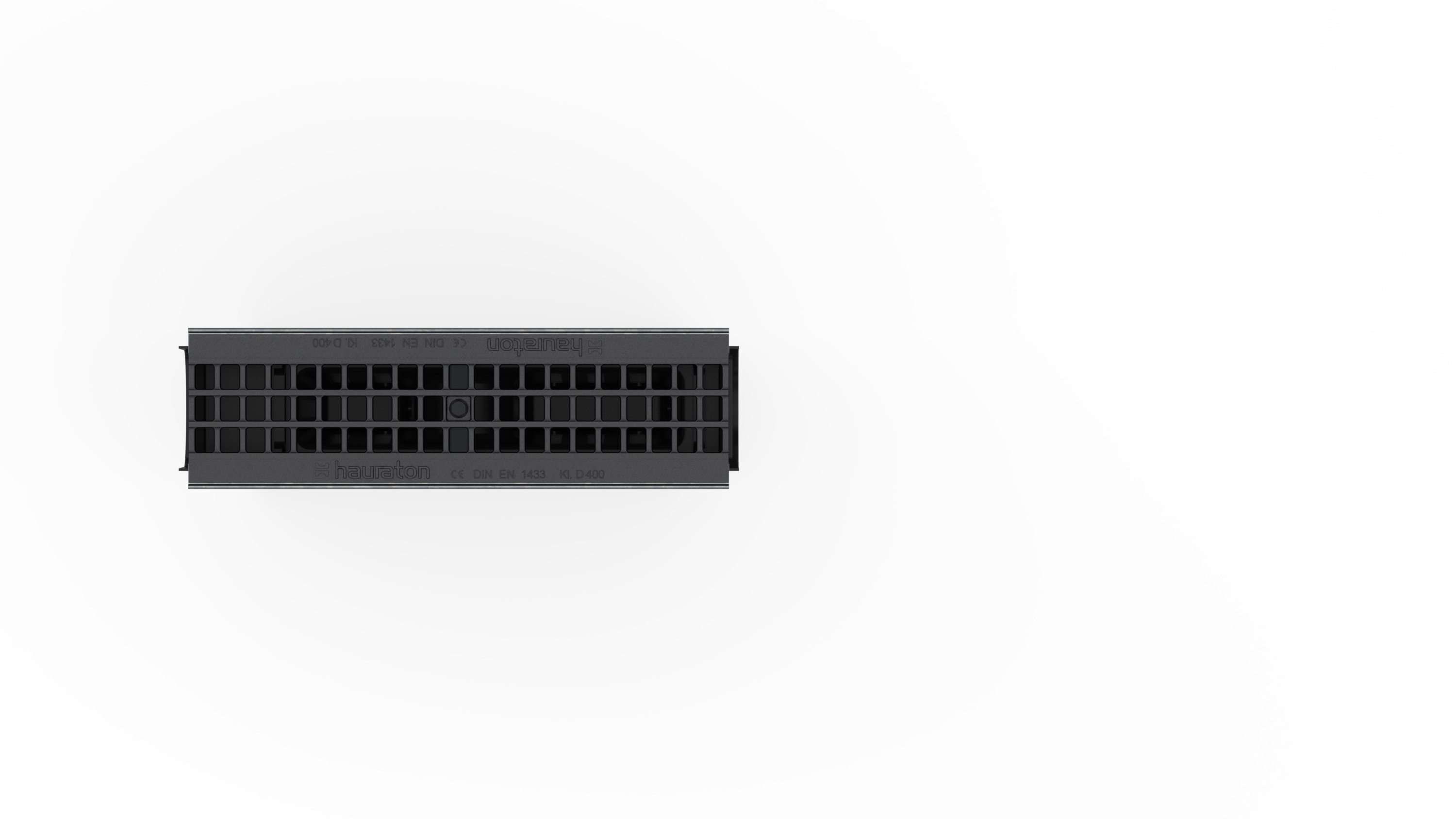

Top view
Technical information and metrics
Article No.
42079
Length
500 mm
Width
149 mm
Height
492 mm
Einlegetiefe
6 mm
Weight
8.21 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
440.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of galvanised steel, with GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. D 400, locked, with silt bucket made of recycled PP, RECYFIX PLUS X 100 0.5 m
Product description
RECYFIX PLUS X 100 - Sump unit made of recycled polypropylene, with edge frames made of galvanised steel, according to EN 1433, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS X 100, with GUGI-ductile iron cover MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x149x492 mm, item no. 42079
Packaging unit
28
