Article No. 7700
Trash boxes
for NW 100, with filter bucket for coarse particles, with GUGI-mesh cover MS 15/25, black, class B 125, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

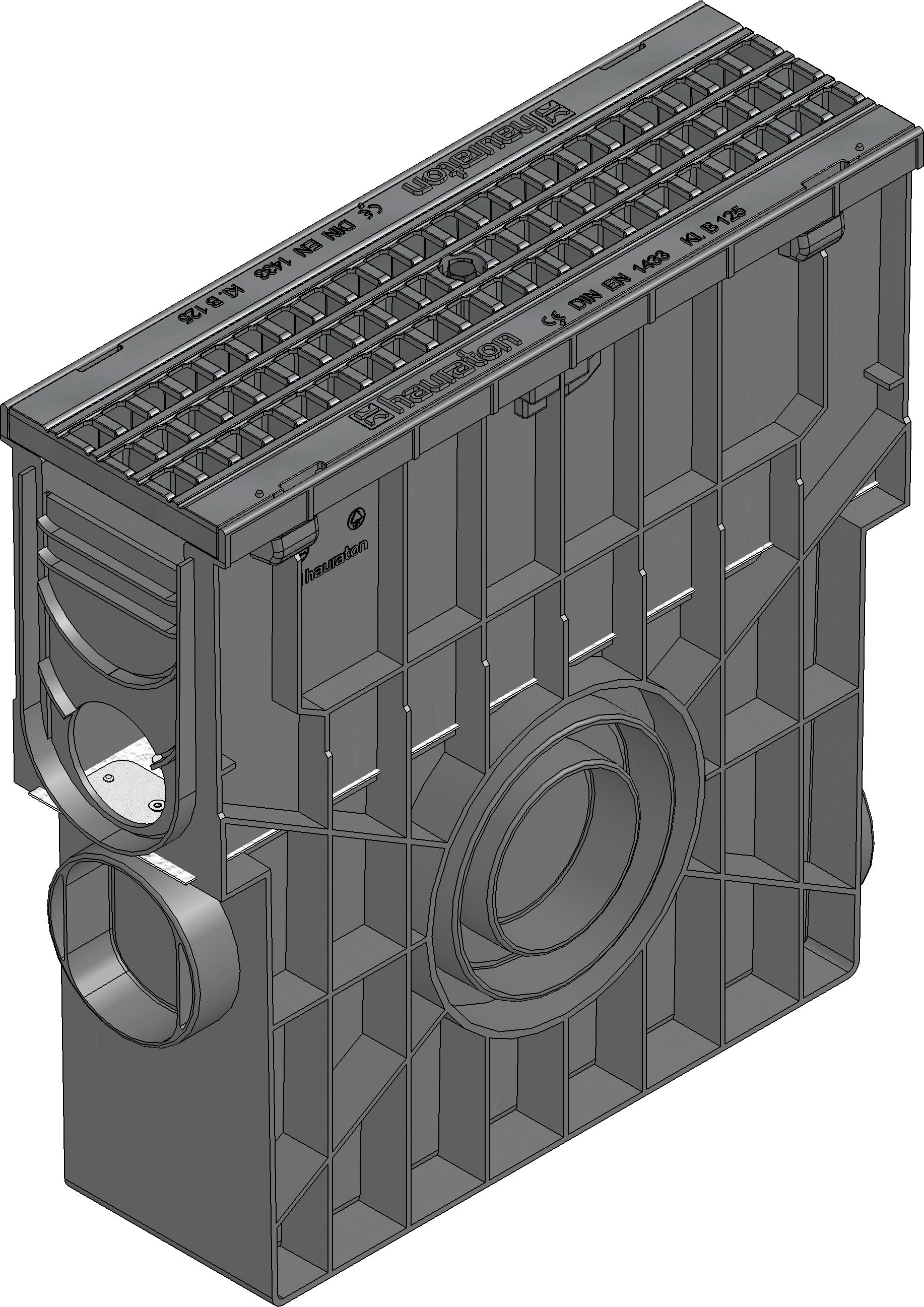

Product image
Technical drawing
Drawing (CAD)
Drawing

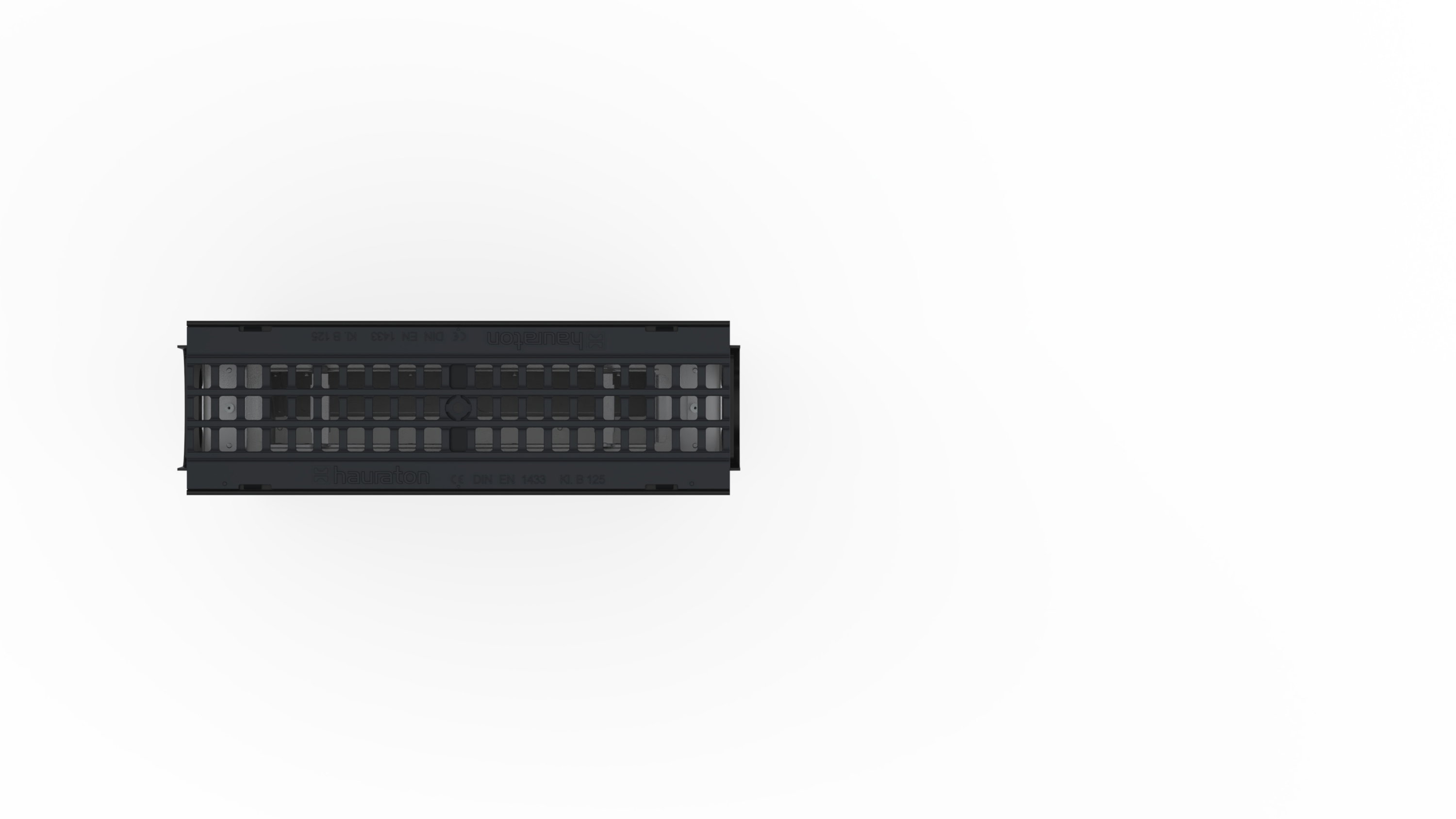

Top view
Technical information and metrics
Article No.
7700
Length
500 mm
Width
160 mm
Height
504 mm
Einlegetiefe
20 mm
Weight
5.28 kg
Material
Aluminium, Galvanised steel, Mesh fabric, recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Sales text
Sump unit with GUGI-mesh cover made of recycled PP, MS 15/25 mm, black, cl. B 125, locked, with filter bucket for coarse particles , SPORTFIX CLEAN 100, 0.5 m
Product description
SPORTFIX CLEAN 100 - Sump unit made of recycled polypropylene, 4-sided preformed pipe connection element (on the front side DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 100, with GUGI-mesh cover MS 15/25 mm, made of fibre-reinforced polyamide, black, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x160x504 mm, item no. 7700
Packaging unit
28
