Article No. 40259
Trash boxes
for NW 100, with silt bucket made of recycled PP, with GUGI-Ductile iron mesh cover MS 15/25 mm, black, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

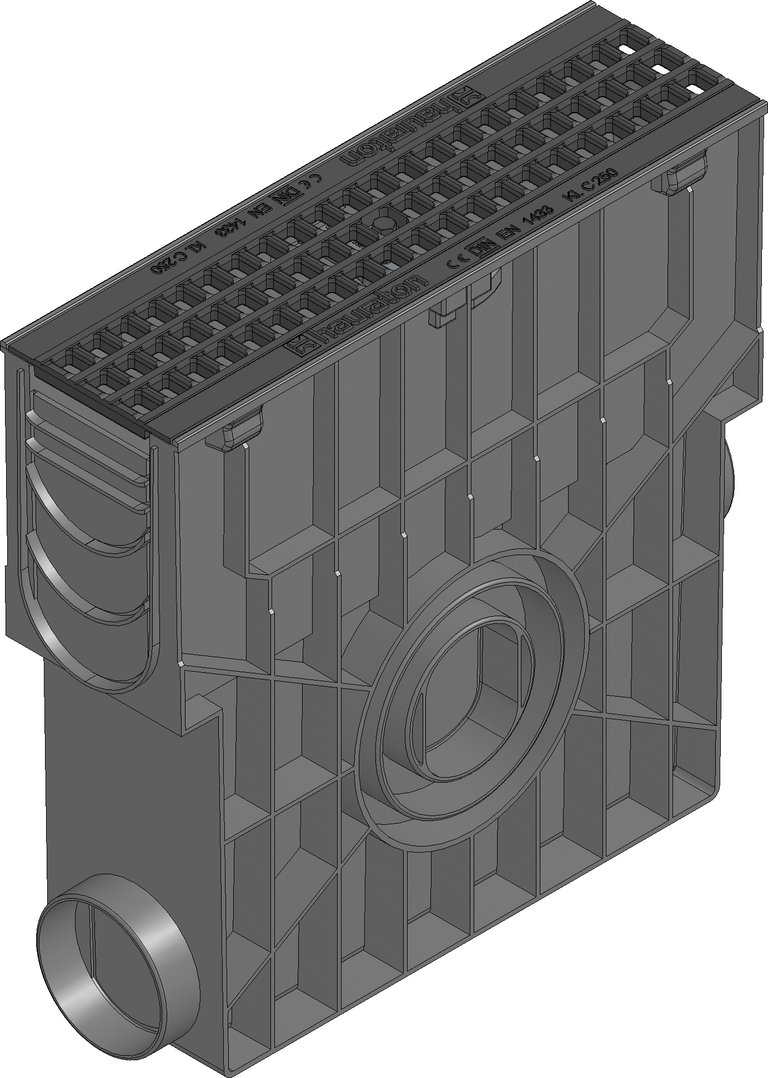

Product image
Technical drawing
Drawing
Drawing (CAD)

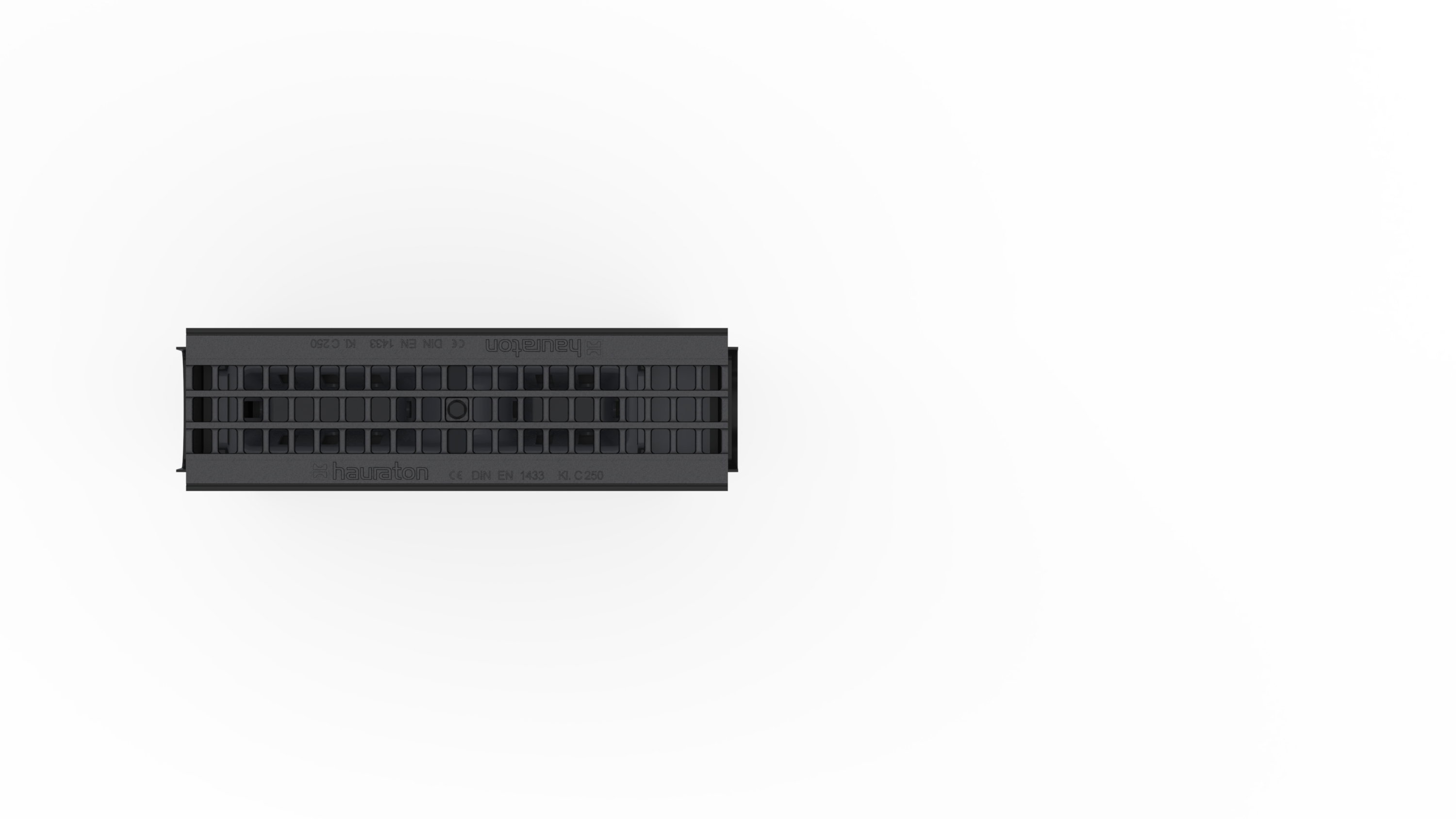

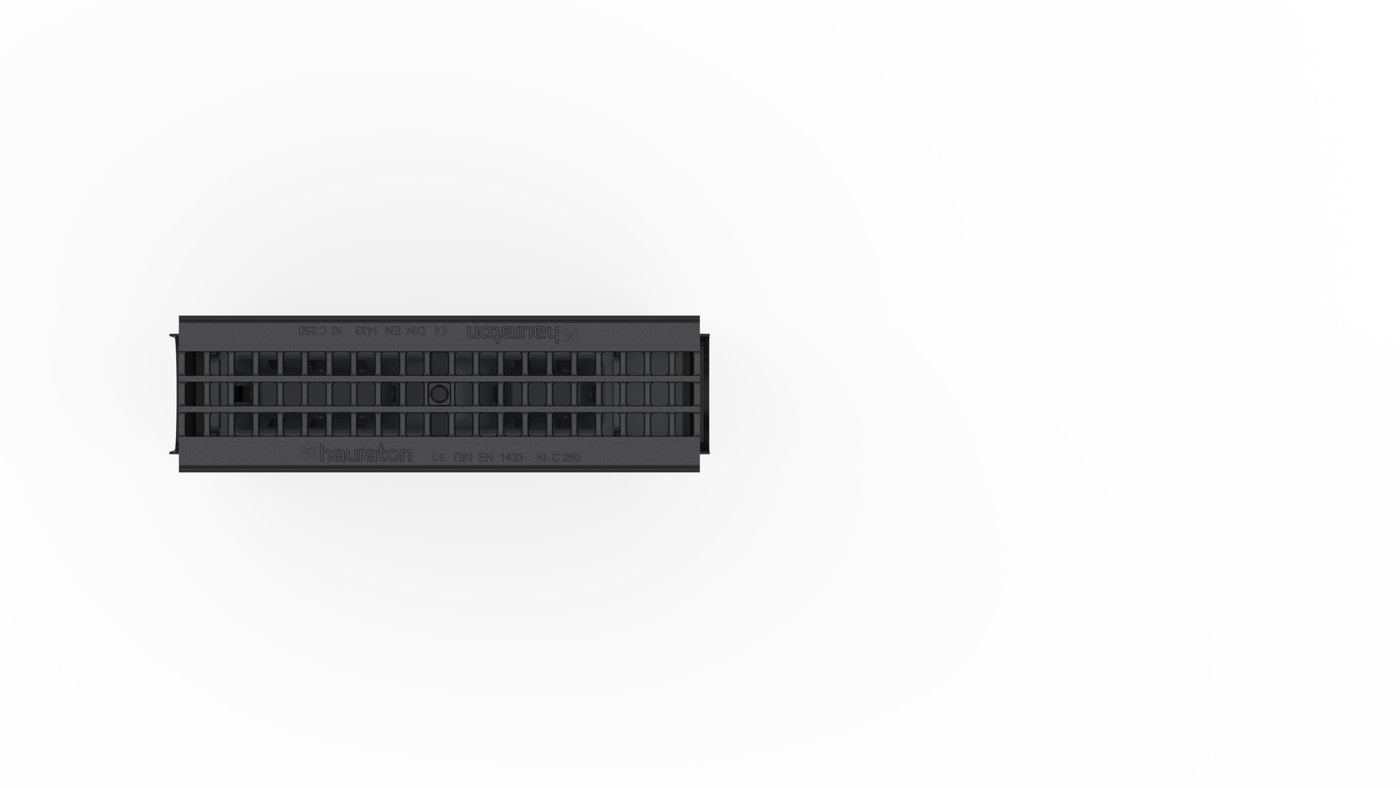

Top view
Technical information and metrics
Article No.
40259
Length
500 mm
Width
150 mm
Height
488 mm
Einlegetiefe
6 mm
Weight
7.16 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
453.0 cm²/m
Nominal size
100
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, RECYFIX STANDARD 100, 0.5 m
Product description
RECYFIX STANDARD 100 - Sump unit made of recycled polypropylene, according to EN 1433, 4-sided connection possibility (front side DN /OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX STANDARD 100, with GUGI-ductile iron mesh cover MS 15/25 mm made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250, LxWxH 500x150x488 mm, item no. 40259
Packaging unit
28
