Article No. 47059
sump unit
for NW 100, with integrated edge frames and silt bucket made of recycled PP, with mesh cover, MS 30/10 mm, cl. B 125, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

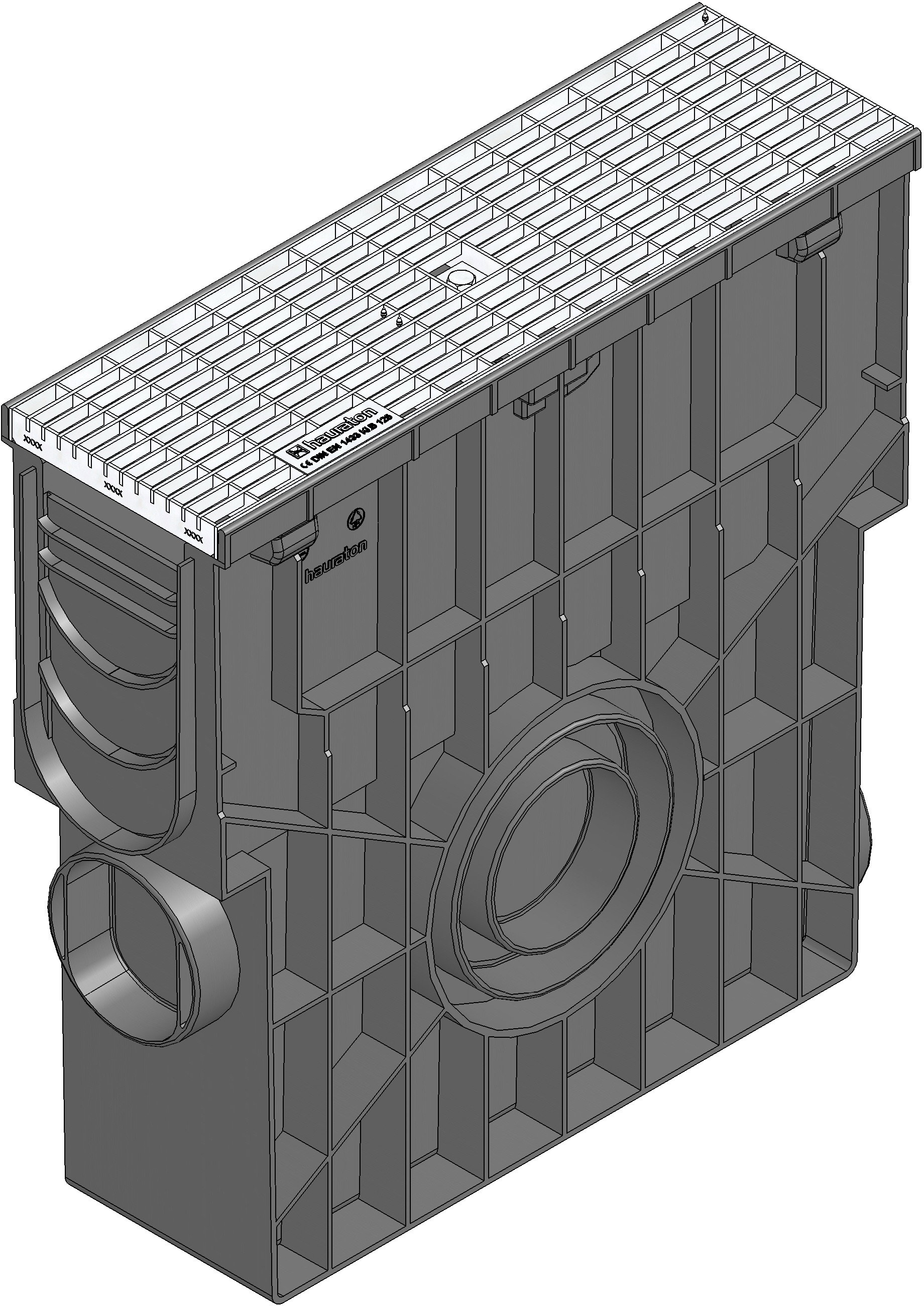

Product image
Technical drawing
Drawing (CAD)

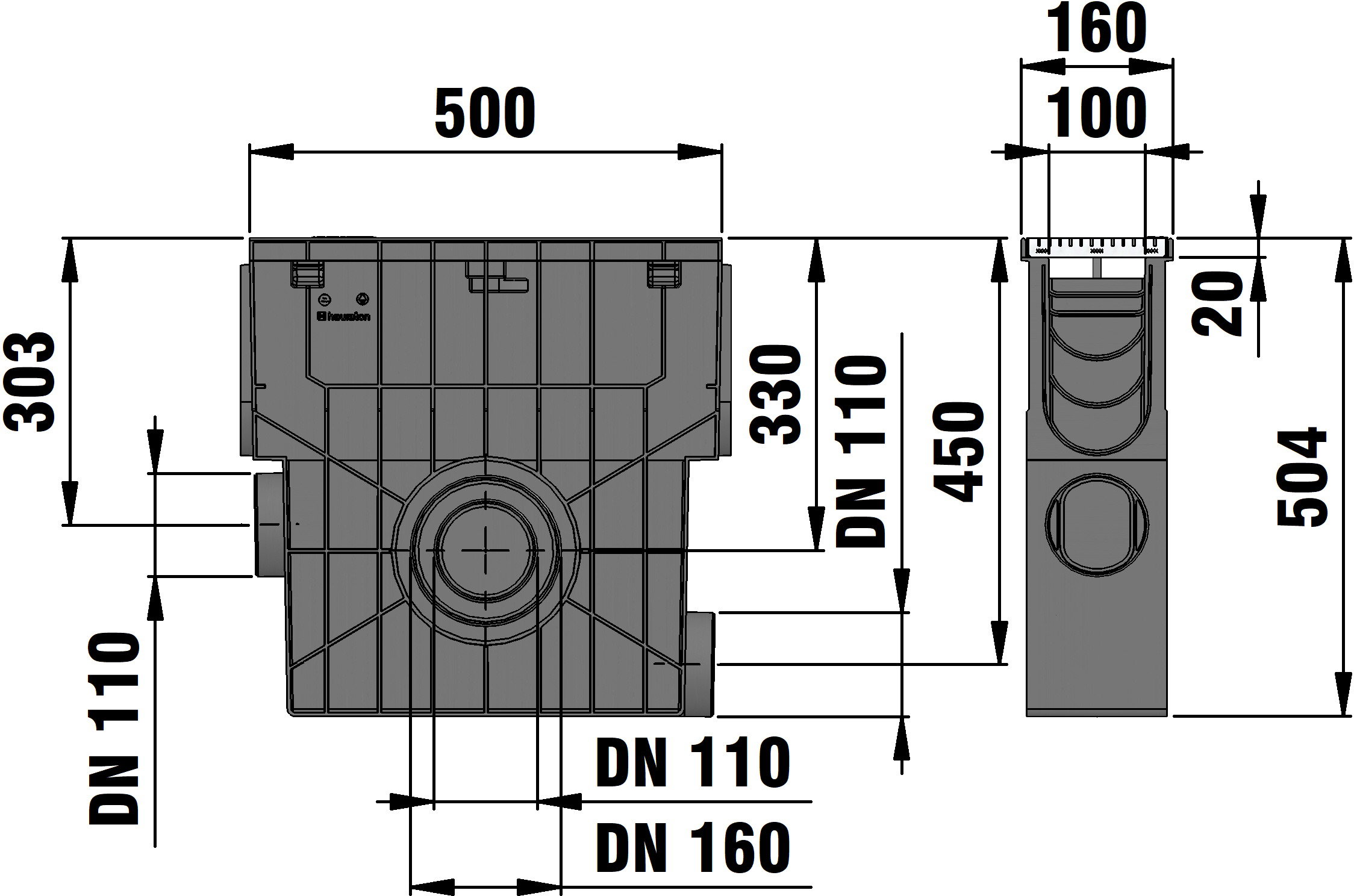

Drawing

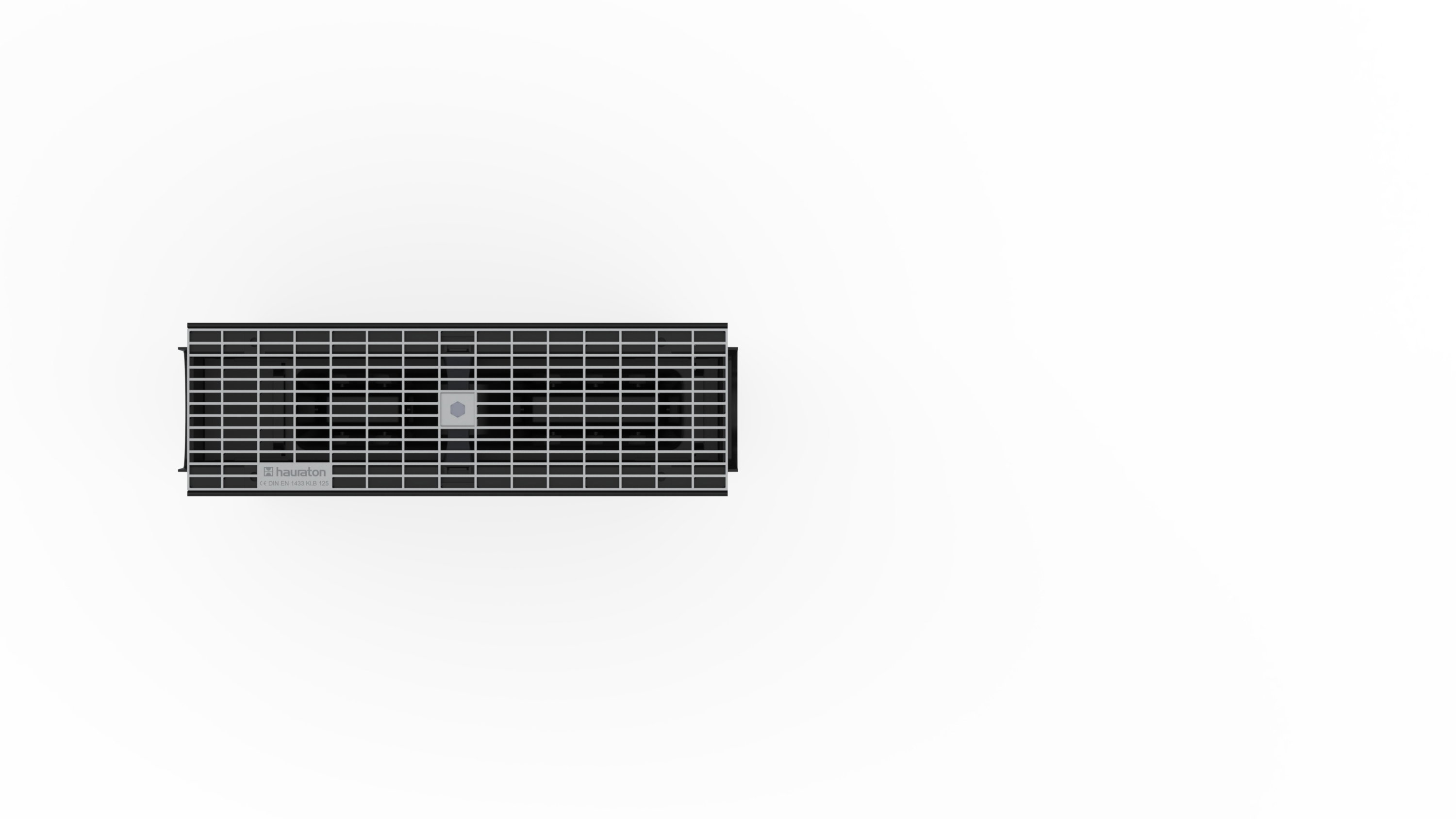

Top view
Technical information and metrics
Article No.
47059
Length
500 mm
Width
160 mm
Height
504 mm
Einlegetiefe
20 mm
Weight
6.20 kg
Material
hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
1080.0 cm²/m
Nominal size
100
Material cover
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with mesh cover MS 30/10 mm, stainless steel, cl. B 125, locked, with silt bucket made of recycled PP, RECYFIX PRO 100, 0.5 m
Product description
RECYFIX PRO 100 - Sump unit made of recycled polypropylene, according to EN 1433, with integrated edge frames, 4-sided preformed pipe connection element (on the front sides DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 100, with mesh cover MS 30/10 mm, stainless steel CNS 1.4301, with locking mechanism against vandalism, load class A 15 - B 125 according to EN 1433, LxWxH 500x160x504 mm, item no. 47059
Packaging unit
28
