Article No. 40029
Trash boxes
for NW 150, with silt bucket made of recycled polypropylene, with FIBRETEC design slotted cover SW 150/9 mm, in the colour black, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

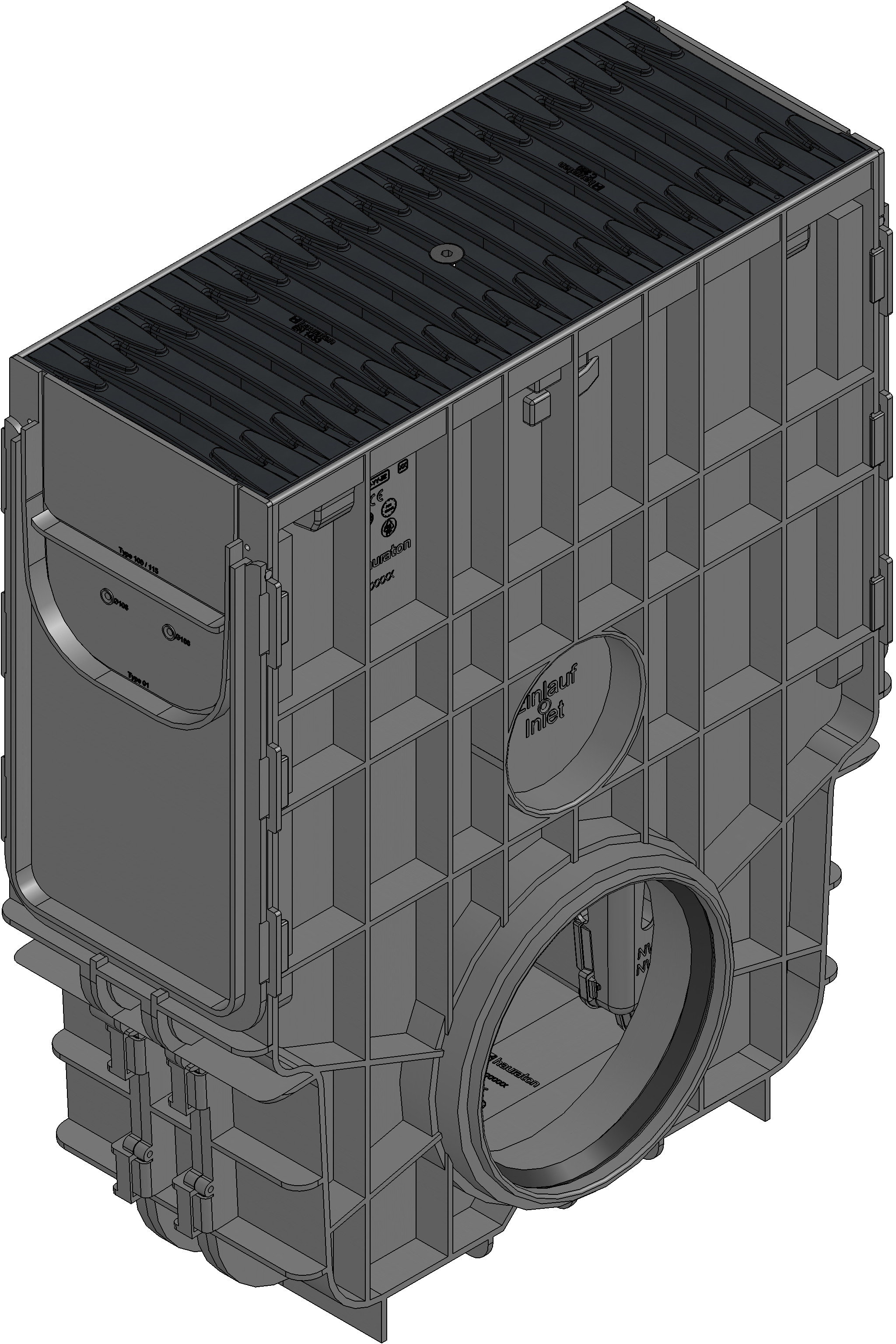

Product image
Technical drawing
Drawing (CAD)

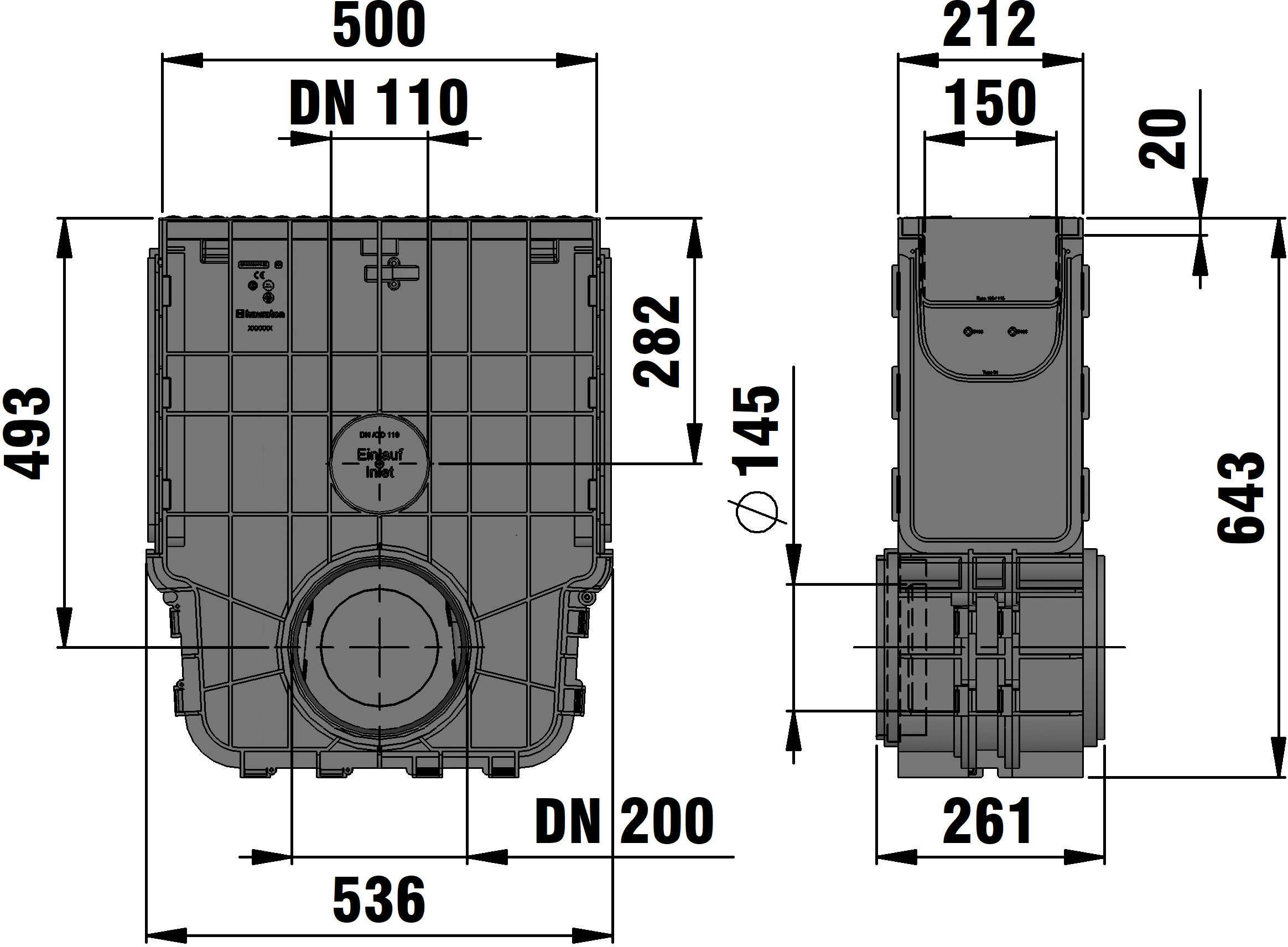

Drawing

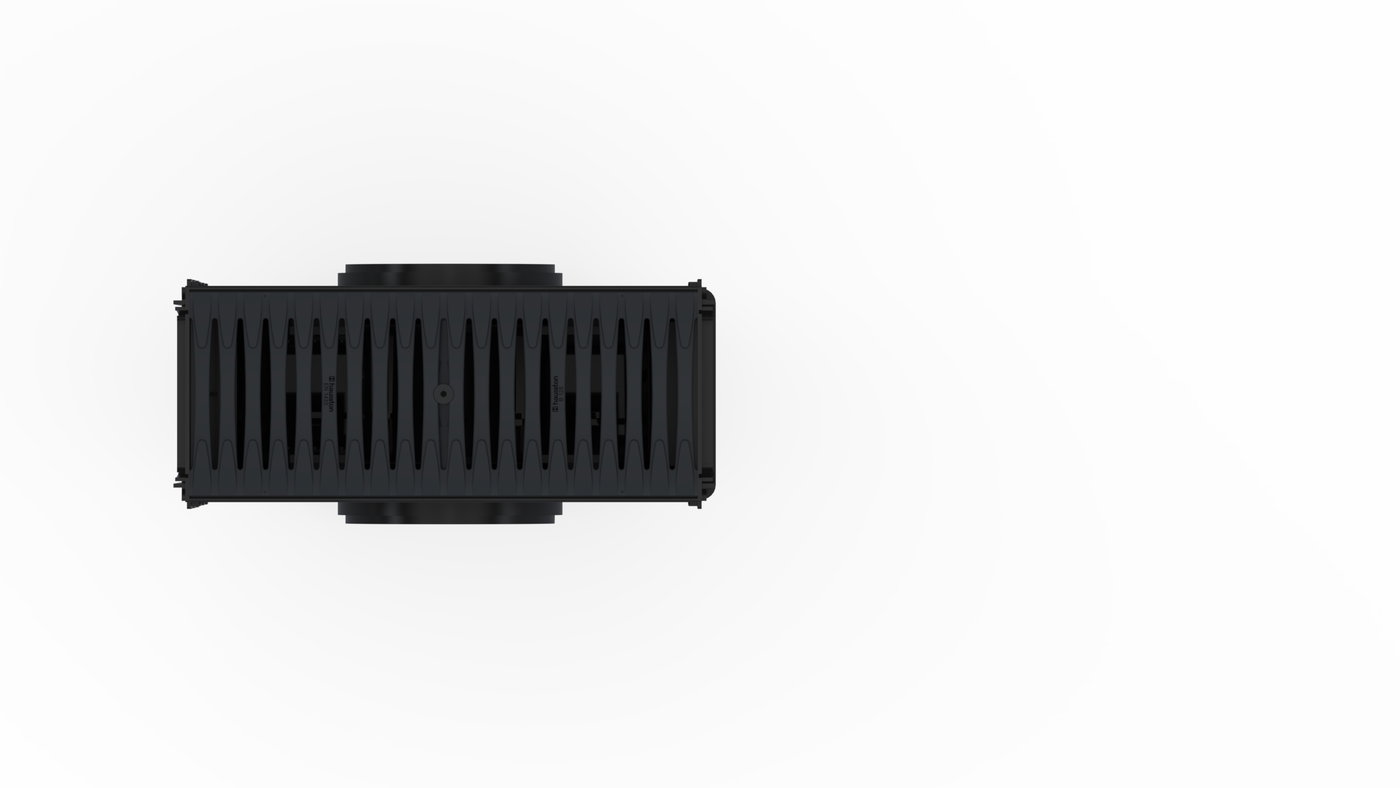

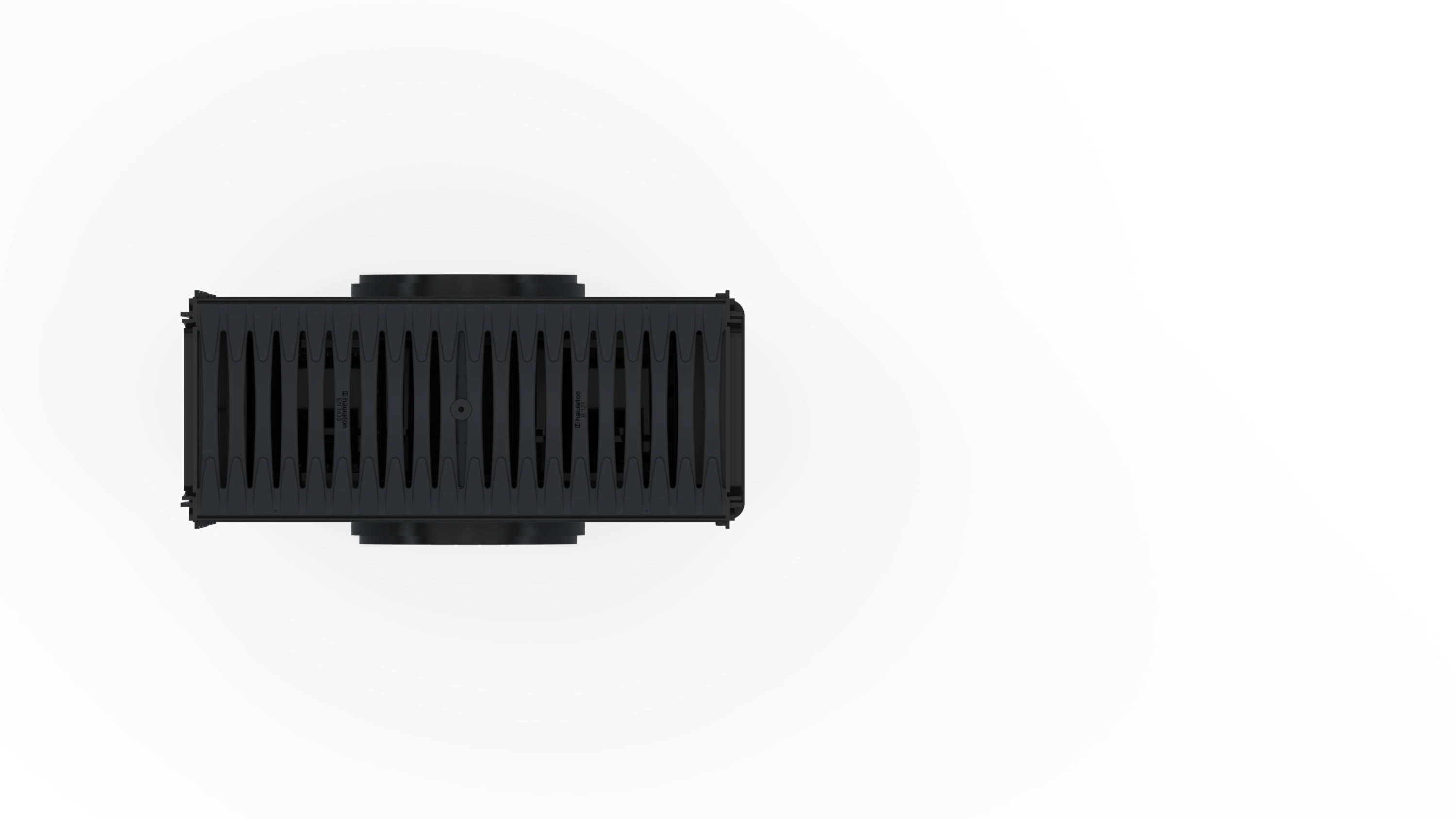

Top view
Technical information and metrics
Article No.
40029
Length
500 mm
Width
212 mm
Height
643 mm
Einlegetiefe
20 mm
Weight
9.18 kg
Material
recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
500.0 cm²/m
Nominal size
150
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with FIBRETEC design slotted cover SW 150/9 mm, black, cl. C 250 , locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PRO 150, 0.5 m
Product description
RECYFIX PRO 150 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 150, with FIBRETEC design slotted cover SW 150/9 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x212x643 mm, item no. 40029
Packaging unit
8
