Article No. 40007
sump unit
for NW 150, with silt bucket made of recycled PP, with ductile iron cover SW 130/6 mm, black, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

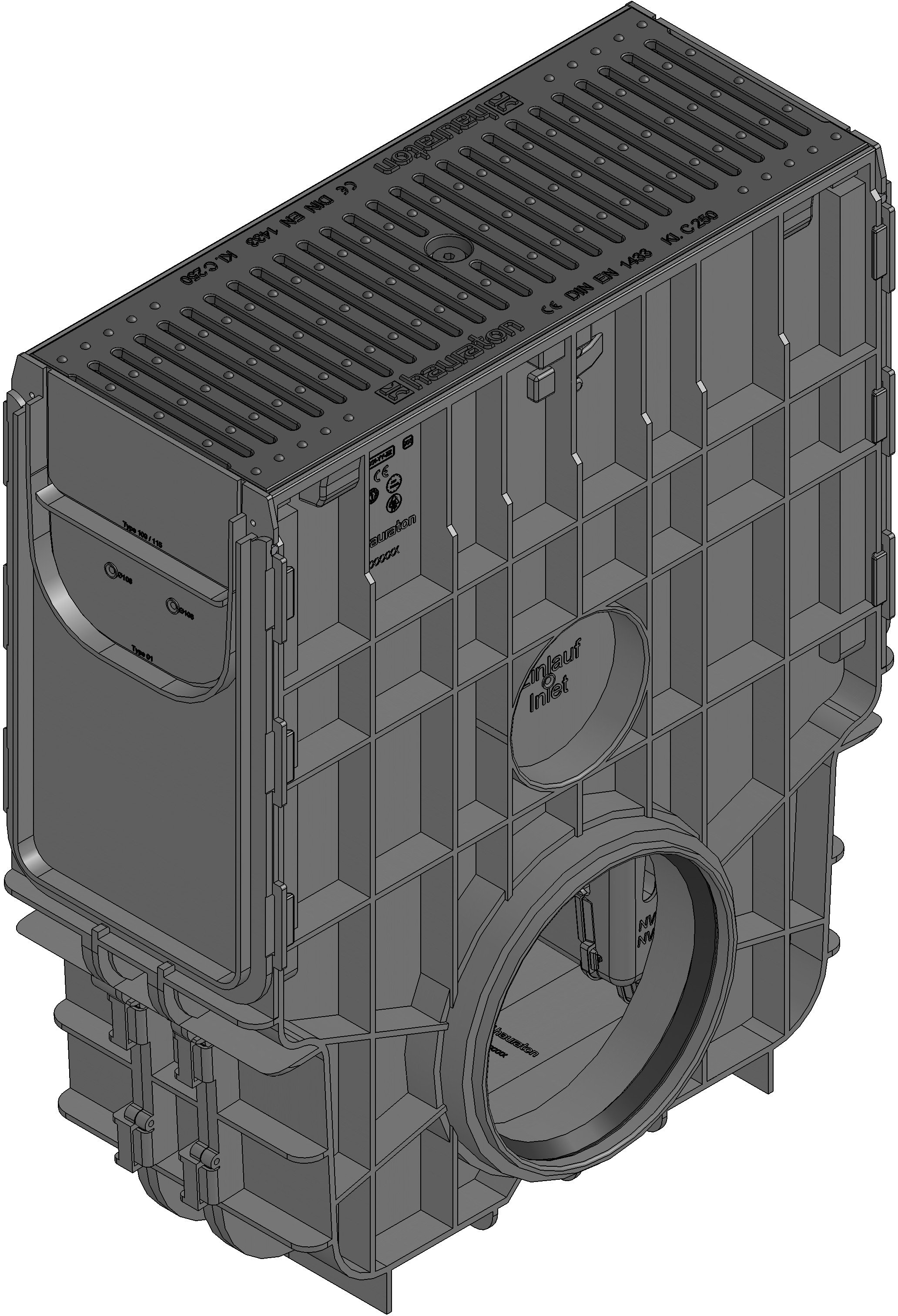

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40007
Length
500 mm
Width
216 mm
Height
627 mm
Einlegetiefe
6 mm
Weight
12.32 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
400.0 cm²/m
Nominal size
150
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with ductile iron cover SW 130/6 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX STANDARD 150, 0.5 m
Product description
RECYFIX STANDARD 150 - Sump unit made of recycled polypropylene, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX STANDARD 150, with ductile iron cover SW 130/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x216x627 mm, item no. 40007
Packaging unit
8
