Article No. 33511
Trash boxes
for NW 200 + 300, with galvanised steel frame, with ductile iron cover SW 3 x 140/20 mm, black, class F 900, 0,51 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

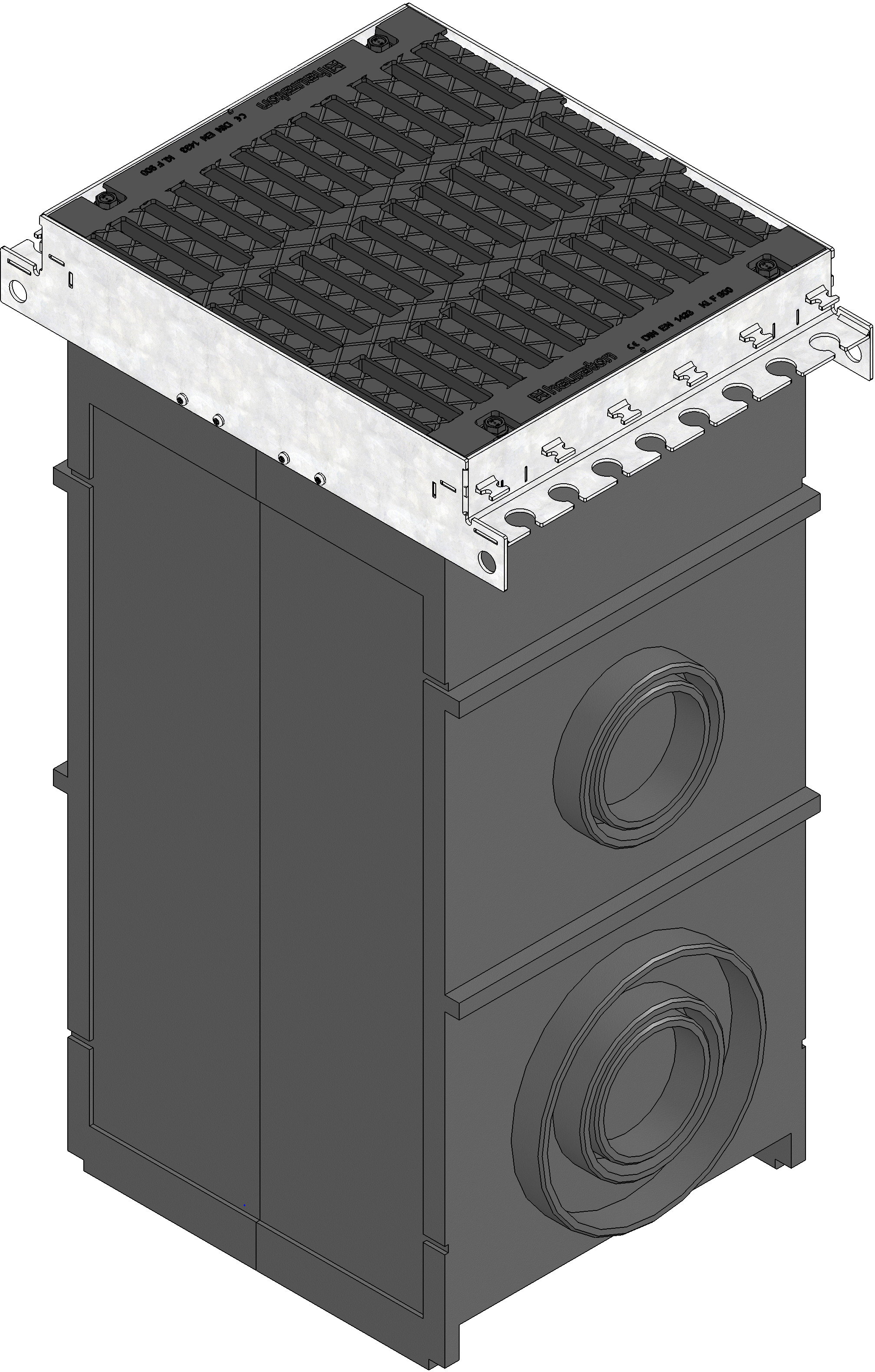

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33511
Weight
101.84 kg
Nominal size
200, 300
Regelwerke
EN 1433, DIN 19580
Vertriebstext
Trash box with galvanised steel frame, with ductile iron cover SW 3x 140/20 mm, black, cl. F 900, RECYFIX MONOTEC ULTRA 200 + 300
Produktbeschreibung
RECYFIX MONOTEC ULTRA 200 + 300 -trash box according to to EN 1433, CE compliant, with galvanised steel frame, with ductile iron cover made of spheroidal ductile iron GJS 500-7, SW 3 x 140/20 mm, black, loading capacity from A 15 - F 900, fourfold locking, optional connection on two sides with variable PVC-U sockets DN/OD 160, DN/OD 200, DN/OD 315, for connection of RECYFIX MONOTEC ULTRA 200 + 300-channels, L/W/H 510x590x1116 mm, item no. 33511
Verpackungseinheit
-
Declaration of Performance
