Article No. 10488
Trash boxes
for NW 200, for system size 3200, 2-part, with edge frames made of galvanised steel, with PVC-U socket DN/OD 200, with connection plate, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

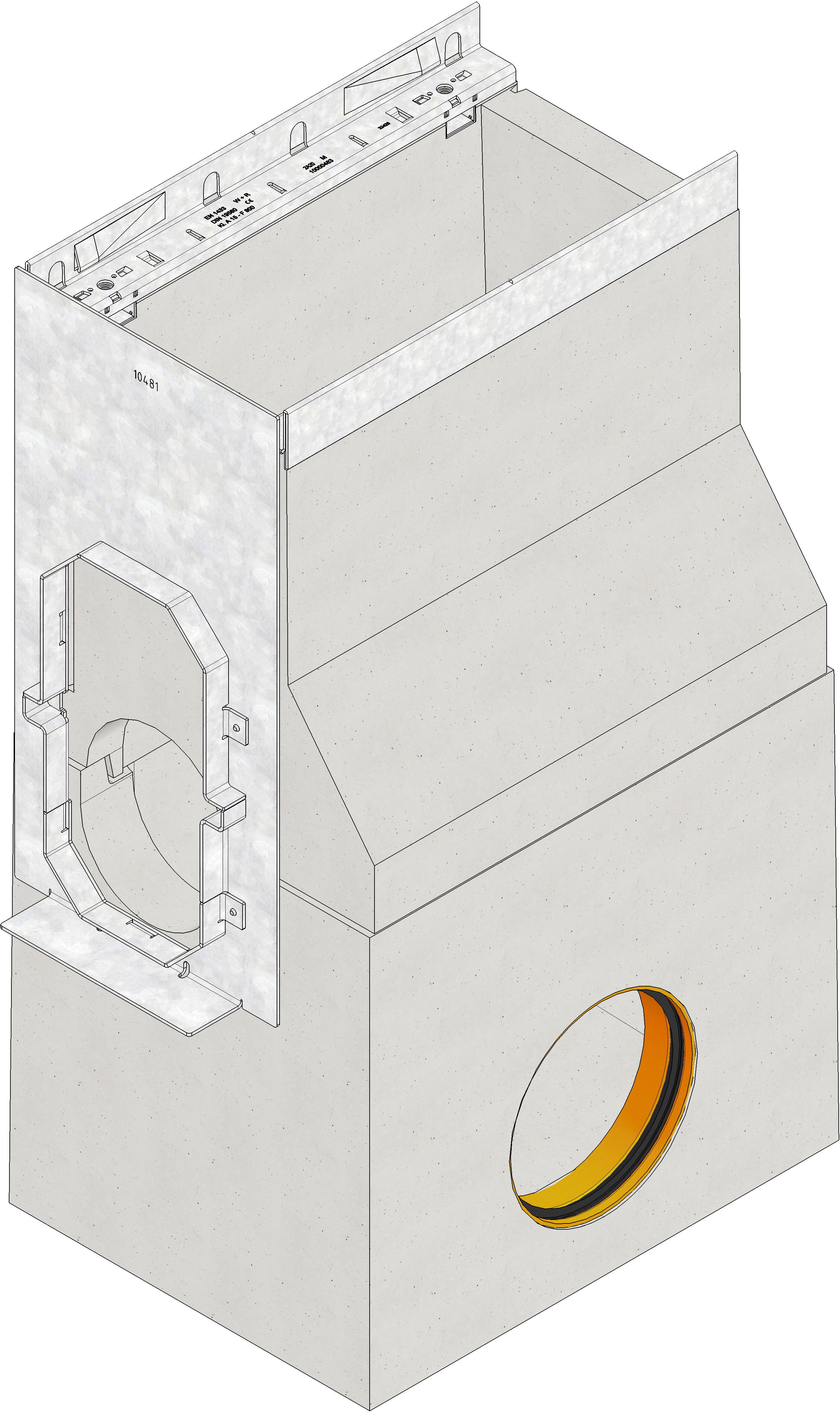

Product image

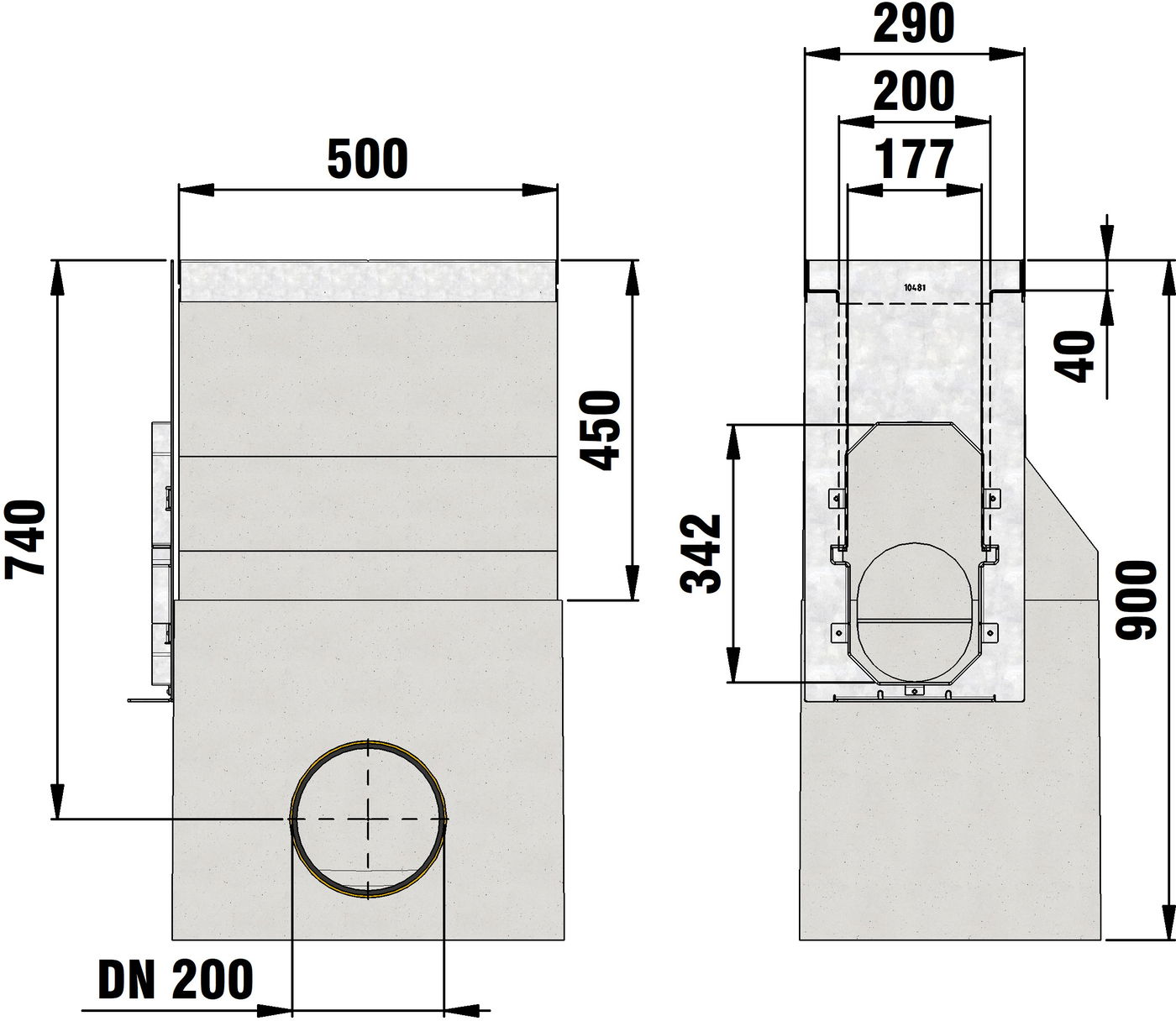

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10488
Length
500 mm
Width
290 mm
Height
900 mm
Weight
189.89 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating, strip galvanized steel
Nominal size
200, 3000
Sales text
Sump unit with edge frames made of galvanised steel, 2-part, with PVC-U socket DN/OD 200, for connection of RECYFIX HICAP 3200, with connecting plate, galvanised, RECYFIX HICAP 3200, 0.5 m
Product description
RECYFIX HICAP 3200 - Sump unit, 2-part, made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel, with boltless quick-locking system SIDE-LOCK, 4-fold locking, one-sided connection possibility (on the side) with integrated PVC-U socket DN/OD 200, with connecting plate, galvanised, for connection of RECYFIX HICAP 3200, LxWxH 500x290x900 mm, item no. 10488
Packaging unit
-
