Article No. 30014
Trash boxes
for NW 200, 2-part, with all-round edge frame made of galvanised steel and silt bucket made of galvanised steel, with outlet Ø 276 mm in top part, with ductile iron cover 2x SW 136/20 mm, black, class F 900, 0.51 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

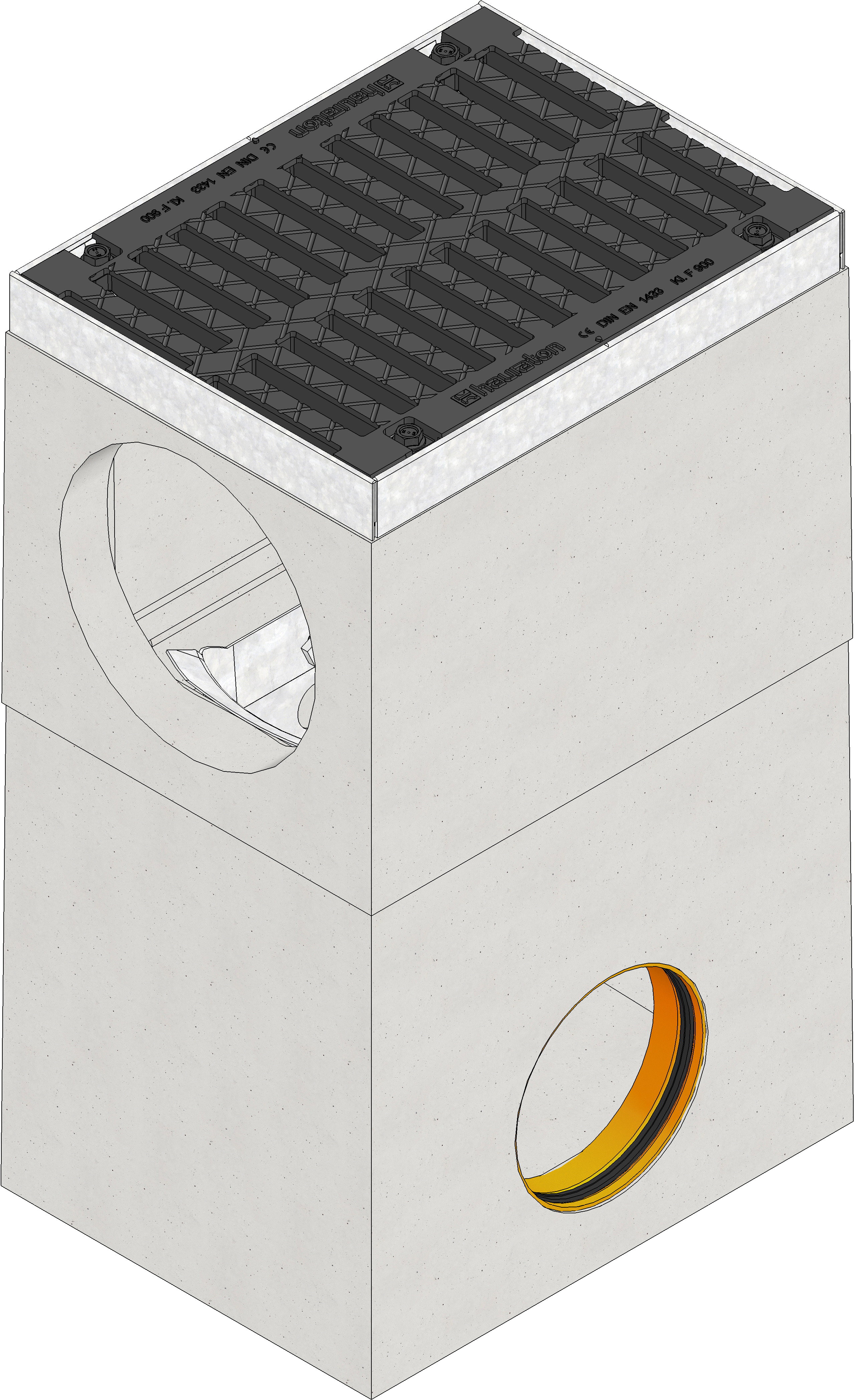

Product image
Technical drawing
Drawing (CAD)
Drawing

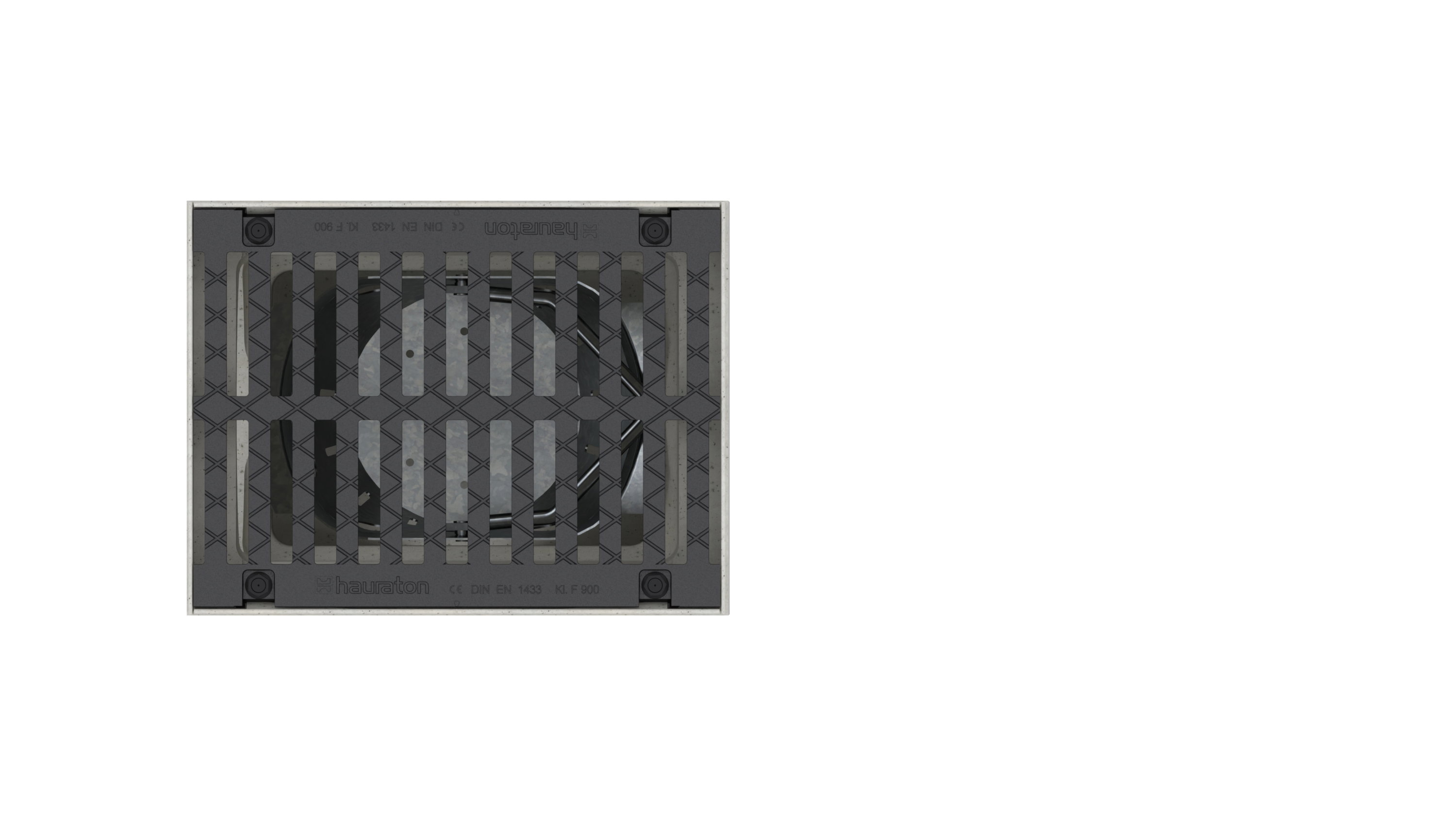

Top view
Technical information and metrics
Article No.
30014
Length
510 mm
Width
390 mm
Height
850 mm
Einlegetiefe
40 mm
Weight
196.49 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete, Standard concrete acc. norm, Steel 8.8 zinc-laminated black, Steel with zinc-magnesium coating
Intake cross-section
1334.0 cm²/m
Nominal size
200
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with all-round edge frame made of galvanised steel, with silt bucket made of galvanised steel, with outlet Ø 276 mm in top part for connection of channel, with ductile iron cover 2x SW 136/20 mm, black, cl. F 900, RECYFIX MONOTEC ULT
Product description
RECYFIX MONOTEC ULTRA 200 - Sump unit, 2-part, made of fibre-reinforced concrete, with outlet Ø 276 mm in top part for connection of channel RECYFIX MONOTEC ULTRA 200, CE compliant, with all-round edge frame made of galvanised steel one-sided connection possibility with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, with ductile iron cover 2x SW 136/20 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, load class A 15 - F 900 according to EN 1433, LxWxH 510x390x850 mm, item no. 30014
Packaging unit
-
Declaration of Performance
