Article No. 40056
sump unit
for NW 200, with silt bucket made of recycled PP, with ductile iron cover 2x SW 85/18 mm, black, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

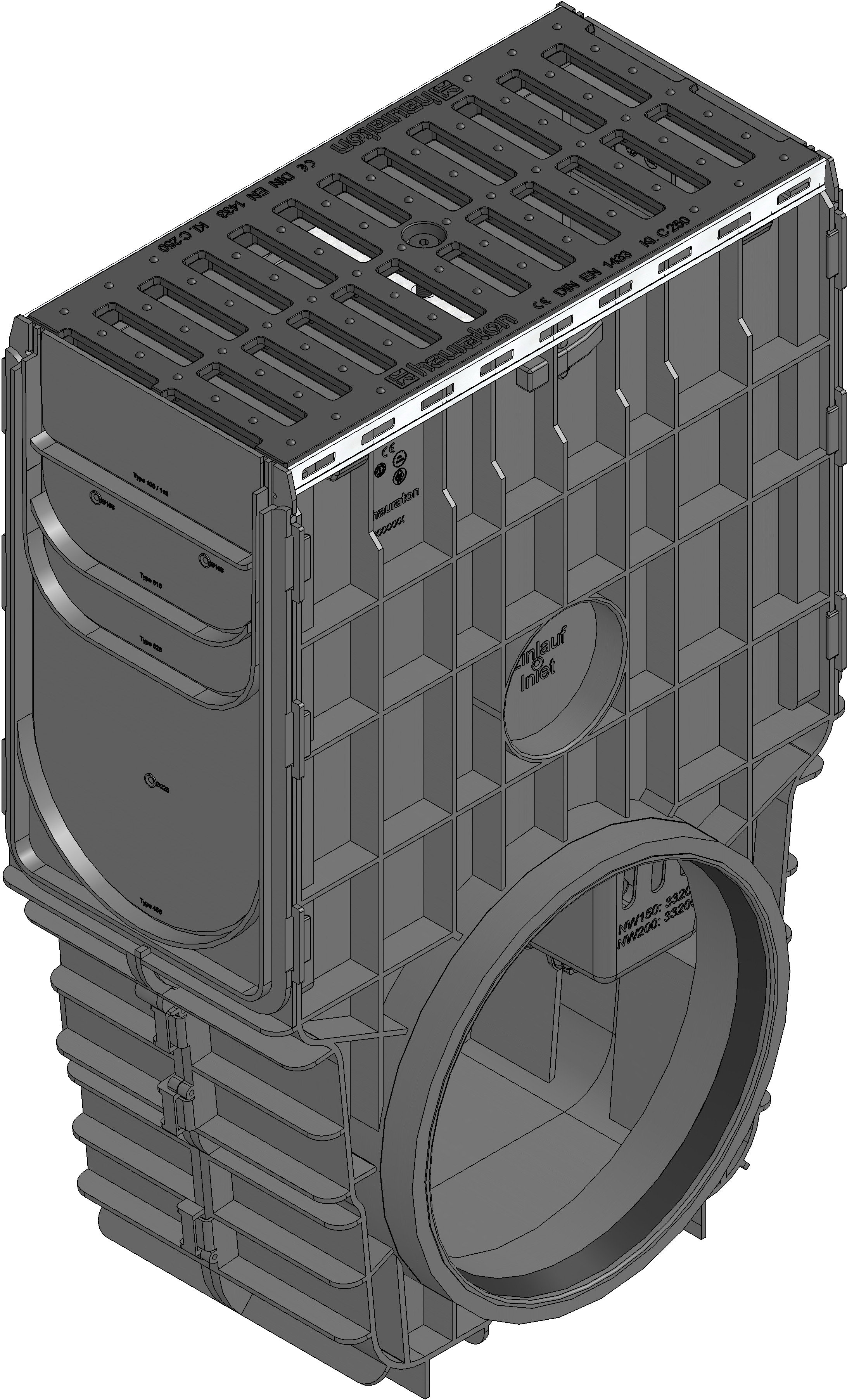

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40056
Length
500 mm
Width
262 mm
Height
801 mm
Einlegetiefe
6 mm
Weight
14.96 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Stainless steel 1.4301, Steel black galvanised
Intake cross-section
714.0 cm²/m
Nominal size
200
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of stainless steel, with ductile iron cover 2x SW 85/18 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PLUS 200, 0.5 m
Product description
RECYFIX PLUS 200 - Sump unit made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 200, with ductile iron cover 2x SW 85/18 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x801 mm, item no. 40056
Packaging unit
4
