Article No. 40071
Trash boxes
for NW 200, with silt bucket made of recycled PP, with ductile iron cover G-TEC 2x SW 85/9 mm, KTL-coated, class D 400, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

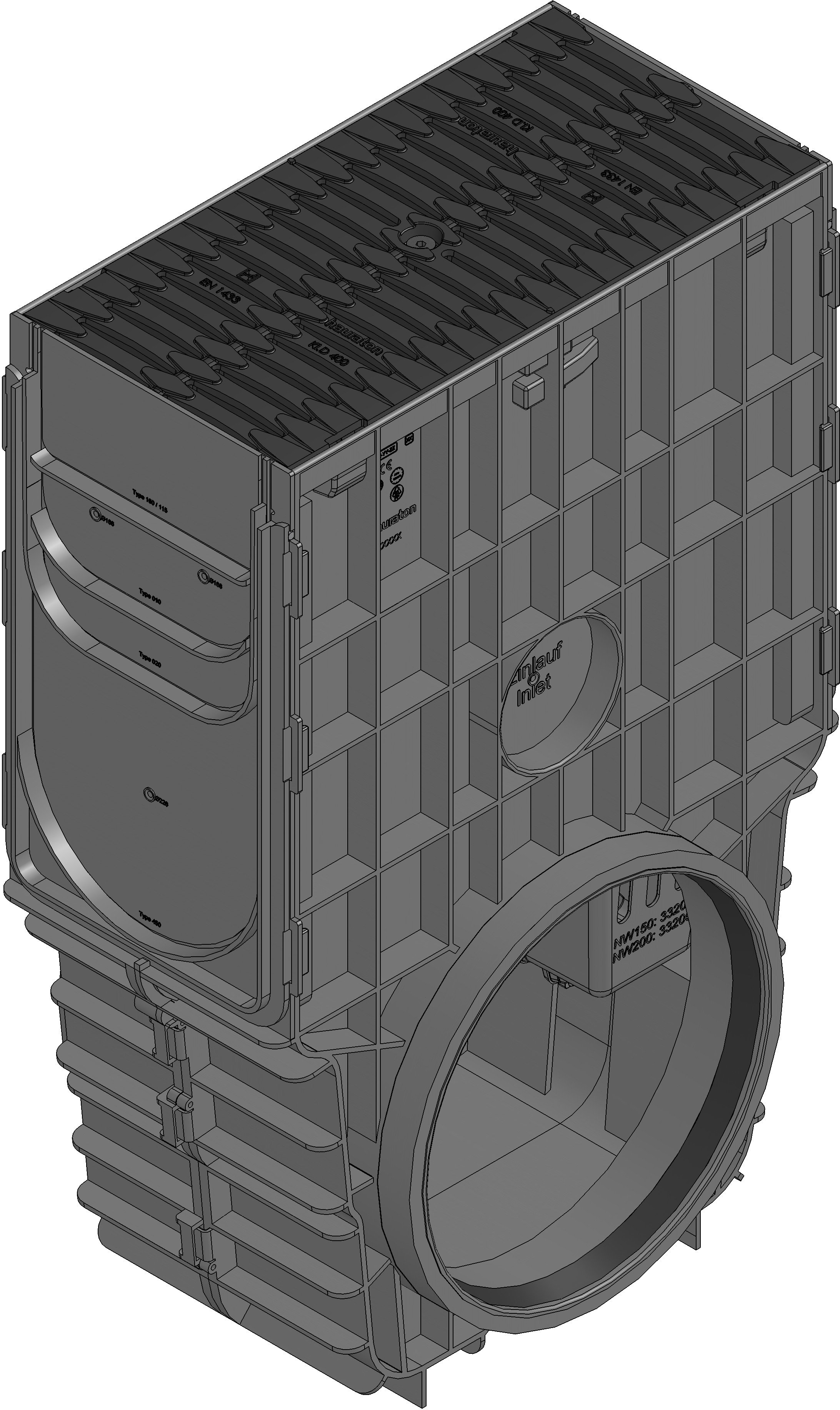

Product image

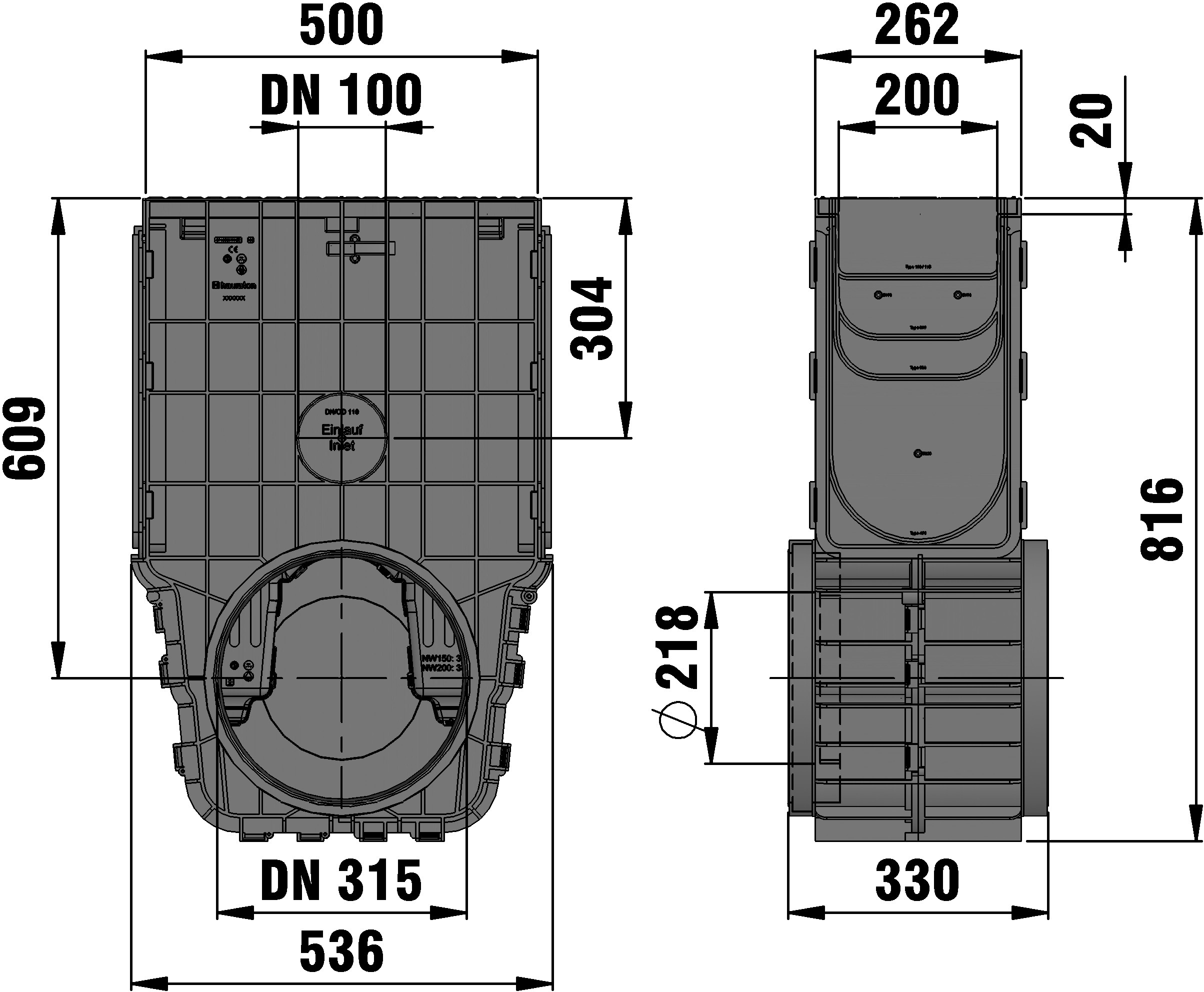

Technical drawing
Drawing (CAD)
Drawing

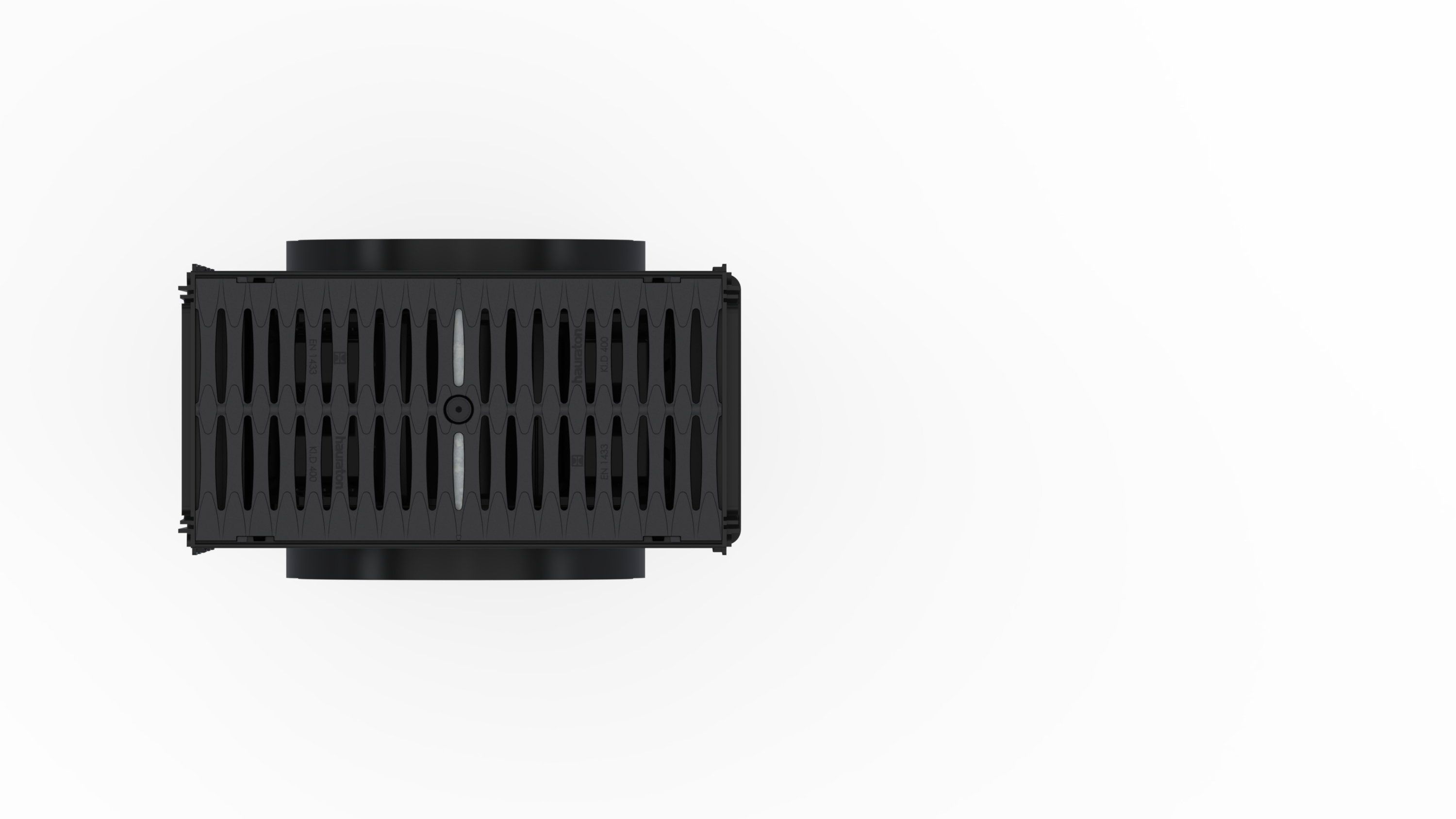

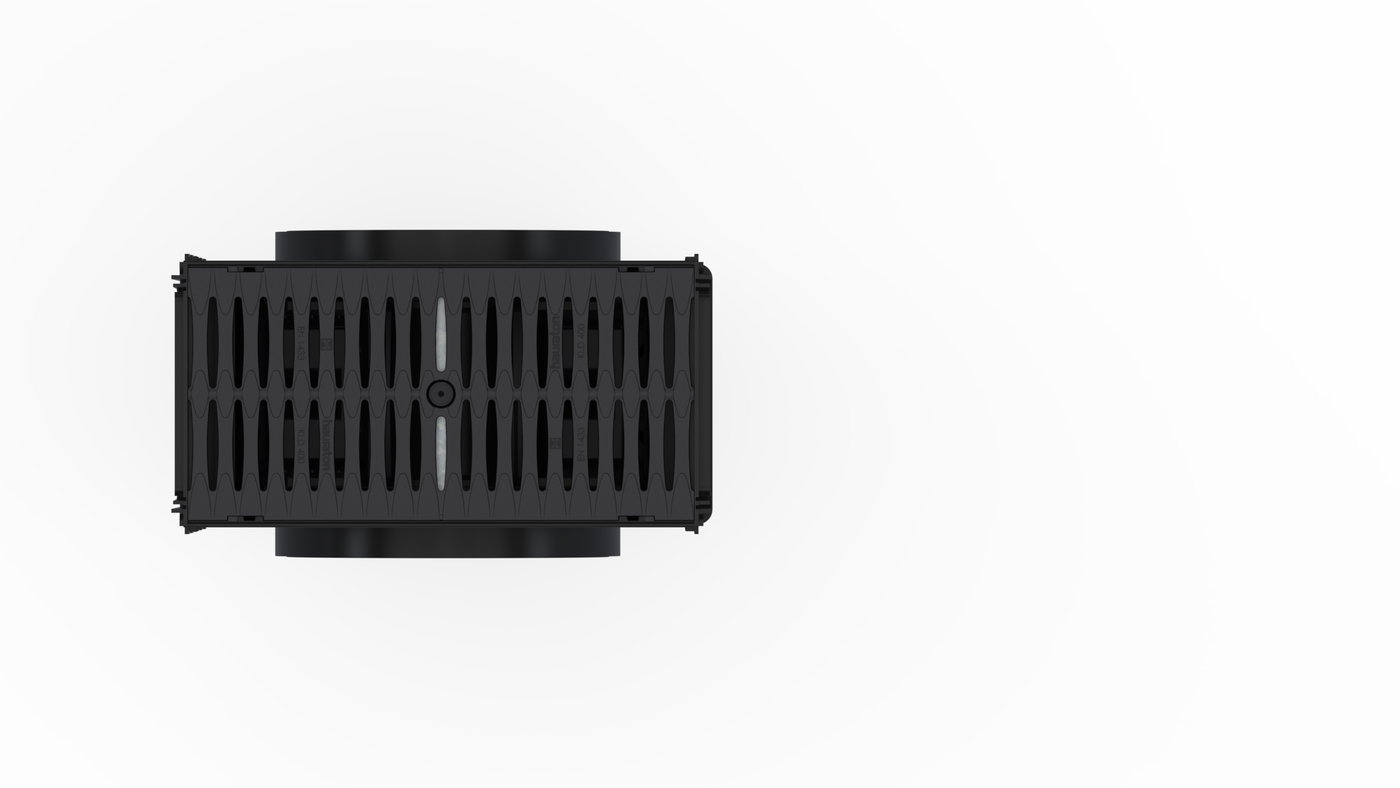

Top view
Technical information and metrics
Article No.
40071
Length
500 mm
Width
262 mm
Height
816 mm
Einlegetiefe
20 mm
Weight
17.27 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
596.0 cm²/m
Nominal size
200
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with 2 end caps made of recycled PP, with ductile iron cover G-TEC 2x SW 85/9 mm, KTL-coated, cl. D 400, locked, with silt bucket made of recycled PP, RECYFIX PRO 200, 0.5 m
Product description
RECYFIX PRO 200 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 200, with ductile iron cover G-TEC 2x SW 85/9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x262x816 mm, item no. 40071
Packaging unit
4
