Article No. 40065
sump unit
for NW 200, with silt bucket made of recycled PP, with FIBRETEC design slotted cover SW 200/10 mm, in the colour black, class B 125, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

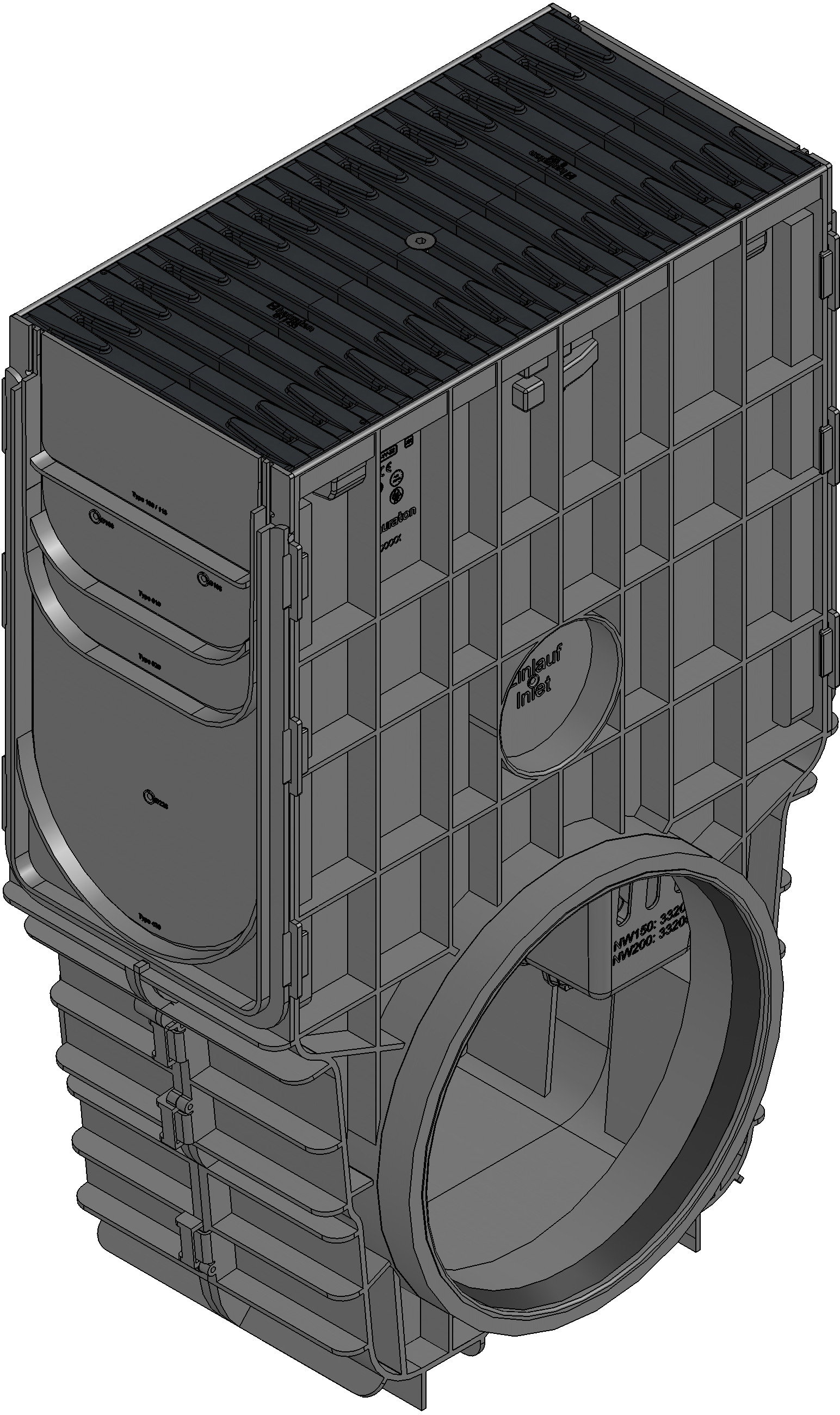

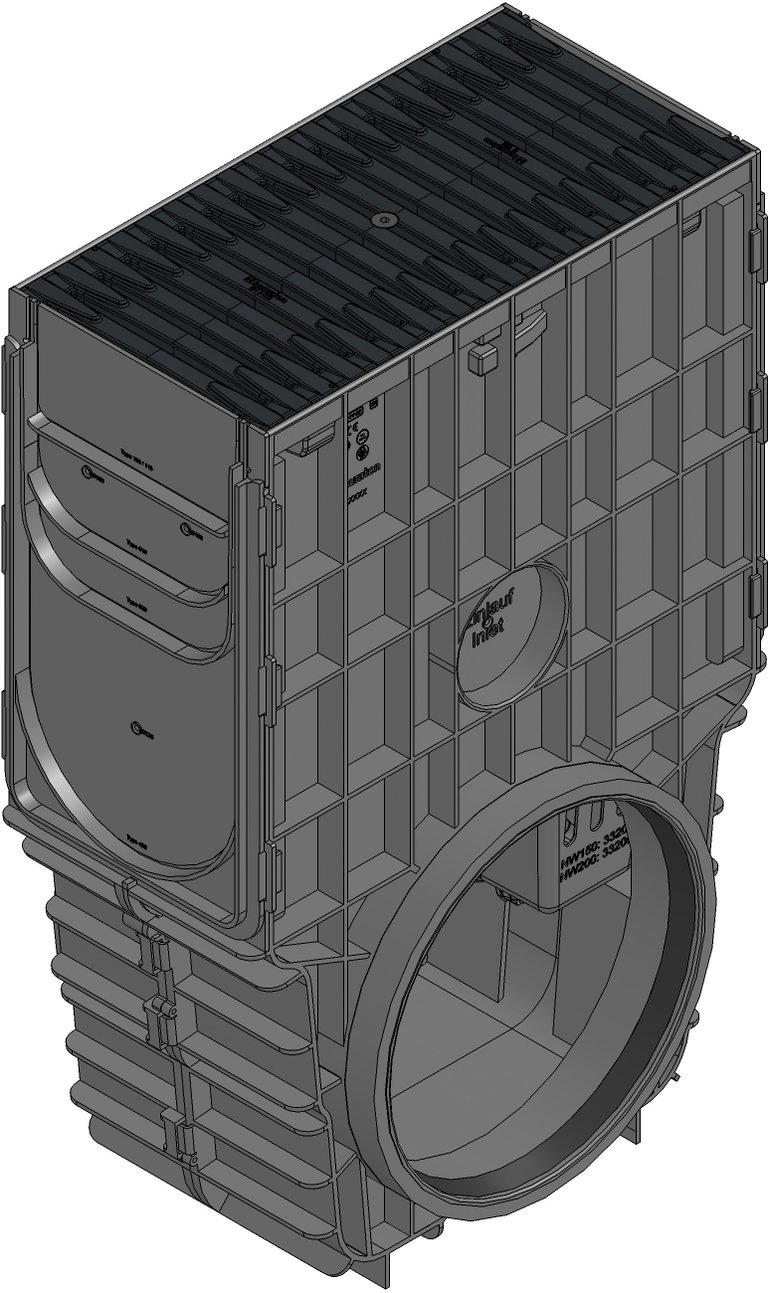

Product image
Technical drawing
Drawing (CAD)

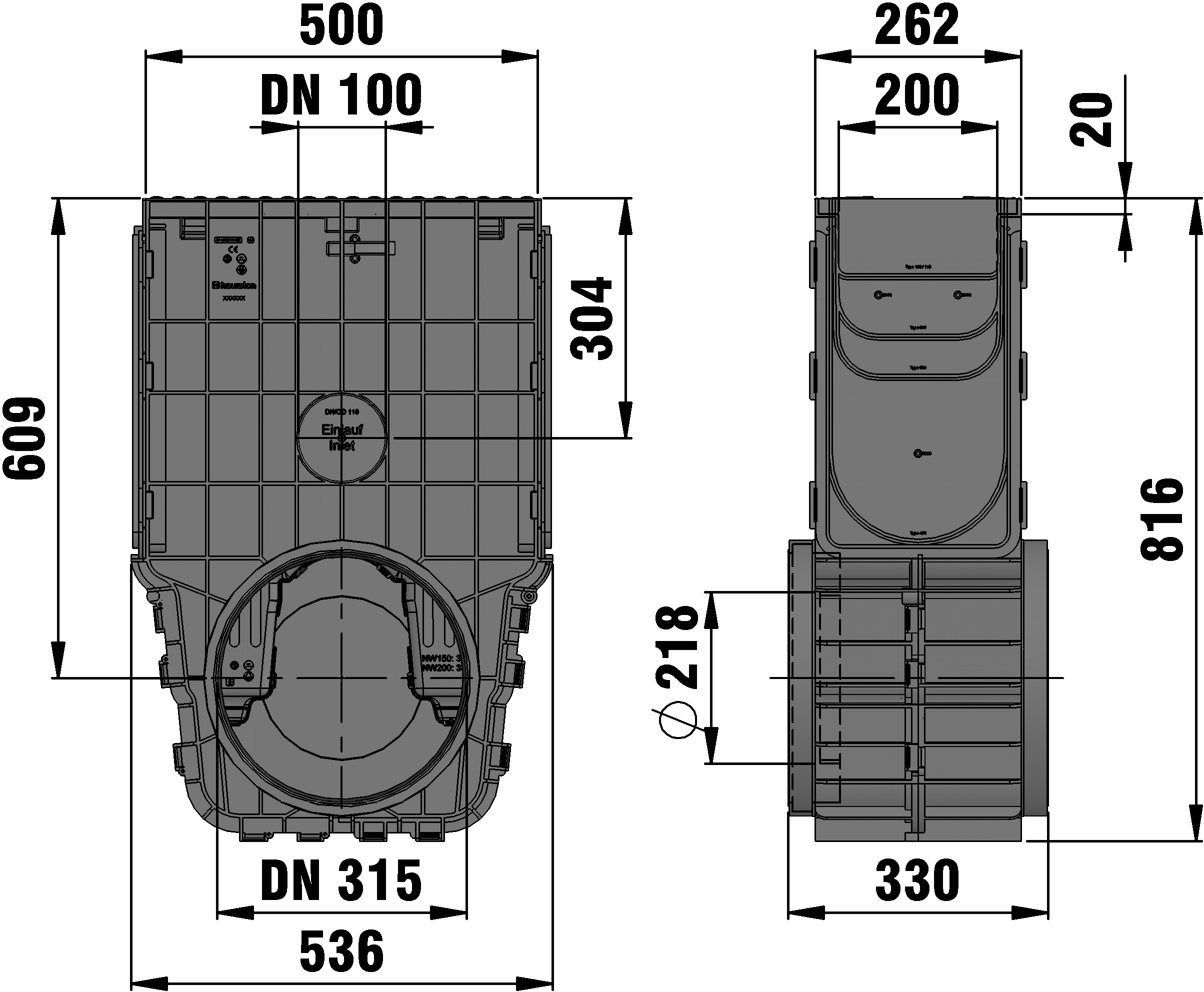

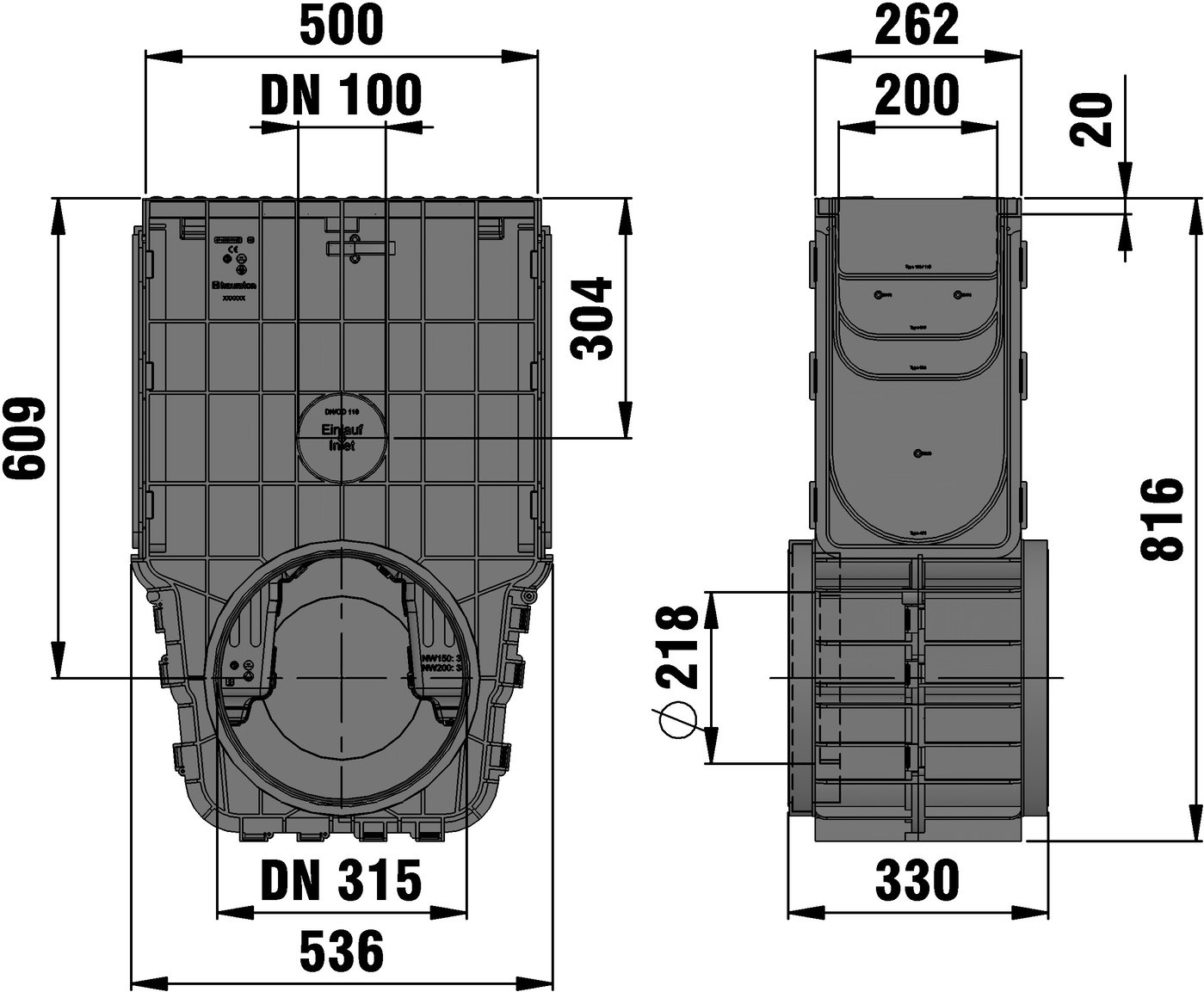

Drawing

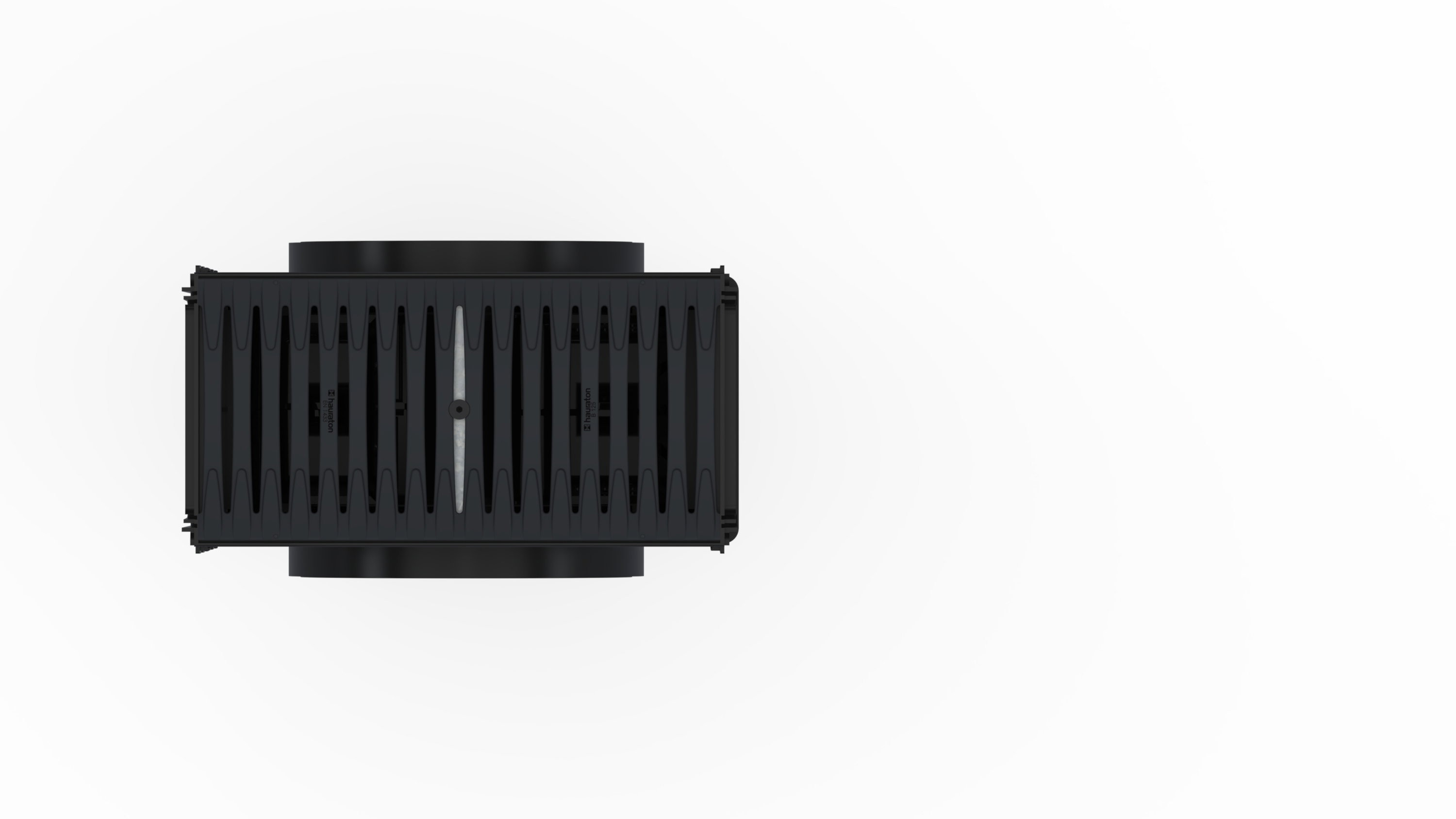

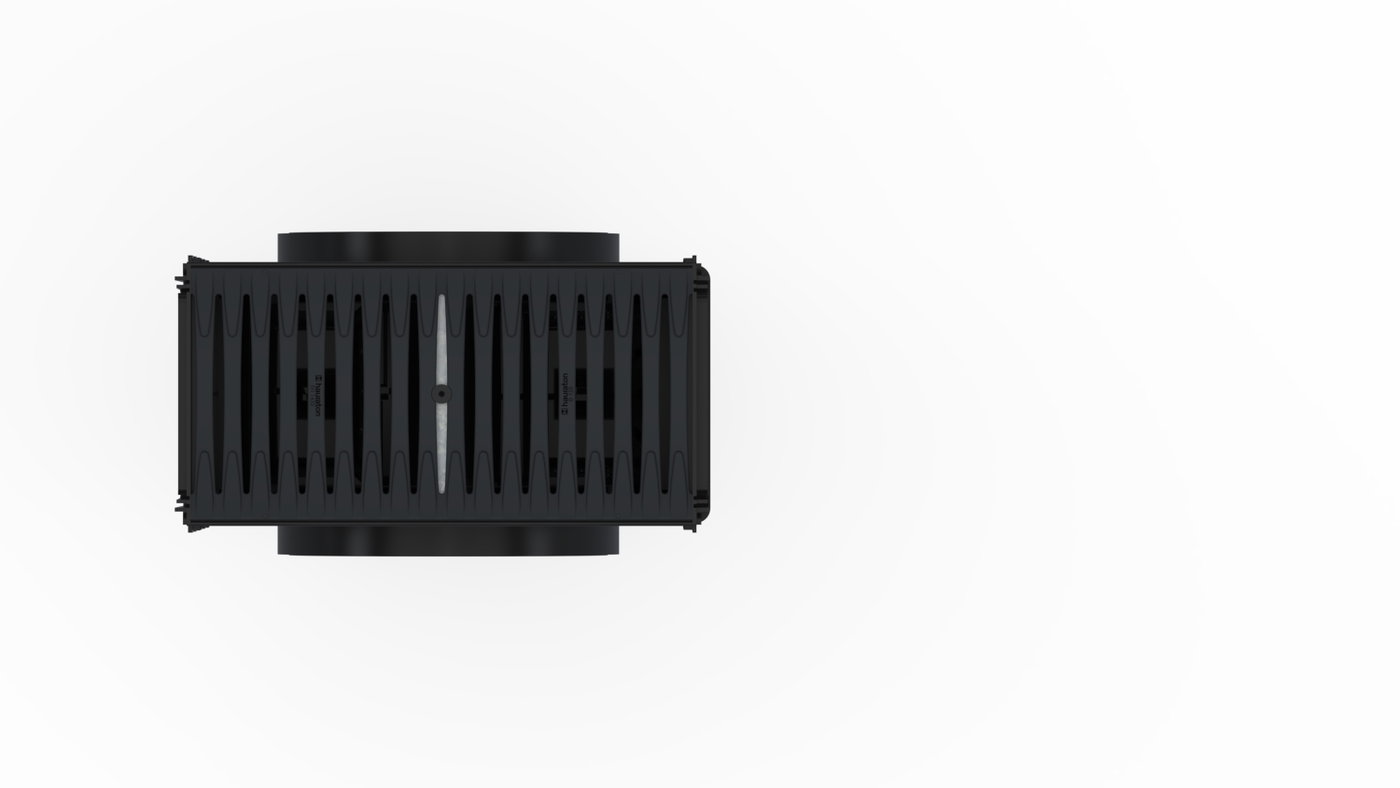

Top view
Technical information and metrics
Article No.
40065
Length
500 mm
Width
262 mm
Height
816 mm
Einlegetiefe
20 mm
Weight
11.13 kg
Material
Galvanised steel, recycled polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
656.0 cm²/m
Nominal size
200
Material cover
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with 2 end caps made of recycled PP, with FIBRETEC design slotted cover SW 200/10 mm, black , cl. B 125, locked, with silt bucket made of recycled PP, RECYFIX PRO 200, 0.5 m
Product description
RECYFIX PRO 200 - Sump unit made of recycled polypropylene, with integrated edge frames, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 200, with FIBRETEC design slotted cover SW 200/10 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x262x816 mm, item no. 40065
Packaging unit
4
