Article No. 40088
Trash boxes
for NW 300, with silt bucket made of recycled PP, with ductile iron cover 2x SW 142/18 mm, KTL-coated, class E 600, with 4-fold bolting, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

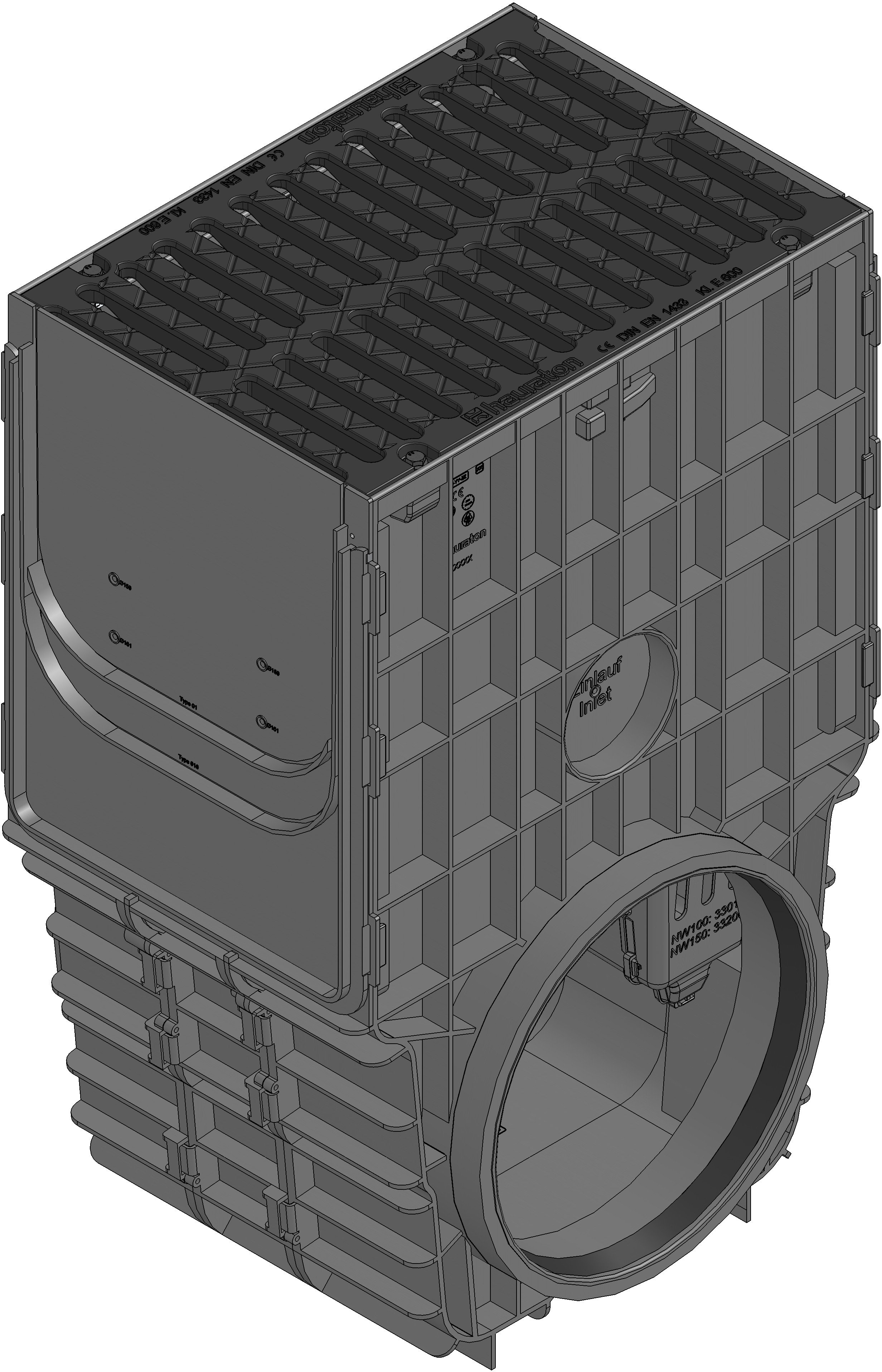

Product image

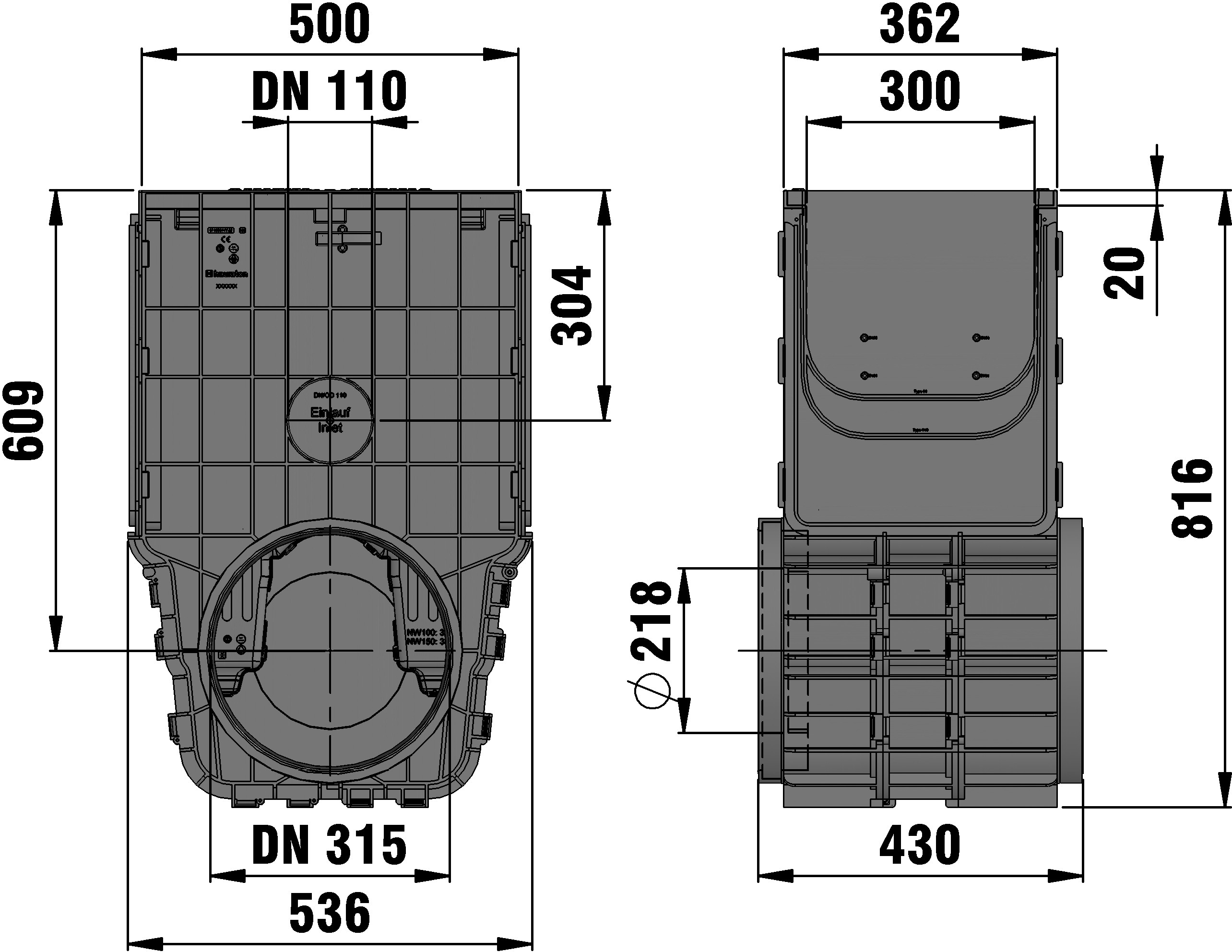

Technical drawing
Drawing (CAD)
Drawing

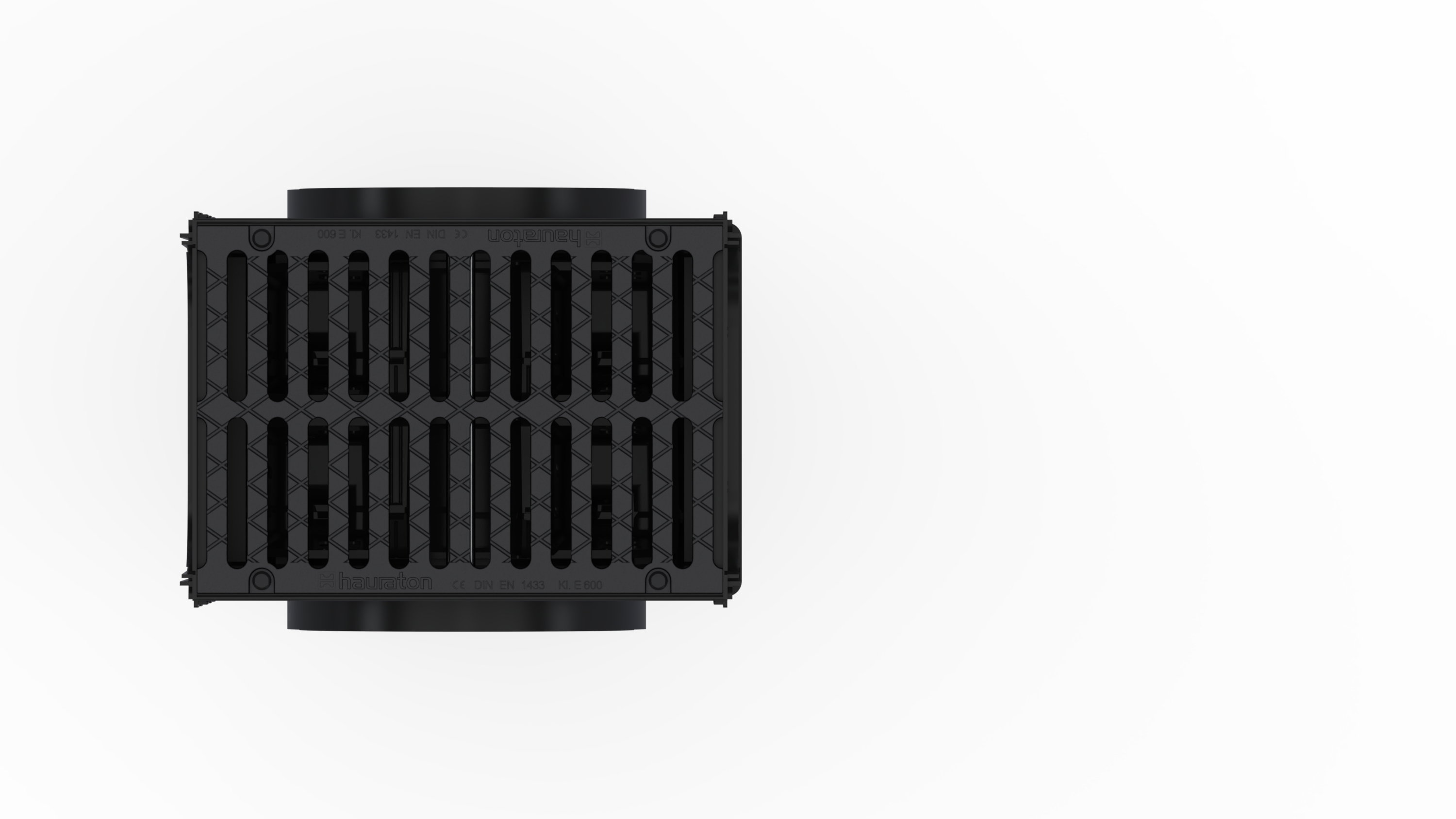

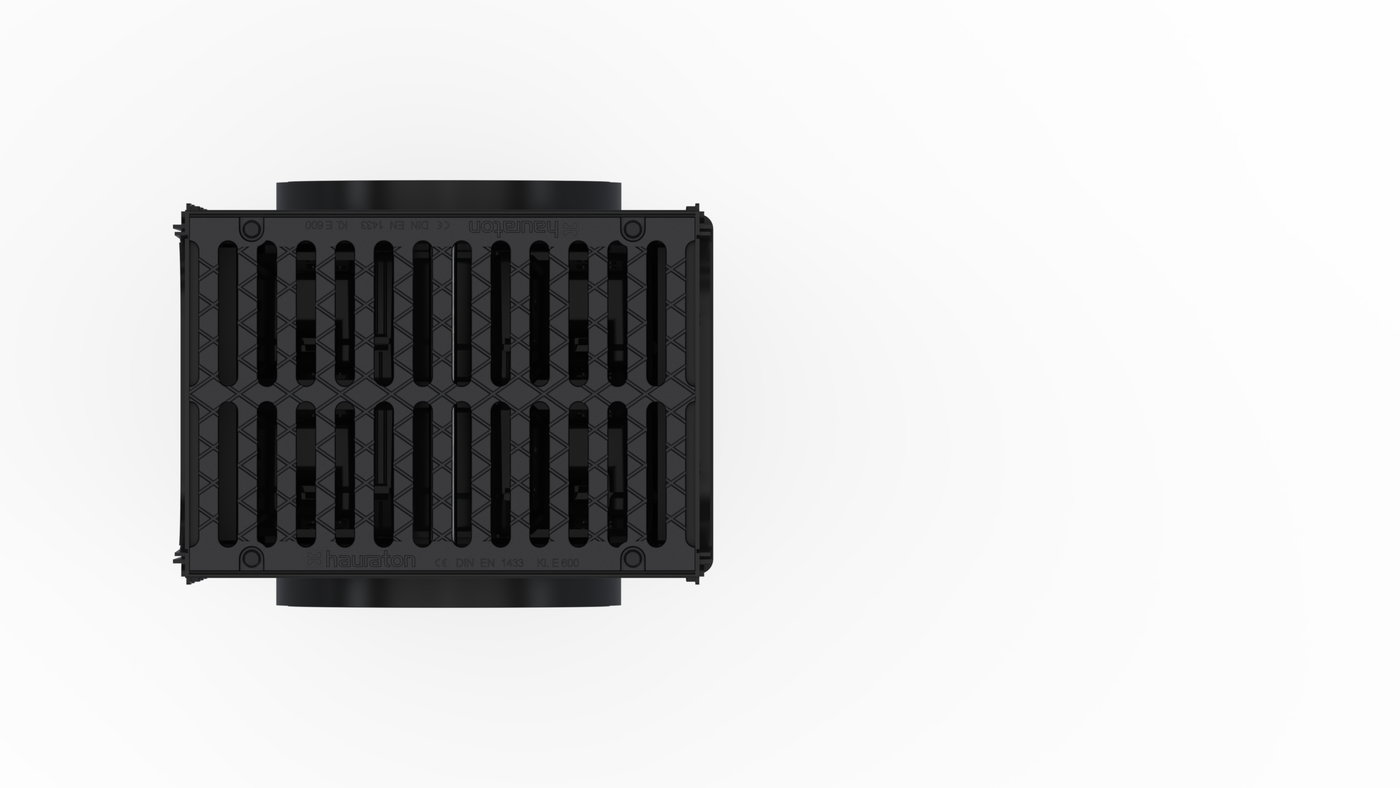

Top view
Technical information and metrics
Article No.
40088
Length
500 mm
Width
362 mm
Height
816 mm
Einlegetiefe
20 mm
Weight
24.19 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1293.0 cm²/m
Nominal size
300
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with integrated edge frames, with ductile iron cover 2x SW 142/18 mm, KTL-coated, cl. E 600, with 4-fold bolting, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX NC 300, 0.5 m
Product description
RECYFIX NC 300 - Sump unit made of recycled polypropylene, with integrated edge frame, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX NC 300, with ductile iron cover 2x SW 142/18 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, with 4-fold bolting, load class A 15 - E 600 according to EN 1433, LxWxH 500x362x816 mm, item no. 40088
Packaging unit
4
