Article No. 24130
Trash boxes
for NW 500, for Type 01, 2-part, with edge frames made of galvanised steel and silt bucket made of galvanised steel, 1.0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

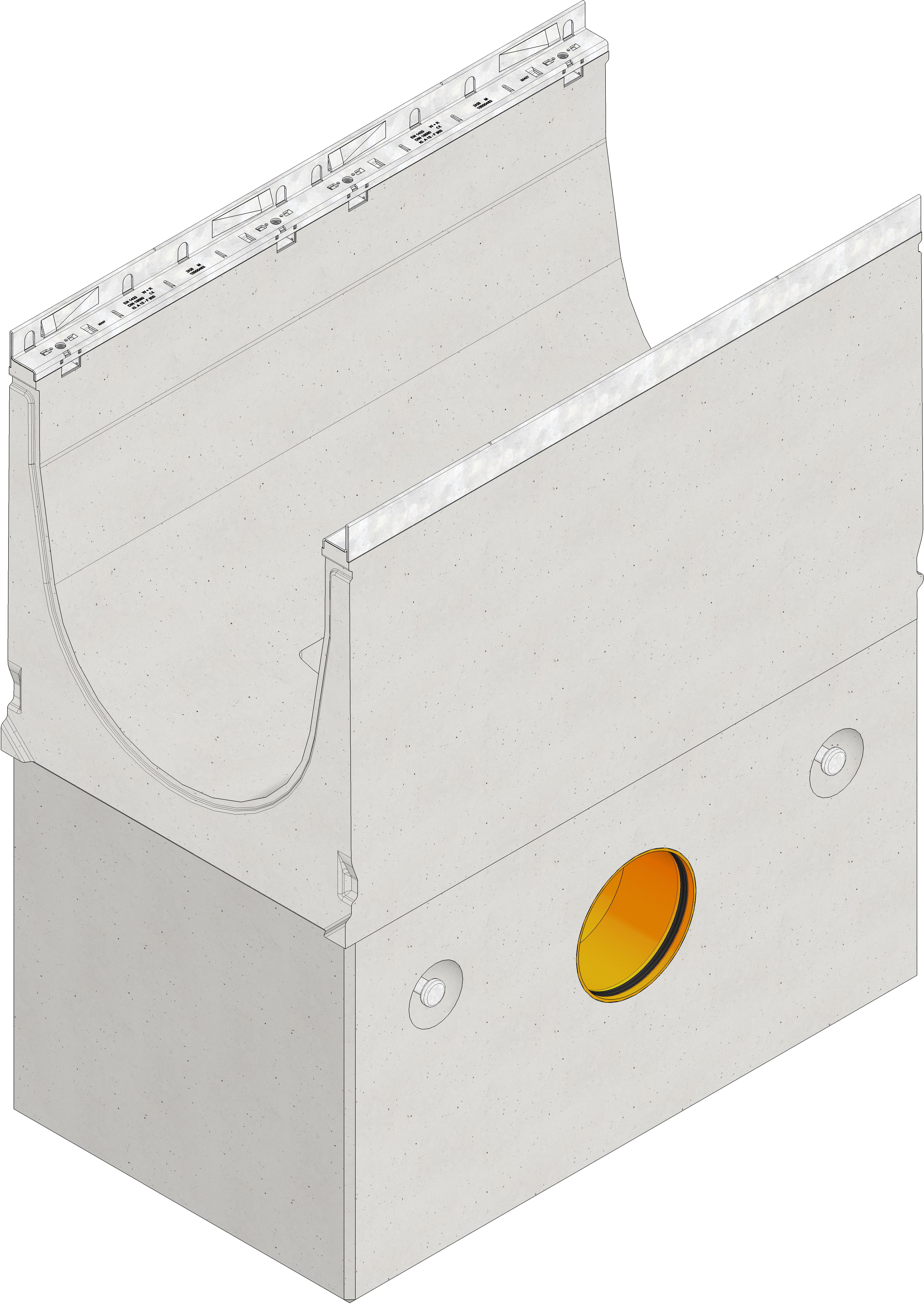

Product image

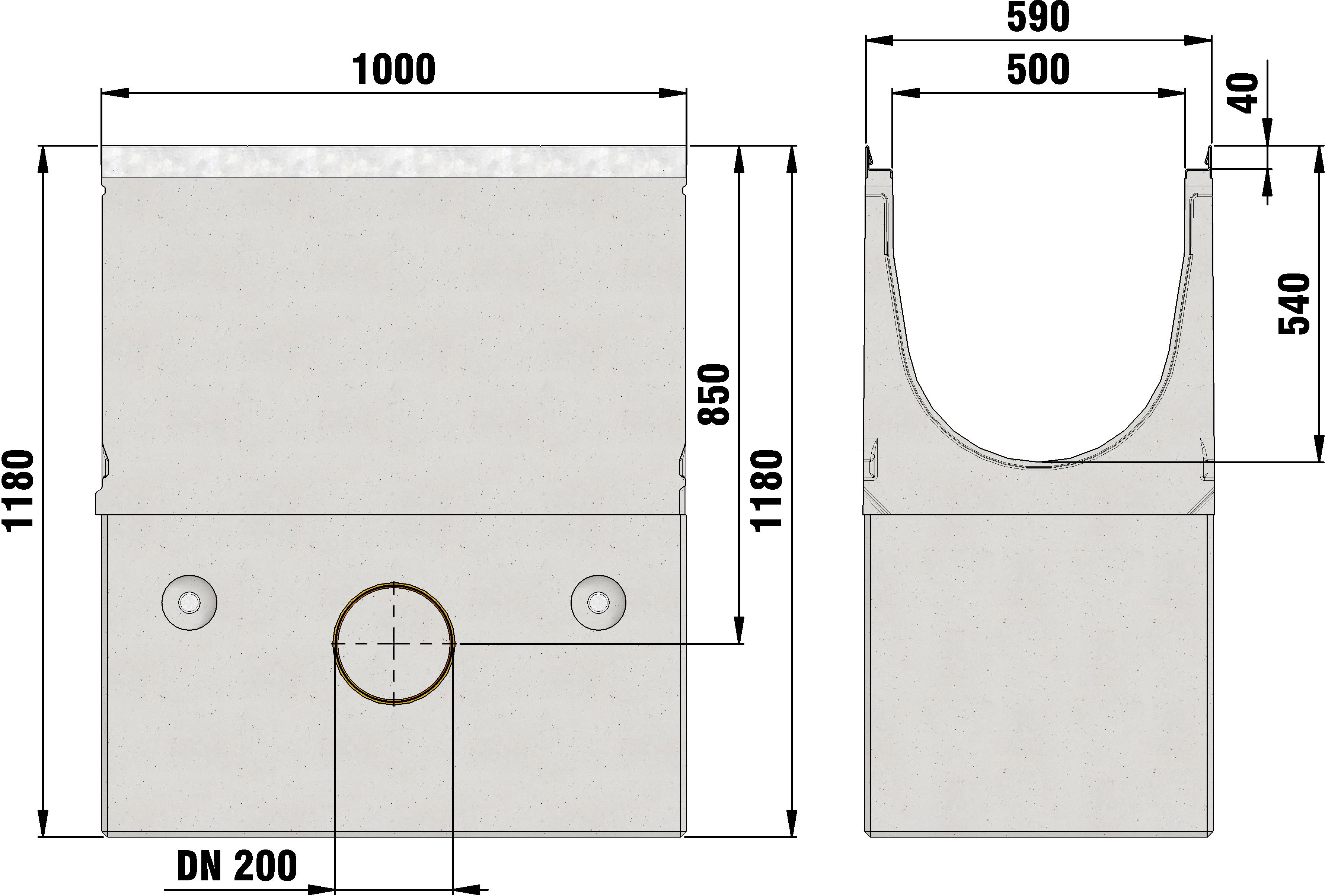

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
24130
Length
1000 mm
Width
590 mm
Height
1180 mm
Weight
1031.00 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
500
Regulations
EN 1433, DIN 19580
Sales text
Sump unit, 2-part, with edge frames made of galvanised steel, with silt bucket made of galvanised steel, FASERFIX SUPER 500 type 01, 1 m
Product description
FASERFIX SUPER 500 type 01 - Sump unit, 2-part,made of fibre-reinforced concrete, load class A 15 - F 900 according to EN 1433, CE compliant, with edge frame made of galvanised steel and boltless quick-locking system SIDE-LOCK for quick and easy installation of the cover, 8-fold locking, one-sided connection possibility (on the side) with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of FASERFIX SUPER 500 type 01, LxWxH 1000x590x1180 mm, item no. 24130
Packaging unit
1
