Article No. 33452
sump unit
for system size up to type 8000, with all-round edge frame made of galvanised steel, with ductile iron cover, closed, KTL-coated, class E 600
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

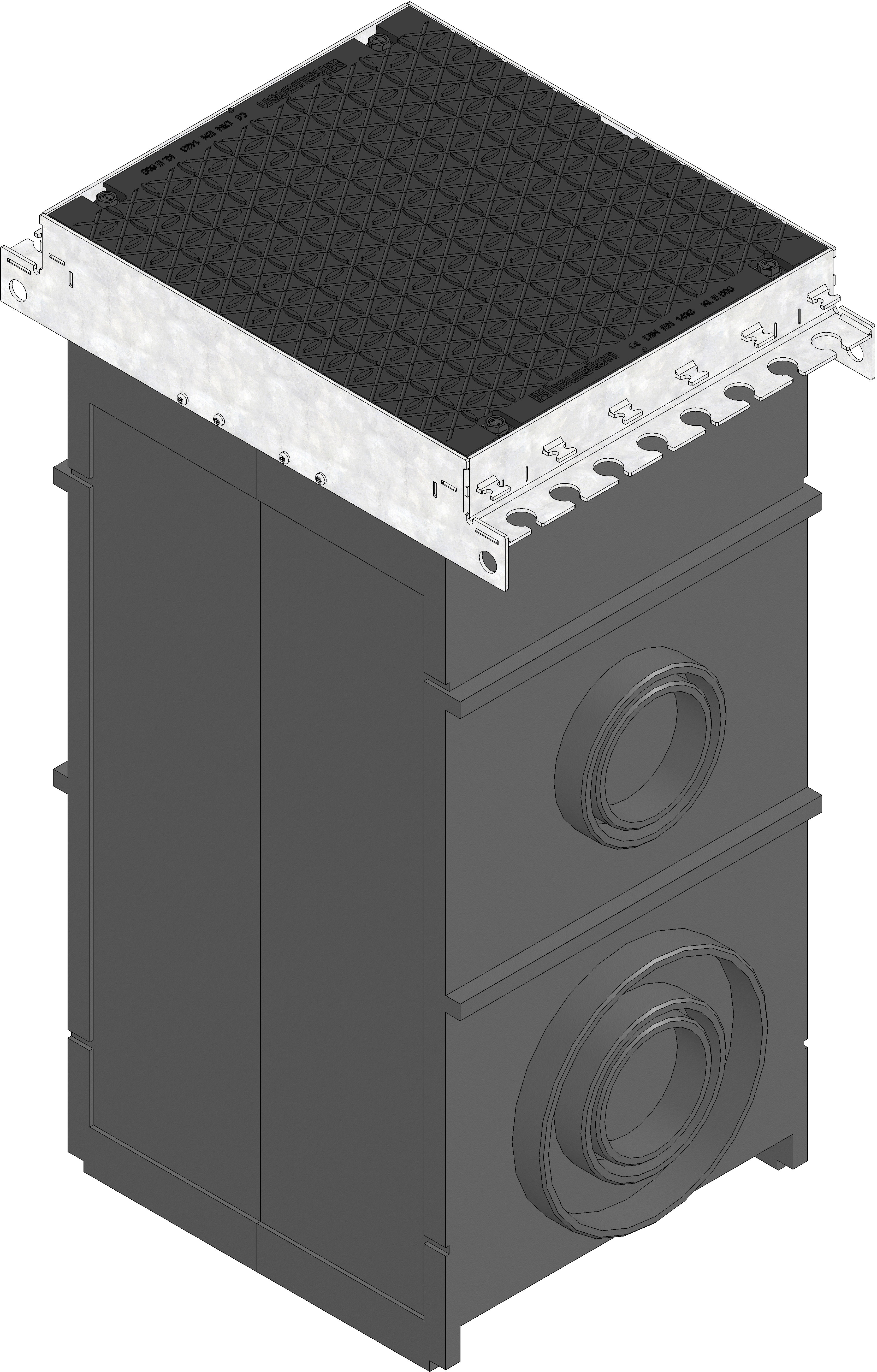

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
33452
Length
510
Width
590 mm
Height
1116
Einlegetiefe
40 mm
Weight
103.50 kg
Material
Ductile iron GJS 500-7 with KTL-coating, Galvanised steel, recycled polyolefin, Steel 8.8 zinc-laminated black
Intake cross-section
0.0 cm²/m
Nominal size
1000, 2000, 3000, 5000, 8000
Material cover
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with galvanised steel frame, with ductile iron cover, closed, KTL-coated, cl. E 600, RECYFIX HICAP 1000/2000/3000/5000/ 8000, 0.51 m
Product description
RECYFIX HICAP 1000/2000/3000/5000/8000 - Sump unit made of recycled polyolefin, according to EN 1433, CE compliant, with all-round edge frame made of galvanised steel, with ductile iron cover closed, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, load class A 15 - E 600 according to EN 1433, 4-fold locking, 2-sided connection possibility (DN/OD 160/200/315 on the sides), for connection of RECYFIX HICAP channels, LxWxH 510x590x1116 mm, item no. 33452
Packaging unit
2
