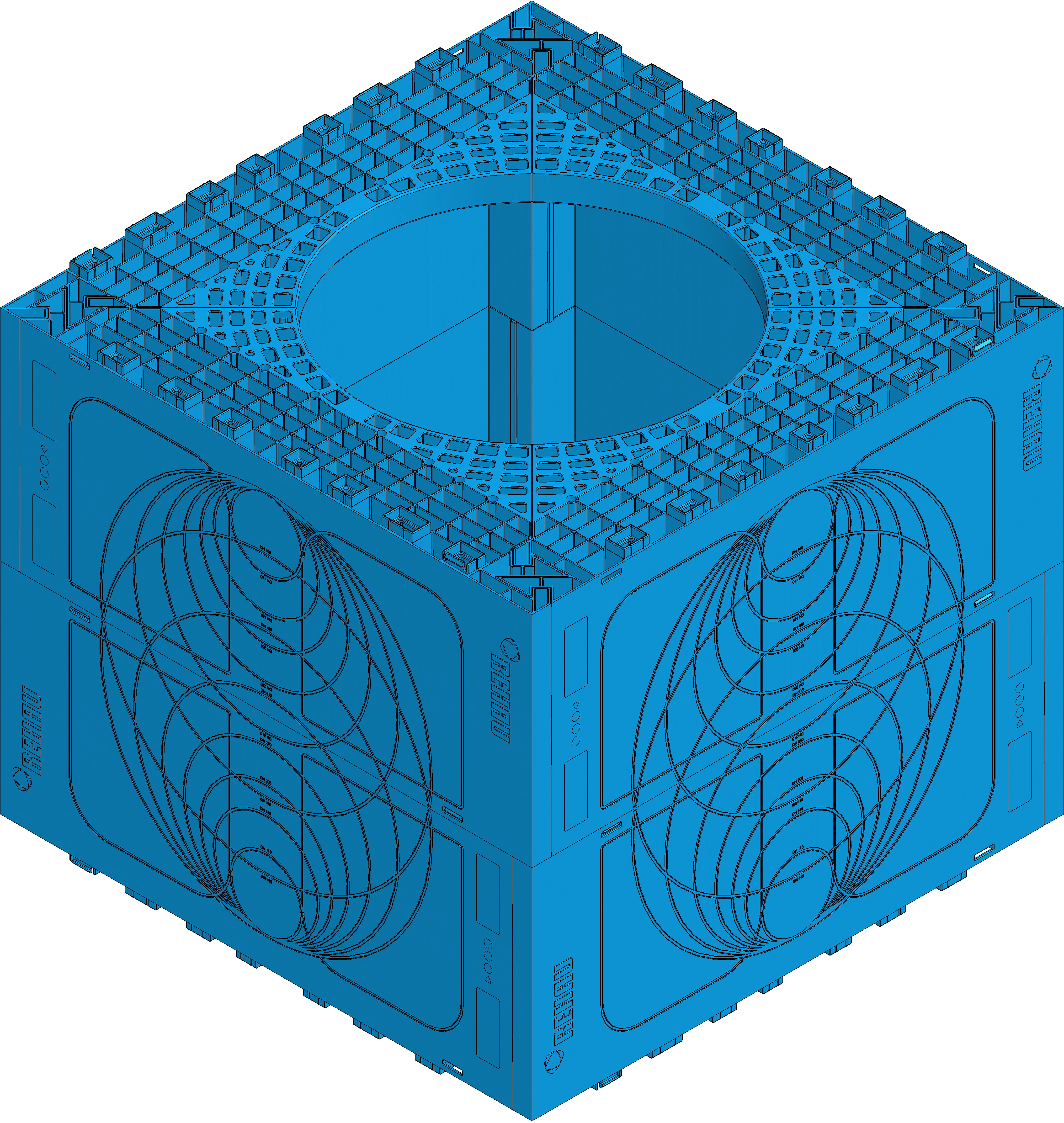

Slika proizvoda
Tehnički nacrt proizvoda
Nacrti
Nacrt (CAD)
Tehnički list proizvoda
Tehničke informacije o proizvodu
Artikl br.
10282
Duljina
800 mm
Širina
800 mm
Visina
660 mm
Težina
27.400 kg
Prodajni tekst
C3 revizioni element, tip X 8.6
Opis proizvoda
RAUSIKKO C3 type X Manhole base body 8.6: Shaft element C3 type X, for connecting/inspection/maintaining/cleaning of RAUSIKKO BOX soakaway/storage system, stackable in multiple layers, colour: blue, material PP, load bearing up to Heavy Goods Vehicle HGV 60 with suitable road structure; regulated construction product with approval from the German technical authority (DIBt), can be planned according to ÖWAV regulation 45; connection possibilities (in all directions): KG DN/OD 110 - DN/OD 500, channel RAUSIKKO BOX S/SC/H/HC/SX, front connection spigot DN/OD 200/250 and sand trap; dimensions: LxWxH 800x800x660 mm, installation height 0,66 m; item no. 10282
Tekst brošure
C3 revizioni element, tip X 8.6
