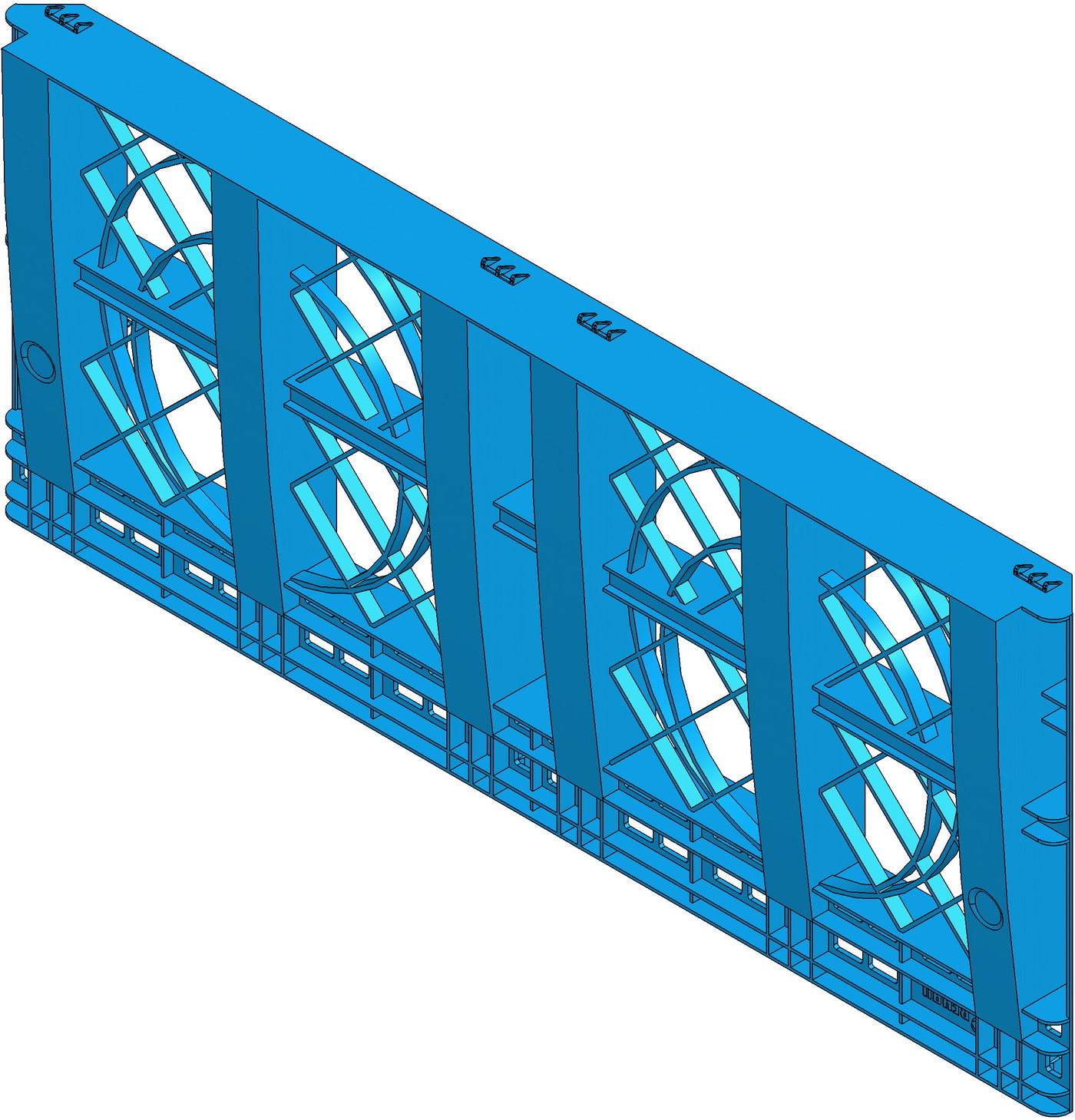

Slika proizvoda
Tehnički nacrt proizvoda
Nacrti
Nacrt (CAD)
Tehnički list proizvoda
Tehničke informacije o proizvodu
Artikl br.
10280
Duljina
800 mm
Širina
330 mm
Visina
60 mm
Težina
1.80 kg
Prodajni tekst
RAUSIKKO HX, bočna stijenka, tip 8.3
Opis proizvoda
RAUSIKKO BOX HX Side panel 8.3: water-permeable cover plate for closing the sides of an infiltration/retention system comprising RAUSIKKO boxes 8.3 HX (installation height 360 mm); with saw-cut matrix for connection of KG spigots DN/OD 200 and 250 as inlet resp. outlet or vent; fixed to the storage element without additional connecting elements; made of high-rigidity polypropylene (PP), colour: blue; load bearing up to Heavy Goods Vehicle HGV 60 with suitable road structure; regulated construction product with approval from the German technical authority (DIBt), can be planned according to ÖWAV regulation 45; verification of load-bearing capacity by type statics; suitable for fire-fighting water storage in accordance with DIN 14230; dimensions: LxWxH approx. 800x330x60 mm; item no. 10280
Tekst brošure
bočna stijenka, tip 8.3
