Article No. 88375
AQUAFIX SK Coalescence separator with sludge trap
SK 30/3000
Delivery time on request

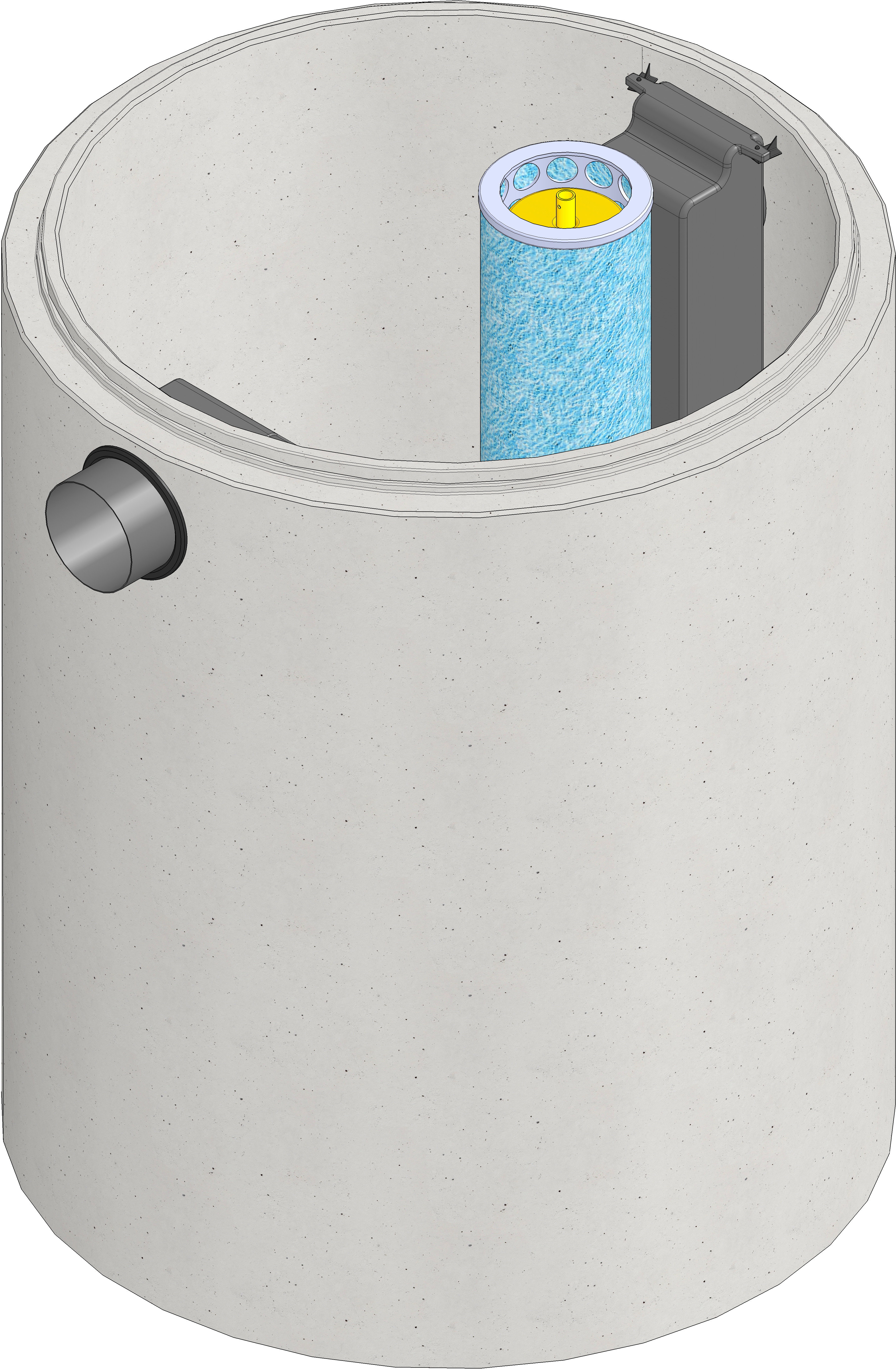

Product image
Technical drawing
Drawings
Drawing (CAD)
Installation drawing
AQUAFIX - Construction site drawing
Data Sheet
Technical information and metrics
Article No.
88375
Length
2300 mm
Width
2300 mm
Height
2750 mm
Weight
7468.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE, Standard concrete acc. norm
Nominal size
30
Bypass
without bypass
Flow rate
30 l/s
Separator capacity
2550 l
Pump chamber
ohne
Sludge trap capacity
3000 l
Diameter of manhole 1
625 mm
Diameter of manhole 2
-
Inlet height
2285 mm
Inlet diameter
315 mm
Outlet height
2260 mm
Outer diameter
2300 mm
Regulations
EN 858
Sales text
AQUAFIX Sludge Trap-Coalescence Separator SK 30/3000 PL made of concrete
Product description
AQUAFIX Sludge Trap-Coalescence Separator SK 30/3000 PL made of concrete, item no. 88375
Brochure text
SK 30/3000
