SLOTTED CHANNELS

Discreet slot drain for public & commercial areas.

Your benefits with SLOTTED CHANNEL

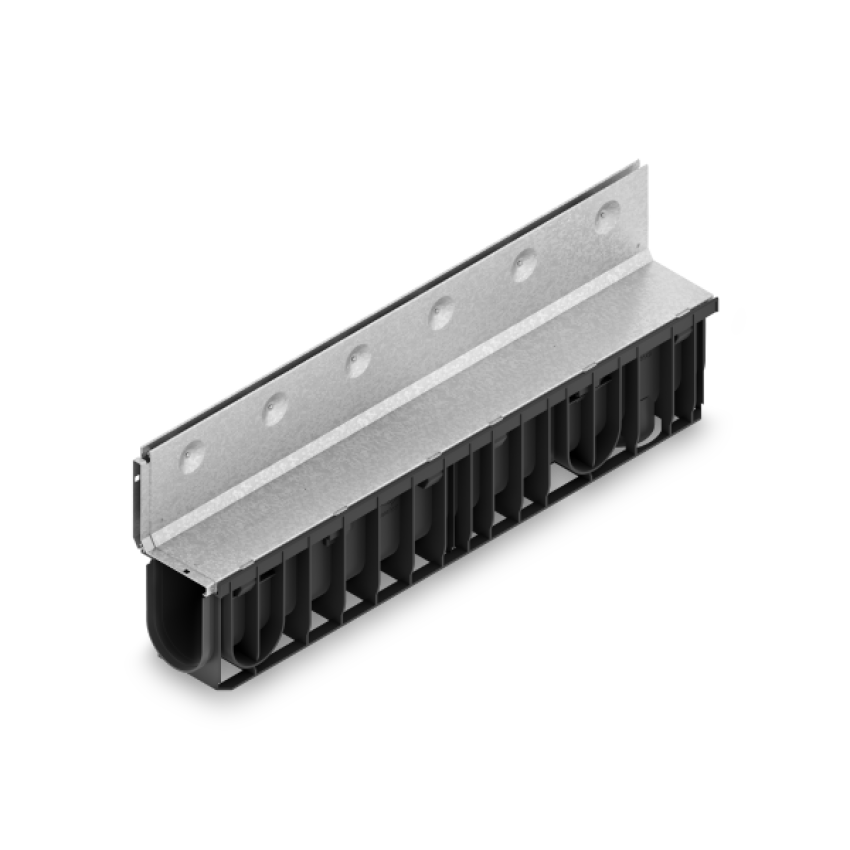

With a slotted inlet of 10mm, the paverslot channel offers neat and discreet surface drainage for design-sensitive applications. The system harmoniously blends into the surface appearance with only unobtrusive narrow lines visable. The channel body is manufactured from approx. 93% recycled composite (certified with the ‘Blue Angel’ eco-label) and fitted with a 105 mm asymmetrical slot grating available in galvanised or stainless steel. Various channel depths are available, including shallower channels where installation depth is restricted.

  • Integrated tongue and groove connection of channels and slot components enables ease of installation
  • Structural reinforcements under the grating and the material thickness (4 mm) provides a perfect balance between weight and stability
  • Withstand loads up to class D 400 according to EN 1433
  • Asymmetrical duo slot available with a width of 2 x 6 mm
  • Connection to outlet pipes is possible from trash box and channels (from the side or bottom)
  • Access cover normally fitted on top of trash box but can also be fitted directly on channel base
  • Individual solutions: slotted components with modified neck height, crossbars in the slot and corner connections can be manufactured
  • High-quality and sustainable materials offer corrosion protection and recyclability of the individual components

The HAURATON Product Finder

Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
Unfold all groups
  • RECYFIX PRO 100

    • FASERFIX STANDARD E 100

      • FASERFIX STANDARD E 100 with gradient 0.6 %

        • FASERFIX KS 100

          • FASERFIX KS 100 with gradient 0.6 %

            • RECYFIX PRO 150

              • FASERFIX STANDARD 150

                • FASERFIX KS 150

                  • FASERFIX KS 150 with gradient 0.5 %

                    • RECYFIX PRO 200

                      • FASERFIX KS 200

                        • FASERFIX KS 200 with gradient 0.5 %

                          Unfold all groups

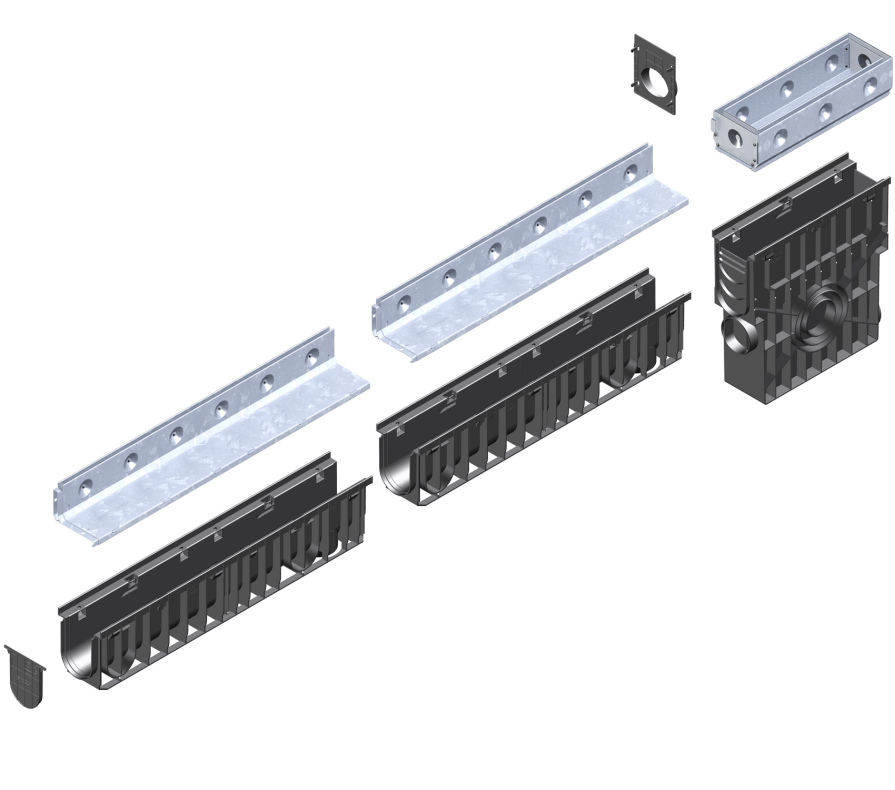

                          deconstructed product image highlighting the most important parts of the product
                          Show descriptions Hide descriptions

                          End cap

                          Slotted cover

                          Channel base

                          Sump unit

                          Inspection element

                          System components
                          SLOTTED CHANNELS

                          Material made from recycled composite

                          The RECYFIX material used to manufacture the channel bodies is made from approximately 93% recycled composite and, for this reason, bears the well-known German ‘Blue Angel’ eco-label. This helps to preserve fossil fuel resources, reduce waste and minimise the environmental impact of production. RECYFIX channels are PVC-free and suitable for material or thermal recovery  at the end of their life.

                          Videos

                          Case Studies with SLOTTED CHANNEL

                          The SLOTTED CHANNEL has been utilised in many design-conscious applications such as public spaces, market squares, façades and commercial areas.
