AQUAFIX HMC heavy metal separator made of concrete – system Linberg
Heavy metal separator for cleaning rainwater from traffic areas and roofs
Our solutions – your benefits – AQUAFIX heavy metal separators
The AQUAFIX system for treating heavy metals uses an efficient two-stage cleaning process to purify rainwater from traffic areas and roofs. It consistently retains coarse and fine particles and reliably binds dissolved heavy metals, resulting in purified water that can be safely discharged into natural waterways or reused.
Thanks to a wide range of filter sizes, AQUAFIX can be flexibly adapted to a wide variety of connection areas — from smaller roof areas to large traffic areas. The solid concrete shaft ensures the necessary load-bearing capacity and permanently high stability even under extreme traffic loads.
-
Effective two-stage cleaning: particle separation and targeted heavy metal binding
-
High adaptability: various sizes for large connection surfaces
-
Robust construction: concrete shaft for lasting stability under traffic loads
-
Environmentally friendly: purified water can be safely discharged or reused
-
Easy to maintain: easy access for inspection and media replacement
The HAURATON Product Finder
You are in the category „“. There are no matching products to your selection here. You may find suitable products for your specific search in another category.
There are no matching products for your selection. Please select other filters in the product finder.
Why heavy metal removal matters in modern water Management
The removal of heavy metals refers to targeted measures that minimise or eliminate contaminants such as copper, zinc, lead, nickel, and chromium from water. These substances may occur dissolved or attached to fine suspended matter and can threaten ecosystems, human health, and water resources if left untreated.
In practice, removing heavy metals involves capturing and binding these substances before they can reach soils, groundwater, or natural watercourses. This is achieved through dedicated processes such as adsorption, ion exchange, precipitation, or filtration, which help ensure that the treated water complies with regulatory thresholds and is suitable for discharge or reuse.
A typical solution can consist of a two-stage approach: zeolites first separate metals bound to sediment, followed by the adsorption of dissolved metal ions. The result is reliably cleaned stormwater that can be returned to the environment with confidence.

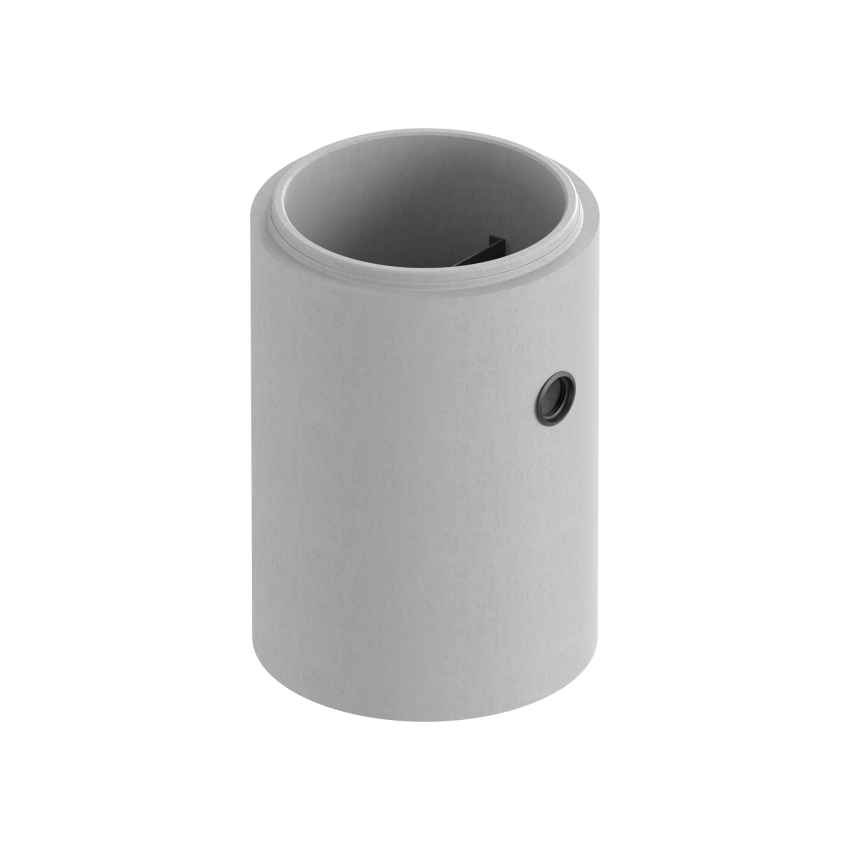

Design of the AQUAFIX HMC heavy metal separator
HMC tanks are made from reinforced steel concrete, providing exceptional durability and ensuring long-term stability, even under heavy traffic loads. They are available in a range of diameters, from DN 1200 to DN 2500, to suit various hydraulic and site requirements.
Application areas for heavy metal separators
AQUAFIX HMC heavy metal separators are used wherever rainwater may carry elevated concentrations of dissolved or particulate metals, such as on roads and car parks, commercial and industrial areas, metal roofs, as well as in the vicinity of sensitive receiving waters and infiltration systems.
