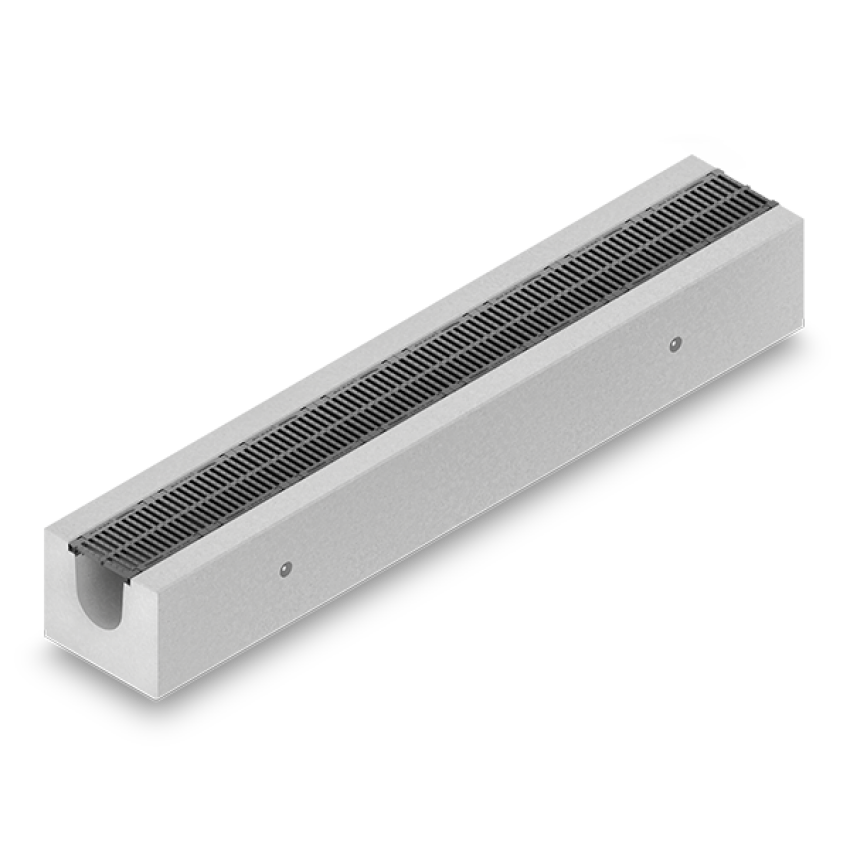

FASERFIX BIG BL

Drainage channels with precast reinforced concrete channel body.

Our solutions – your benefits with FASERFIX BIG BL

FASERFIX BIG BL linear channels integrated with a high stability reinforced concrete channel body are available in 4 metres and 1 metre lengths. FASERFIX BIG BL channels allow installation without the use of poured concrete and, once installed, are ready for immediate use without having to wait for the concrete surrounding to cure.

  • Channel body made of concrete class C50/60 (exposure class XF4, XA3) with added basalt aggregate, reinforced with steel
  • Available in four nominal widths: NW 100, 150, 200, 300
  • High hydraulic capacity: 220 I per 4-metre element with a cross-sectional area of 552 cm2
  • The 4 metre sections facilitate the rapid installation of even very long linear drainage lines, and the 1 metre sections are a convenient supplement to the lines
  • Load class up to F 900
  • Possibility to choose colour and texture of surface according to project requirements

The HAURATON Product Finder

Find the right product for your project, information for your planning, tender texts, product illustrations, technical drawings and CAD data etc.
Unfold all groups
  • FASERFIX BIG BL 100 with galvanised angle housings, up to load class F 900

    • FASERFIX BIG BL 100 with ductile iron angle housings, up to load class F 900

      • FASERFIX BIG BL 100 with stainless steel angle housings, up to load class F 900

        • FASERFIX BIG BL 150 with galvanised angle housings, up to load class F 900

          • FASERFIX BIG BL 150 with ductile iron angle housings, up to load class F 900

            • FASERFIX BIG BL 150 with stainless steel angle housings, up to load class F 900

              • FASERFIX BIG BL 200 with galvanised angle housings, up to load class F 900

                • FASERFIX BIG BL 200 with ductile iron angle housings, up to load class F 900

                  • FASERFIX BIG BL 200 with stainless steel angle housings, up to load class F 900

                    • FASERFIX BIG BL 300 with galvanised angle housings, up to load class F 900

                      • FASERFIX BIG BL 300 with ductile iron angle housings, up to load class F 900

                        • FASERFIX BIG BL 300 with stainless steel angle housings, up to load class F 900

                          Unfold all groups
                          deconstructed product image highlighting the most important parts of the product
                          Show descriptions Hide descriptions

                          Channel base

                          Various cover options

                          Sump unit

                          End cap

                          End cap with outlet

                          Screw fastening option

                          Expansion joint insert

                          System components
                          FASERFIX BIG BL

                          Test Certificates

                          instytut techniczny wojsk lotniczych

                          FASERFIX BIG BL drainage channels have passed tests performed by the Air Force Institute of Technology in Warsaw. The Air Force Institute of Technology (ITWL) is a leading research centre for the support of military aviation technology supervised by the Minister of National Defence. The research carried out showed:

                          Frost resistance – F300 after 211 cycles according to NO-17-A204:2015

                          a) Weight loss -1.3% after 225 cycles in Nordway KF de-icing agent tested according to NO-17-A204:2015

                          b) Compressive strength 105.4 MPa after 211 cycles in de-icing agent

                          Compressive strength

                          94.1 MPa after 28 days, concrete class C50/60 according to PN-88/B-06250 standard

                          Tensile strength

                          5.8 MPa tested according to EN 12390-6:2011

                          Absorption

                          3.74% in de-icing agent Nordway KF

                          Resistance to spalling

                          0.005 kg/m2 in 20% urea solution after 56 cycles

                          Peel strength

                          5.6 MPa after 56 cycles in sodium formate solution according to PN-EN 1542:2000
