Article No. 32831
SLOTTED COVERS 150, neck height 200 mm, class E 600
Access cover, SW 18 mm, stainless steel, asymmetric, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

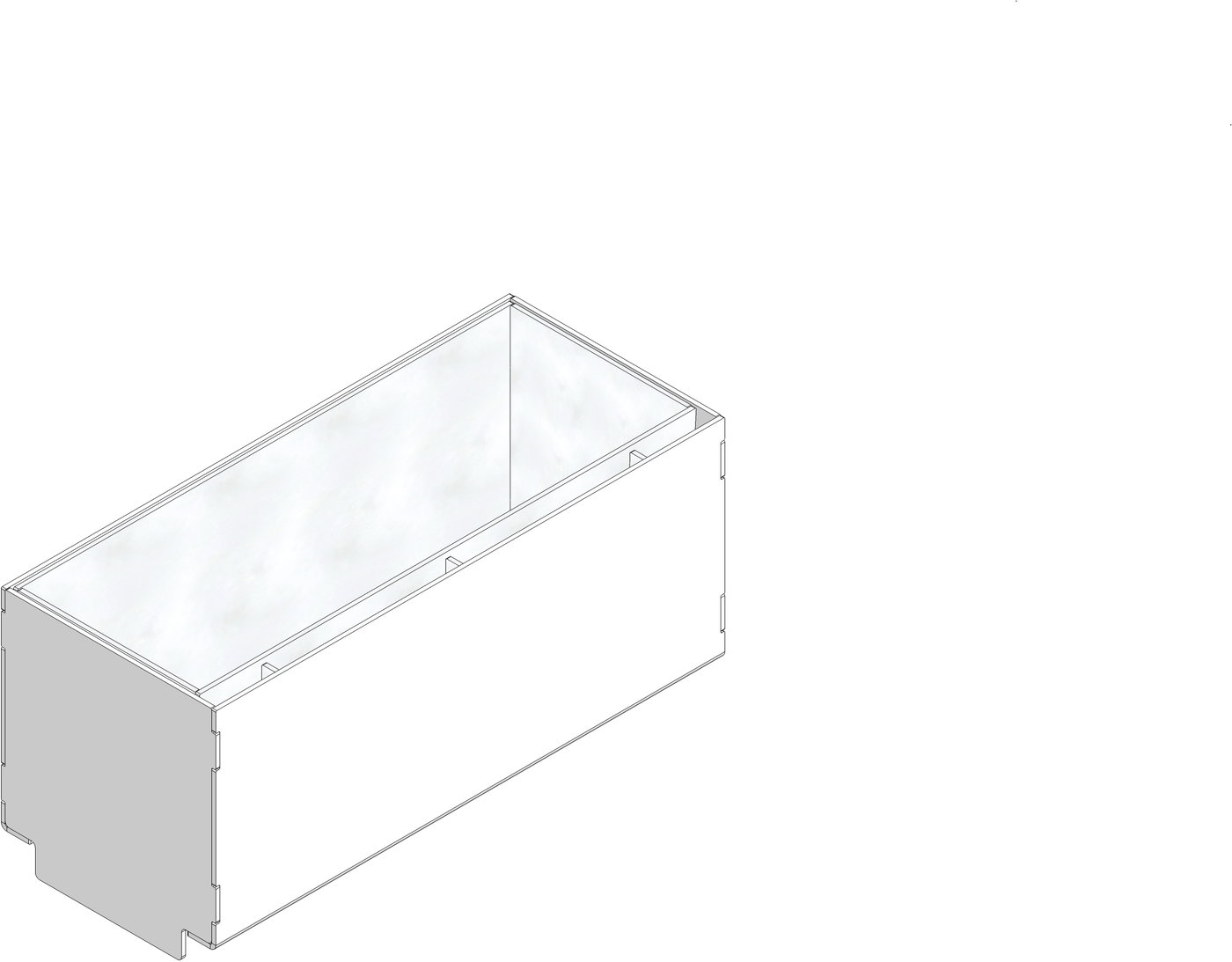

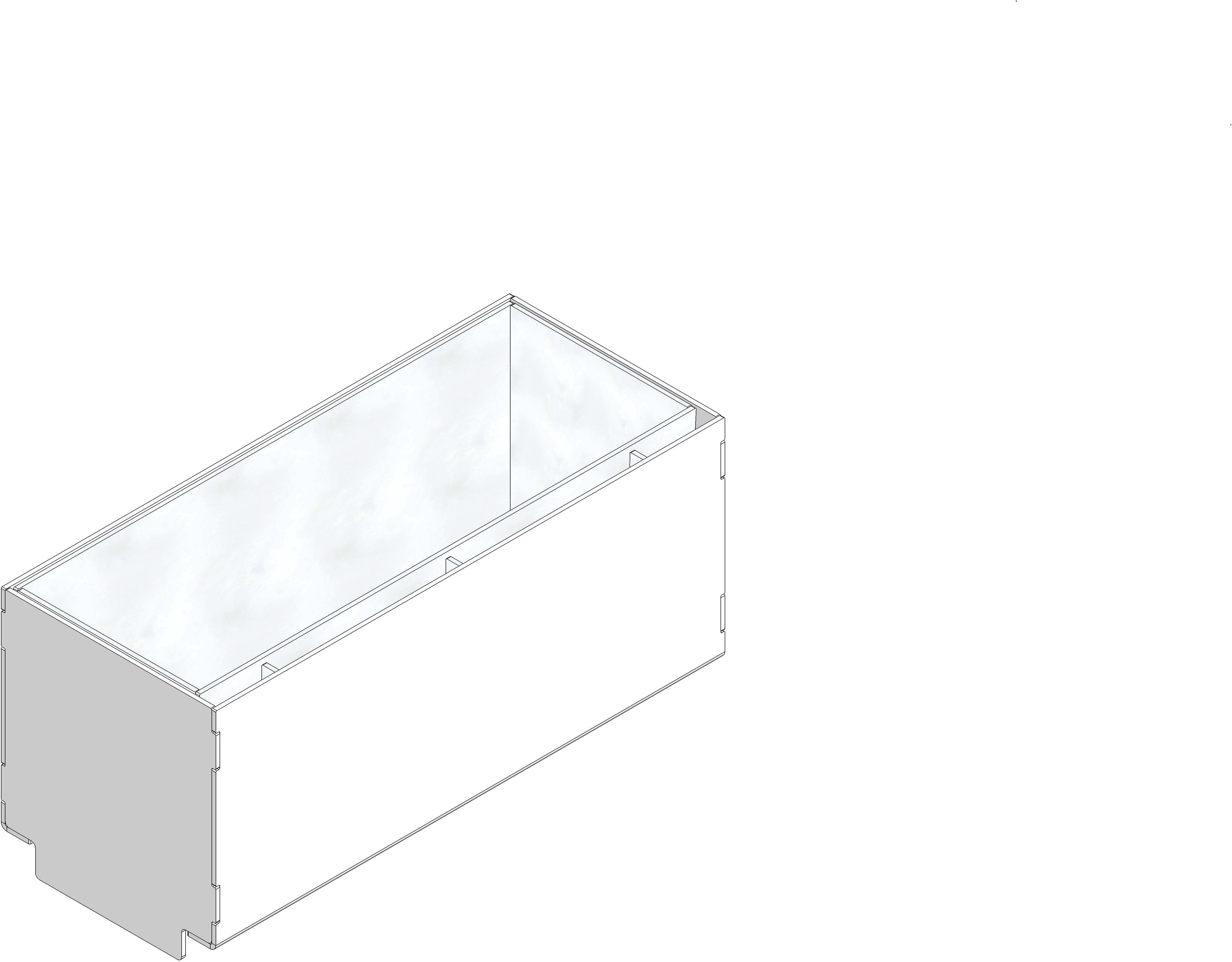

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32831
Length
500 mm
Width
210 mm
Height
204 mm
Inlay depth
204 mm
Weight
20.30 kg
Material
Stainless steel 1.4301
Intake cross-section
202.0 cm²/m
Nominal size
150
Inlet opening
500 x 18 mm
Fixing type
Loose blatant, Locking handle
Material grating
Stainless steel 1.4301
Regulations
EN 1433
Sales text
Access cover SW 18 mm, neck height 200 mm, stainless steel, asymmetric, cl. E 600, FASERFIX STANDARD 150, 0.5 m
Product description
FASERFIX STANDARD 150 - Access cover for slotted cover SW 18 mm, neck height 200 mm, asymmetric, stainless steel CNS 1.4301, load class A 15 - E 600 according to EN 1433, length 500 mm, item no. 32831
Packaging unit
30
Declaration of Performance
