Article No. 10229
STEELFIX REGULAR 155
FIBRETEC design slotted grating, SW 110/9 mm, in the colour black, anti-slip resistance class R11, screwable from type 75, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

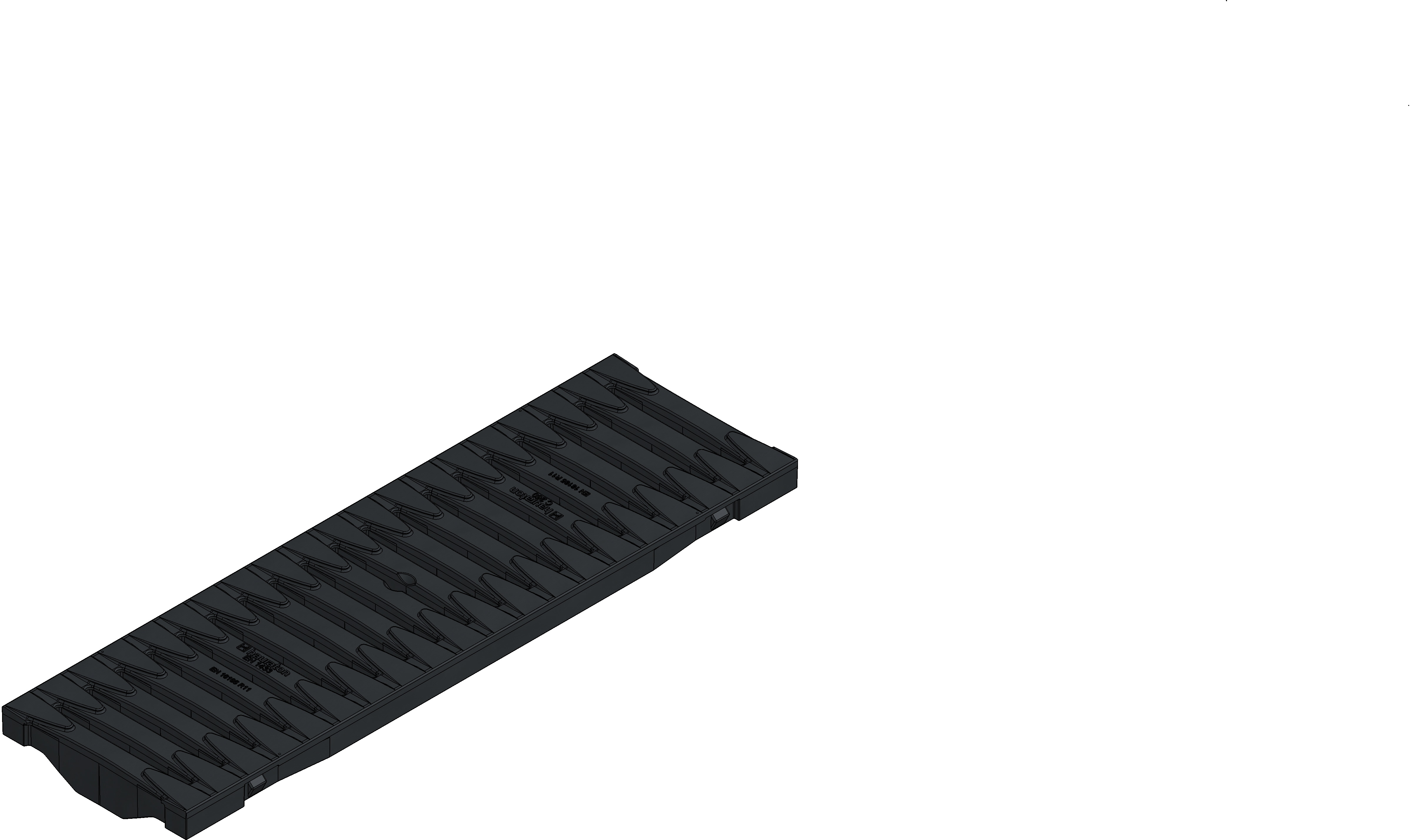

Product image
Technical drawing
Drawing (CAD)

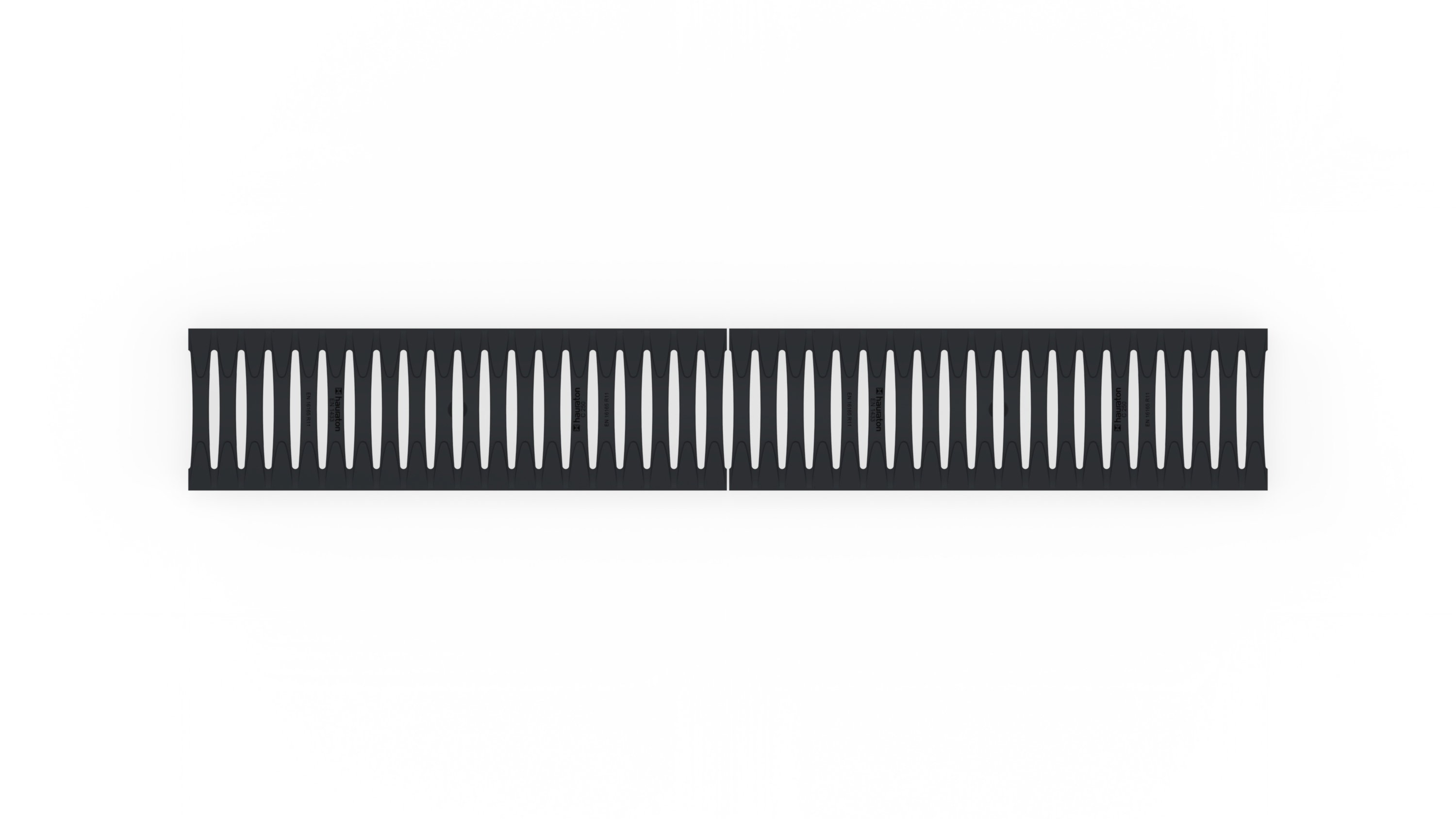

Top view
Data Sheet
Technical information and metrics
Article No.
10229
Length
500 mm
Width
149 mm
Height
38 mm
Inlay depth
20 mm
Weight
1.05 kg
Material
reinforced Polyamide
Intake cross-section
372.0 cm²/m
Nominal size
155
Inlet opening
110 x 9 mm
Fixing type
Locking handle
Material grating
reinforced Polyamide
Regulations
DIN 51130, EN 16165
Sales text
FIBRETEC Design slotted grating SW 110/9 mm, black, pedestrian and wheelchair-accessible, anti-slip resistance class R11, screwable from type 75, DACHFIX STEEL/STEELFIX REGULAR 155, 0.5 m
Product description
DACHFIX STEEL/STEELFIX REGULAR 155 -FIBRETEC design slotted grating SW 110/9 mm, slip resistance class R11, made of fibre-reinforced polyamide, black, pedestrian and wheelchair-accessible, screwable from type 75, installation length 500 mm, item no. 10229
Packaging unit
-
