Article No. 40046
sump unit
for NW 200, with silt bucket made of recycled PP, with GUGI ductile iron mesh grating MS 15/25 mm, black, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

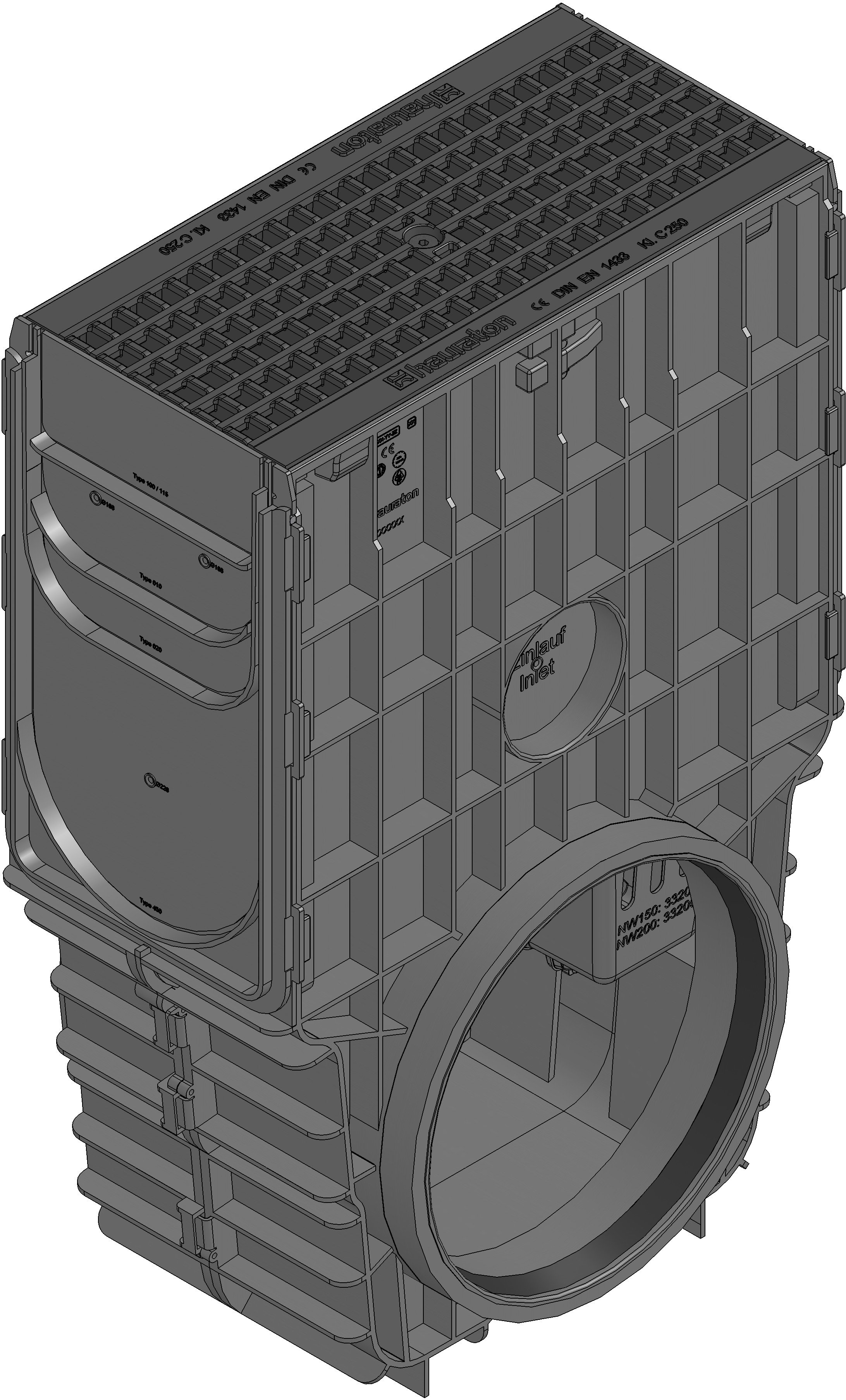

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40046
Length
500 mm
Width
262 mm
Height
800 mm
Inlay depth
6 mm
Weight
15.57 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled polypropylene, Steel black galvanised
Intake cross-section
836.0 cm²/m
Nominal size
200
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX STANDARD 200, 0.5 m
Product description
RECYFIX STANDARD 200 - Sump unit made of recycled polypropylene, on both sides preformed pipe connection element DN/OD 315, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX STANDARD 200, GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS -500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x262x800 mm, item no. 40046
Packaging unit
4
