Article No. 88205
AQUAFIX F Grease separator
F 20 PL
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

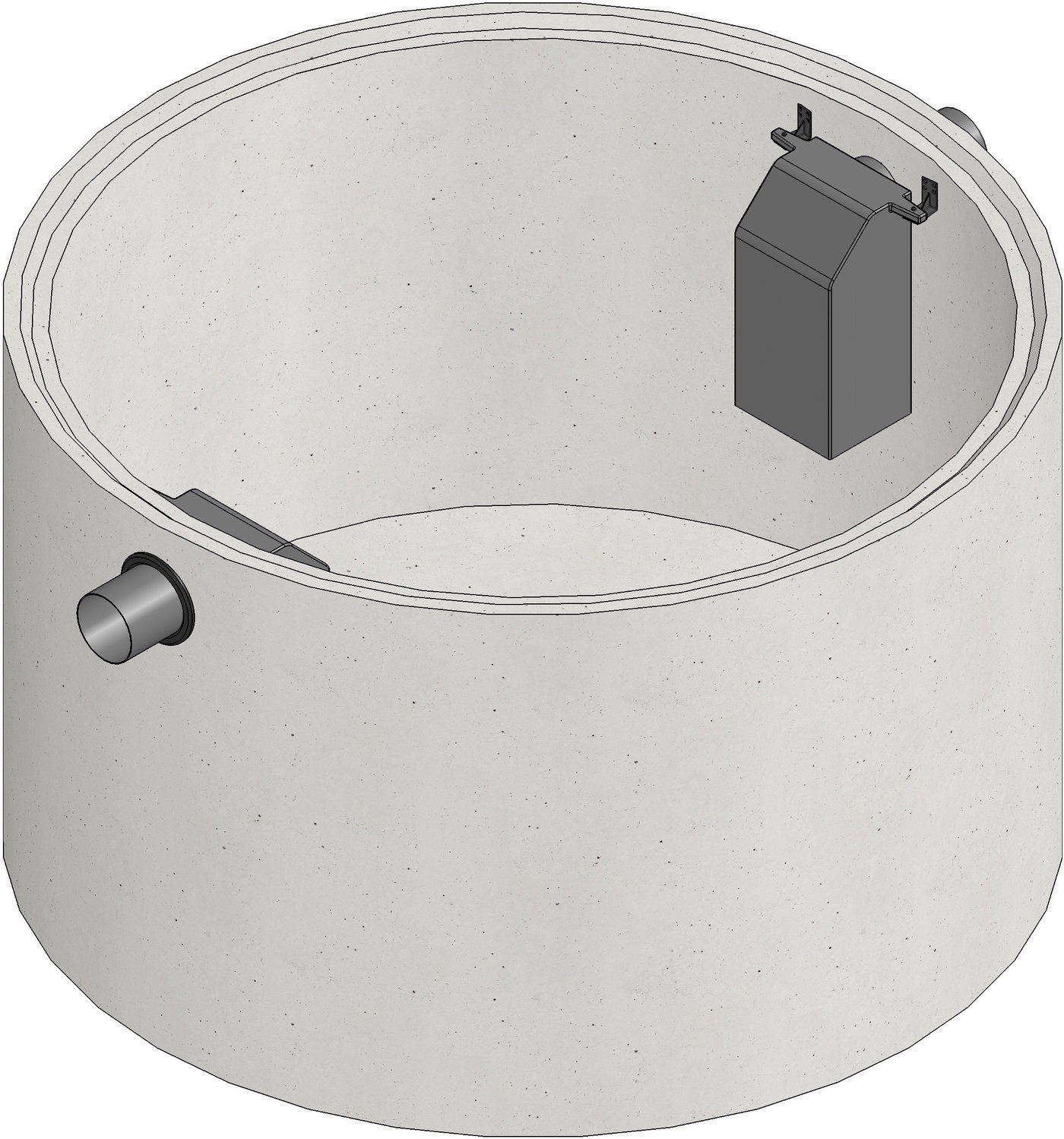

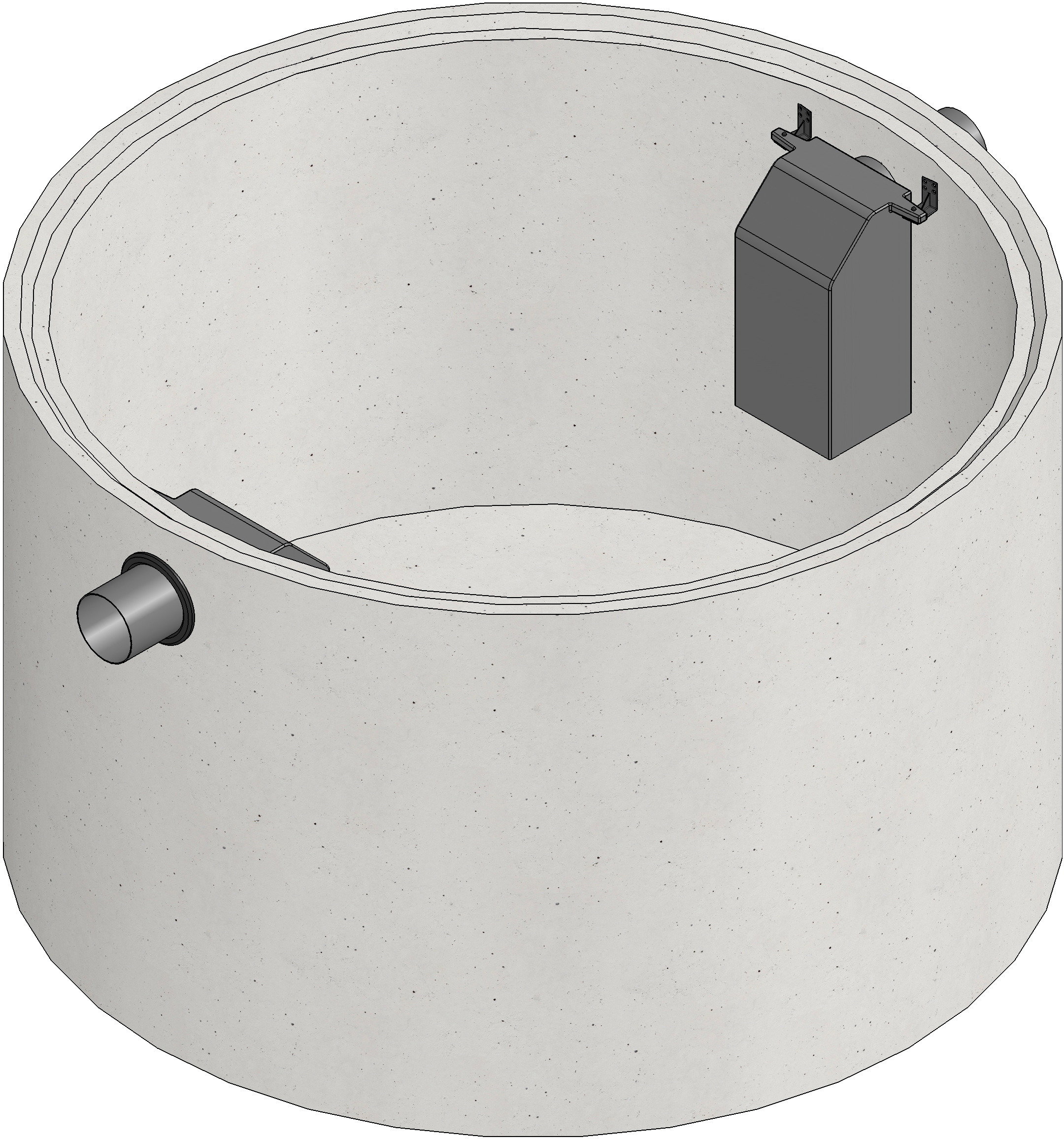

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88205
Length
3150 mm
Width
2740 mm
External diameter
2740 mm
Height
1670 mm
Weight
5481.00 kg
Material
AQUAFIX PE, Standard concrete acc. norm
Nominal size
20.00 l/s
Bypass
without bypass
Flow performance
20.0 l/s
sludge trap capacity
-
Separator capacity
5700 l
DN in-/outlet
200 mm
HE height inlet
1318 mm
HA height outlet
1293 mm
DNE Manhole 1
625 mm
Regulations
EN 1825
Sales text
AQUAFIX Grease separator single unit F 20 PL made of concrete
Product description
AQUAFIX Grease separator single unit F 20 PL made of concrete, item no. 88205
Packaging unit
-
