Article No. 88347

AQUAFIX K Coalescence separator

K 50

Delivery time on request

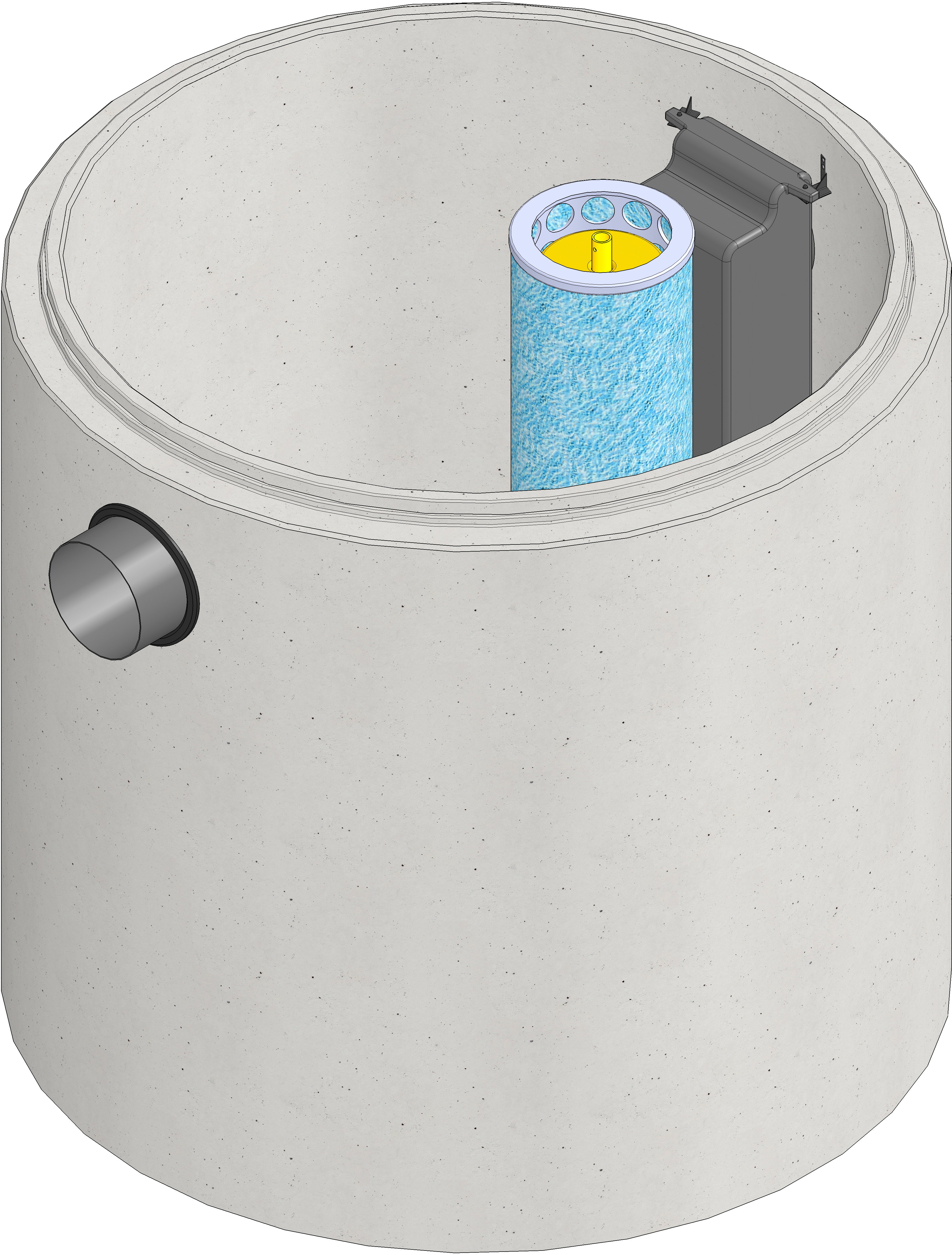

Product image

Technical drawing

Drawing (CAD)

Installation drawing

AQUAFIX - Construction site drawing

Data Sheet

Technical information and metrics

Article No.
88347
Length
2300 mm
Width
2300 mm
Height
2080 mm
Weight
6052.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE, Standard concrete acc. norm
Nominal size
50
Bypass
without bypass
Flow rate
50 l/s
Separator capacity
3750 l
Pump chamber
ohne
Sludge trap capacity
-
Diameter of manhole 1
625 mm
Diameter of manhole 2
-
Inlet height
1615 mm
Inlet diameter
315 mm
Outlet height
1590 mm
Outer diameter
2300 mm
Regulations
EN 858
Sales text
AQUAFIX K 50 PL Coalescence separator made of concrete
Product description
AQUAFIX K 50 PL Coalescence separator made of concrete, item no. 88347
Brochure text
K 50
