Article No. 88371
AQUAFIX SK Coalescence separator with sludge trap
SK 06/0600
Delivery time on request

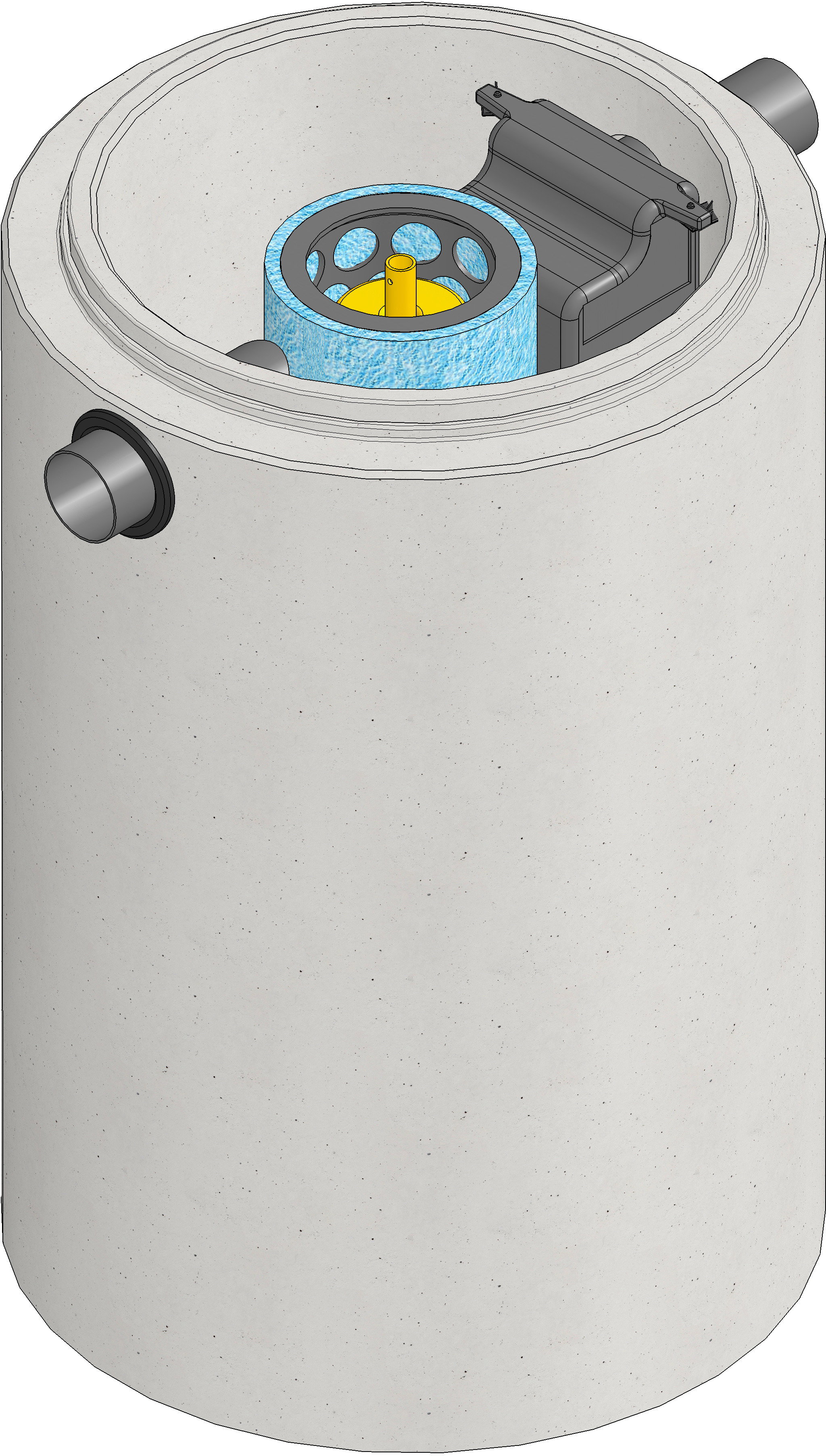

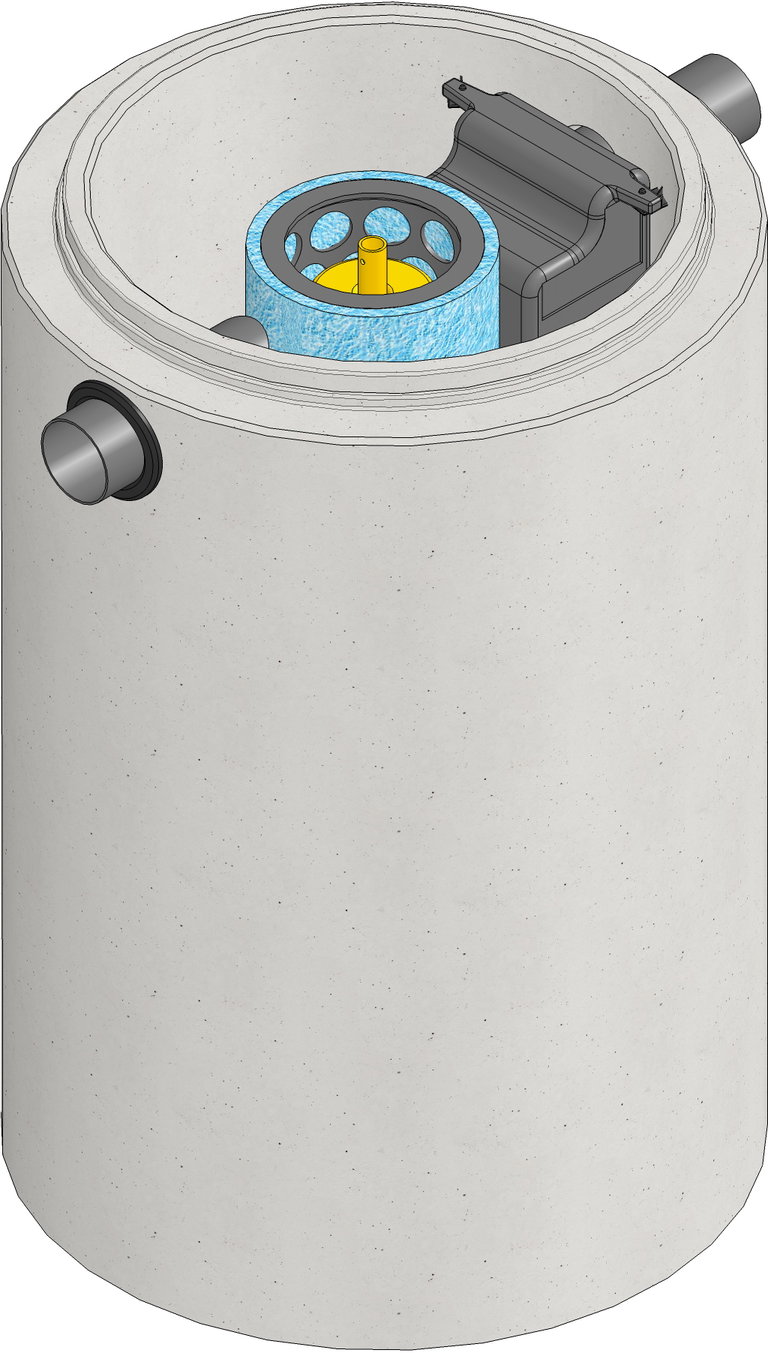

Product image

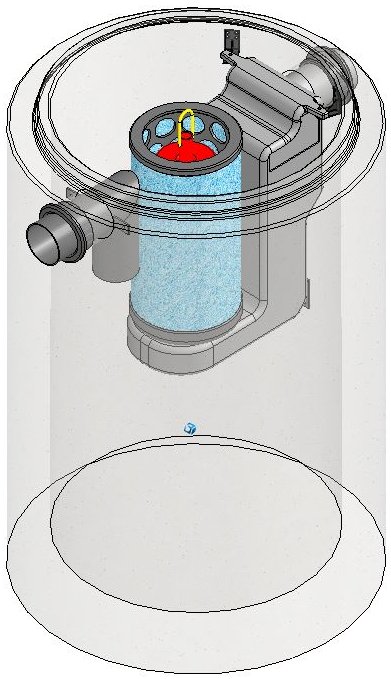

Technical drawing
Drawings
Drawing (CAD)
Installation drawing
AQUAFIX - Construction site drawing
Data Sheet
Technical information and metrics
Article No.
88371
Length
1300 mm
Width
1300 mm
Height
1990 mm
Weight
2686.00 kg
Material
AQUAFIX coalescence material, AQUAFIX PE, Standard concrete acc. norm
Nominal size
6
Bypass
without bypass
Flow rate
6 l/s
Separator capacity
550 l
Pump chamber
ohne
Sludge trap capacity
600 l
Diameter of manhole 1
625 mm
Diameter of manhole 2
-
Inlet height
1680 mm
Inlet diameter
160 mm
Outlet height
1649 mm
Outer diameter
1300 mm
Regulations
EN 858
Sales text
AQUAFIX Sludge Trap-Coalescence Separator SK 06/0600 PL made of concrete
Product description
AQUAFIX Sludge Trap-Coalescence Separator SK 06/0600 PL made of concrete, item no. 88371
Brochure text
SK 06/0600
