Article No. 33234
FASERFIX POINT KS 30/30, Point drainage, class D 400
2-part, with foul air trap and silt bucket made of recycled PP, with longitudinal ductile iron grating, bar distance 8 mm, KTL-coated, PVC-U pipe connection DN/OD 110
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

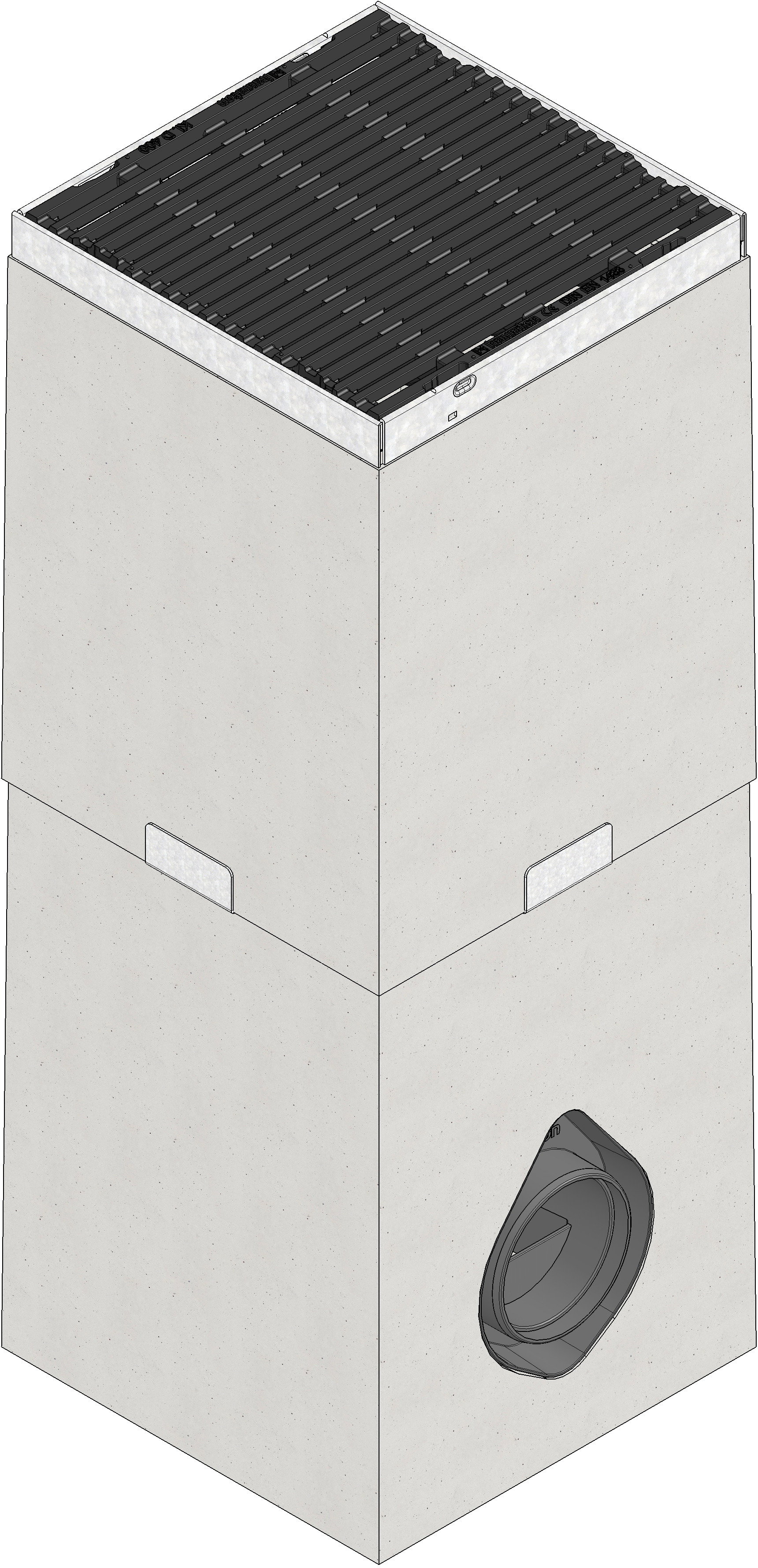

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
33234
Length
300 mm
Width
300 mm
Height
802 mm
Weight
85.30 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete, recycled polypropylene, strip galvanized steel
Inlet opening
8 x 0 mm
Material grating
Ductile iron GJS 500-7 with KTL-coating
Sales text
FASERFIX POINT KS 30/30 Gully, 2-part, with all-round edge frame made of galvanised steel, with foul air trap, silt bucket made of recycled PP, with integrated PVC-U pipe connection DN/OD 110 and longitudinal ductile iron grating, bar distance 8 mm, KTL-c
Product description
FASERFIX POINT KS 30/30 - Gully, 2-part, made of fibre-reinforced concrete, with all-round edge frame made of galvanised steel, with integrated PVC-U pipe connection DN/OD 110, with foul air trap, silt bucket made of recycled polypropylene and longitudinal ductile iron grating, bar distance 8 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with boltless quick-locking system SIDE-LOCK, load class A 15 - D 400, LxWxH 300x300x802 mm, item no. 33234
Packaging unit
-
Tender Texts
Installation example
Asphalt class B 125,
Pavement class B 125,
Pavement class D 400,
Asphalt class D 400 - E 600,
Pavement / green space class B 125, 3-piece
Pavement class D 400, 3-piece
Concrete class A 15 - E 600,
