Article No. 33487
FASERFIX POINT KS 30/30, Point drainage, class D 400
with foul air trap and silt bucket made of recycled PP, with longitudinal ductile iron grating, bar distance 8 mm, galvanised, with PVC-U pipe connection DN/OD 160
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

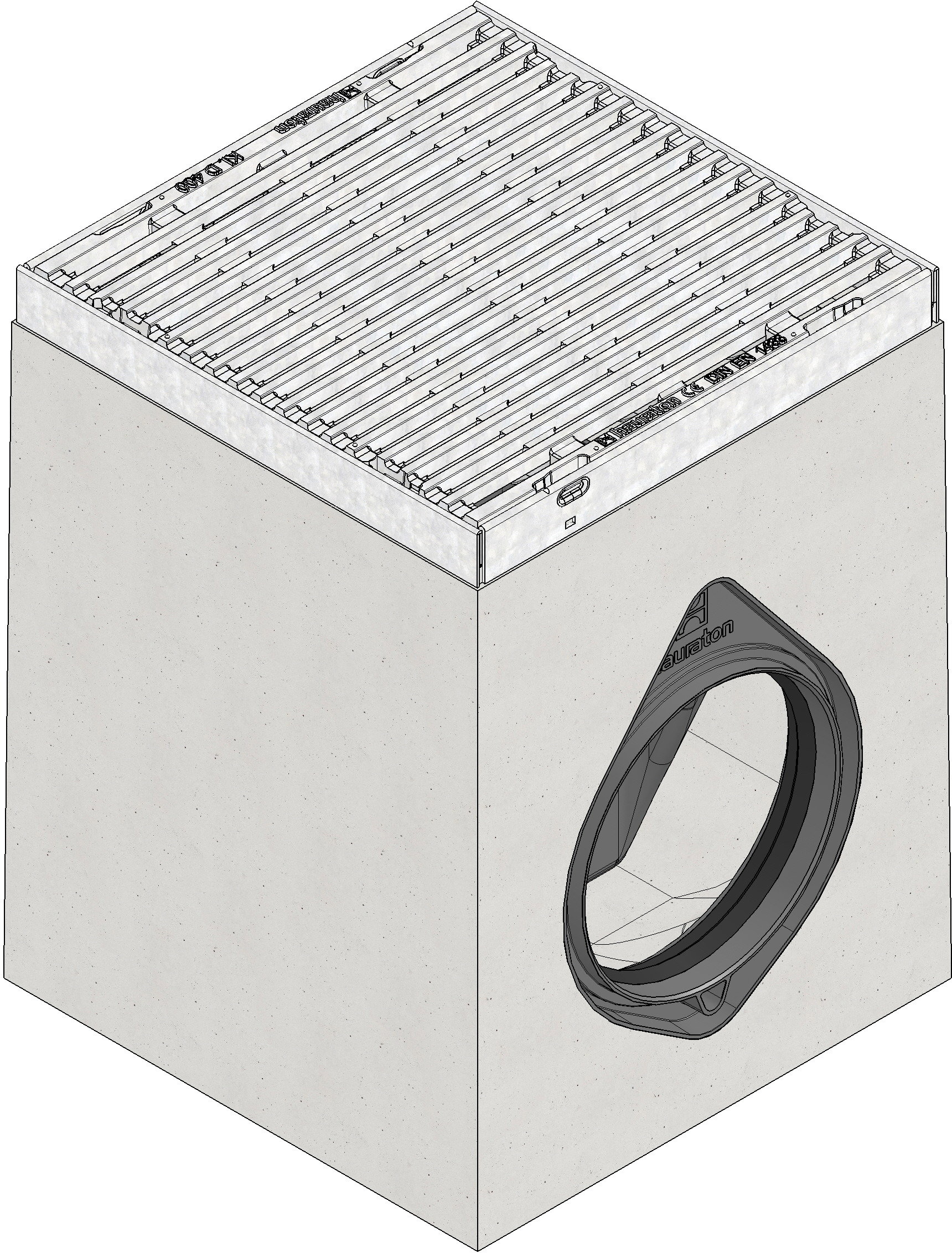

Product image
Technical drawing
Drawing (CAD)
Drawing

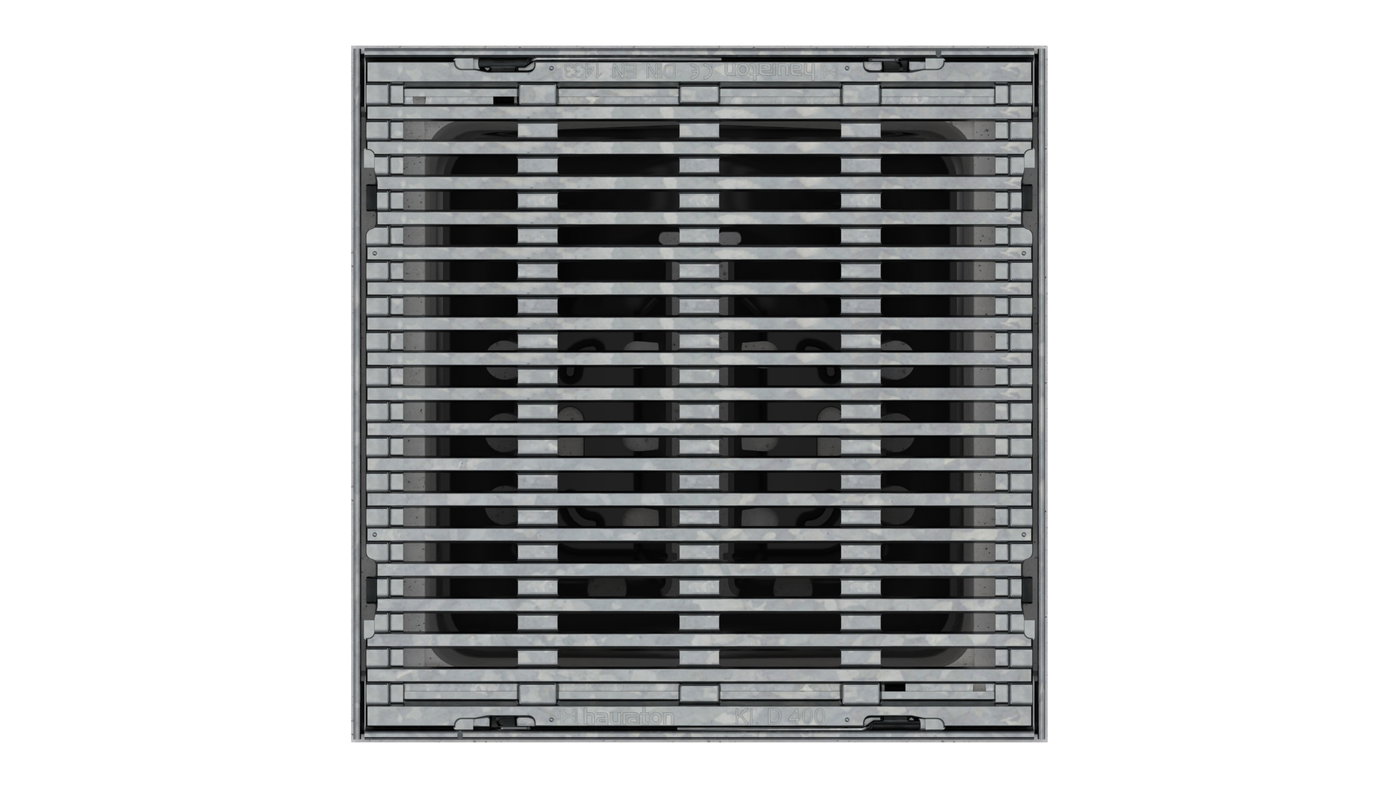

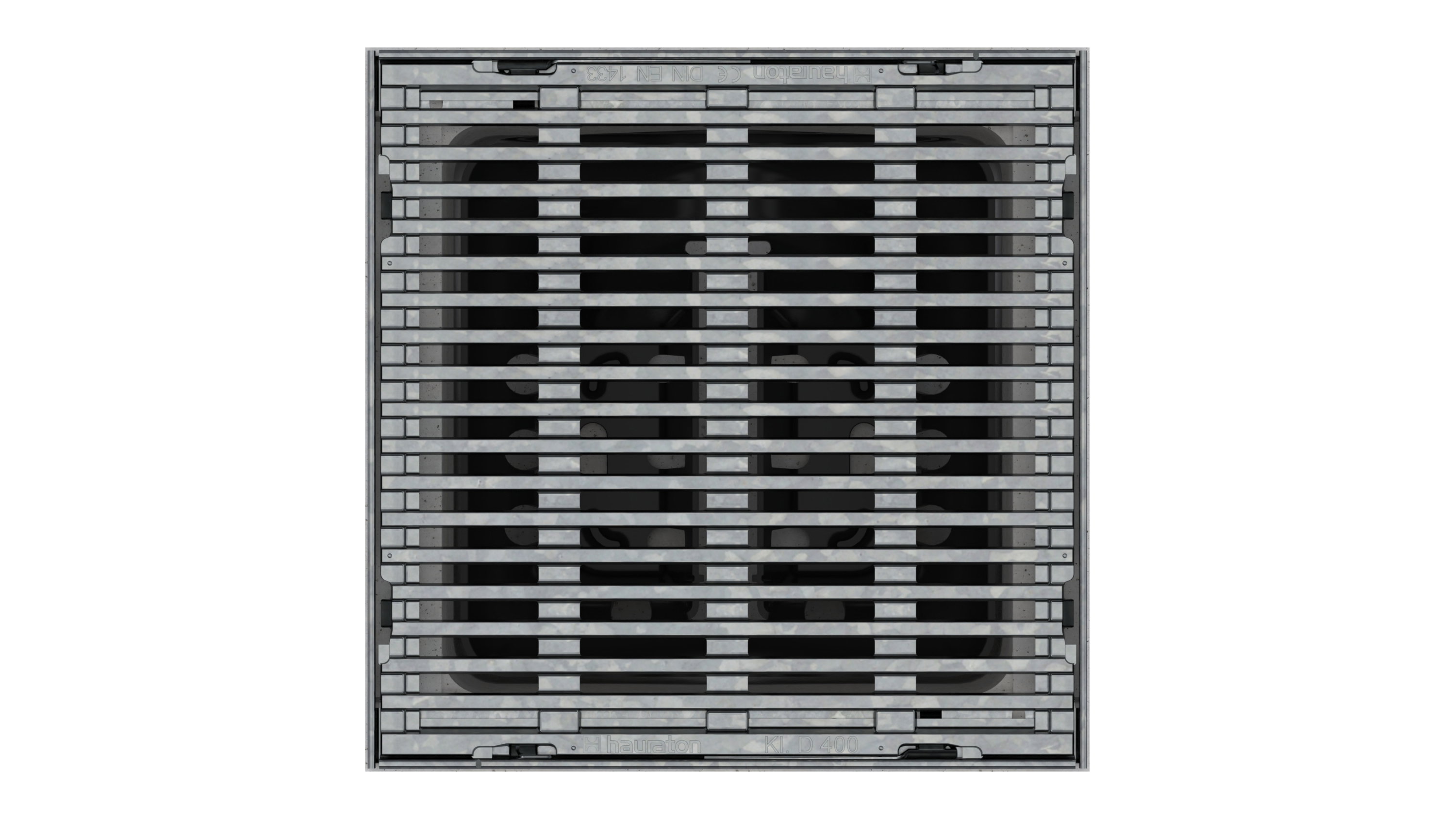

Top view
Data Sheet
Technical information and metrics
Article No.
33487
Length
300 mm
Width
300 mm
Height
400 mm
Weight
46.70 kg
Material
Ductile iron GJS 500-7 galvanised, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
8 x 0 mm
Material grating
Ductile iron GJS 500-7 galvanised
Sales text
FASERFIX POINT KS 30/30 Gully, with all-round edge frames made of galvanised steel, with silt bucket made of recycled PP, with integrated PVC-U pipe connection DN/OD 160 and longitudinal ductile iron grating, bar distance 8 mm, galvanised, cl. D 400
Product description
FASERFIX POINT KS 30/30 - Gully made of fibre-reinforced concrete, with all-round edge frame made of galvanised steel, with integrated PVC-U pipe connection DN/OD 160, with silt bucket made of recycled polypropylene and longitudinal ductile iron grating, bar distance 8 mm, made of spheroidal ductile iron EN-GJS-500-7, galvanised, with boltless quick-locking system SIDE-LOCK, load class A 15 - D 400, LxWxH 300x300x400 mm, item no. 33487
Packaging unit
-
Tender Texts
Installation example
Pavement class D 400,
Pavement / green space class B 125,
Pavement class D 400,
Pavement class A 15 - C 250,
Asphalt class A 15 - E 600,
Concrete class A 15 - E 600,
