Article No. 33489
FASERFIX POINT KS 30/30, Point drainage, class E 600
with foul air trap and silt bucket made of recycled PP, with GUGI-ductile iron mesh grating MS 15/25 mm, black, with PVC-U pipe connection DN/OD 160
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

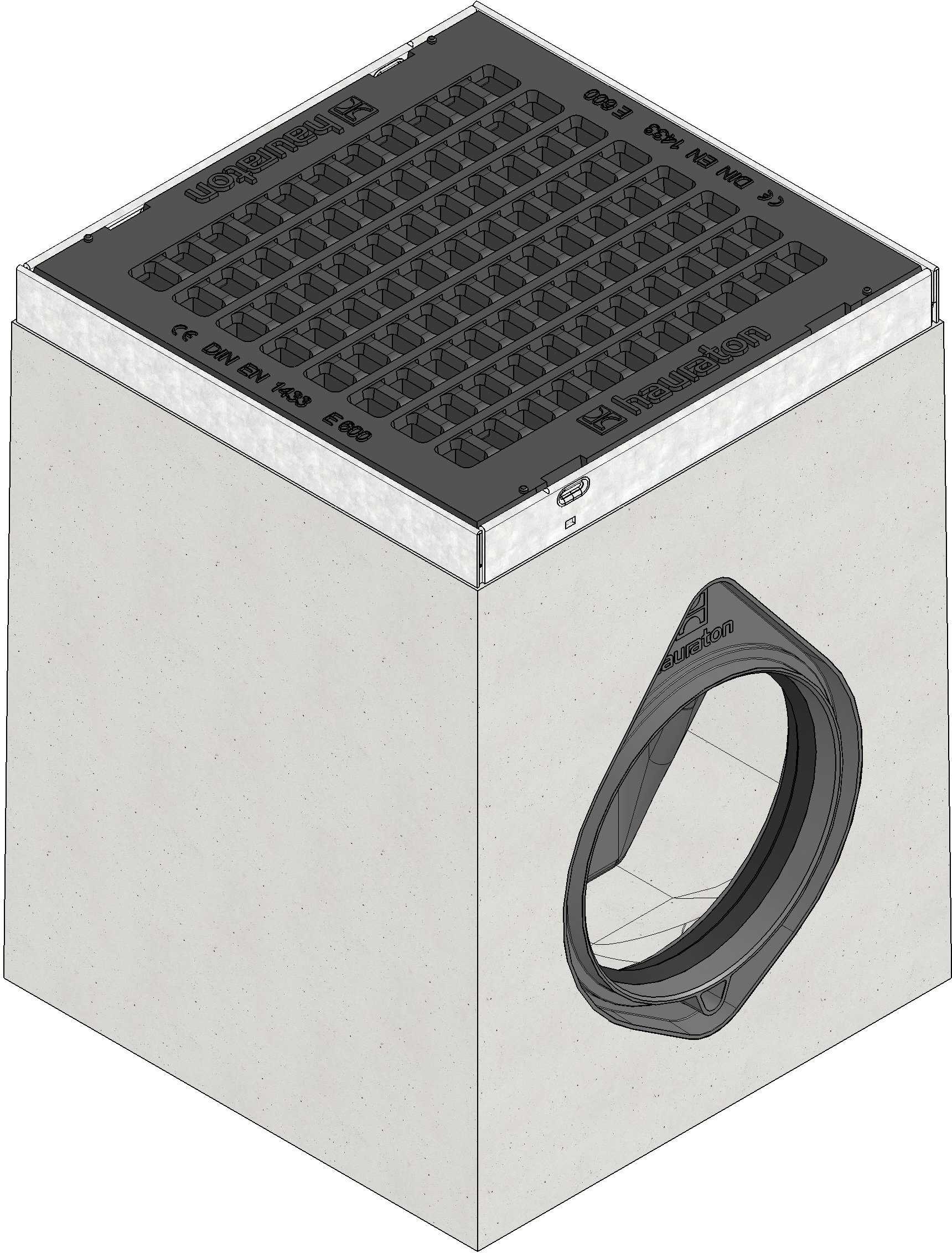

Product image
Technical drawing
Drawing (CAD)
Drawing

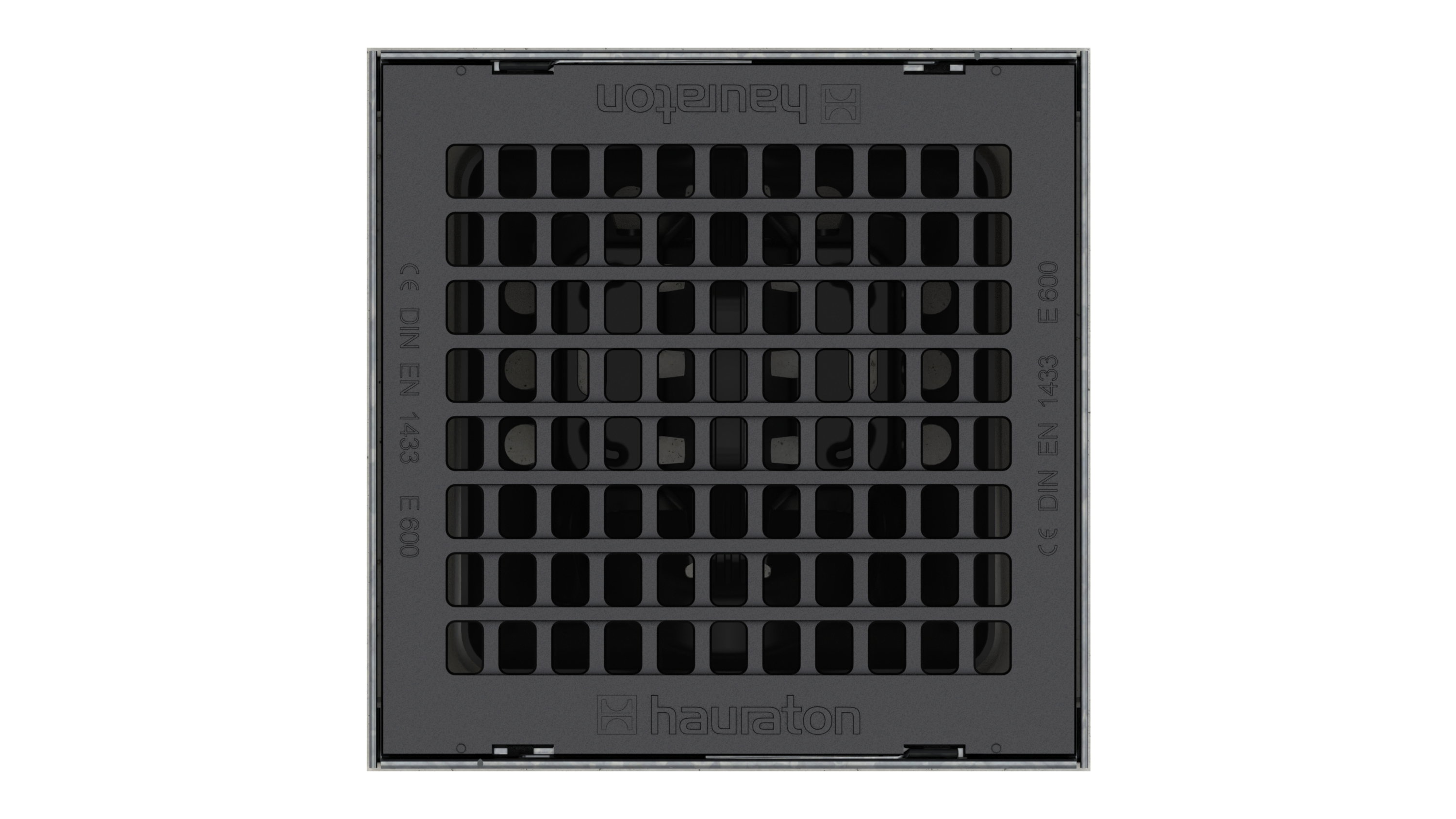

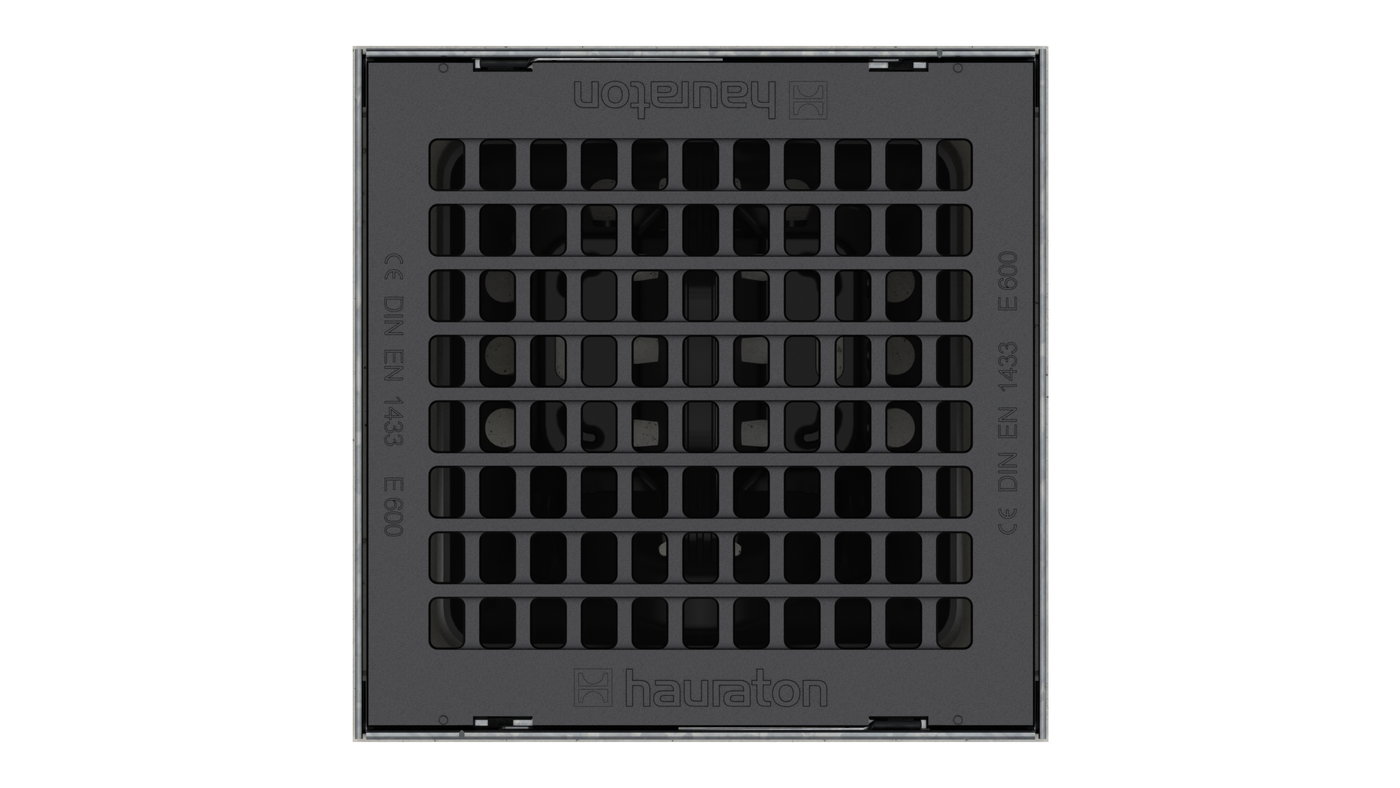

Top view
Data Sheet
Technical information and metrics
Article No.
33489
Length
300 mm
Width
300 mm
Height
400 mm
Weight
49.10 kg
Material
Ductile iron GJS 500-7, fibre-reinforced concrete, recycled, modified Polypropylene, strip galvanized steel
Inlet opening
15 x 25 mm
Material grating
Ductile iron GJS 500-7
Sales text
FASERFIX POINT KS 30/30 Gully, with all-round edge frames made of galvanised steel, with silt bucket made of recycled PP, with integrated PVC-U pipe connection DN/OD 160 and GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. E 600
Product description
FASERFIX POINT KS 30/30 - Gully made of fibre-reinforced concrete, with all-round edge frame made of galvanised steel, with integrated PVC-U pipe connection DN/OD 160, with silt bucket made of recycled polypropylene and GUGI-ductile iron mesh grating MS 15 /25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with boltless quick-locking system SIDE-LOCK, load class A 15 - E 600, LxWxH 300x300x400 mm, item no. 33489
Packaging unit
12
Tender Texts
Installation example

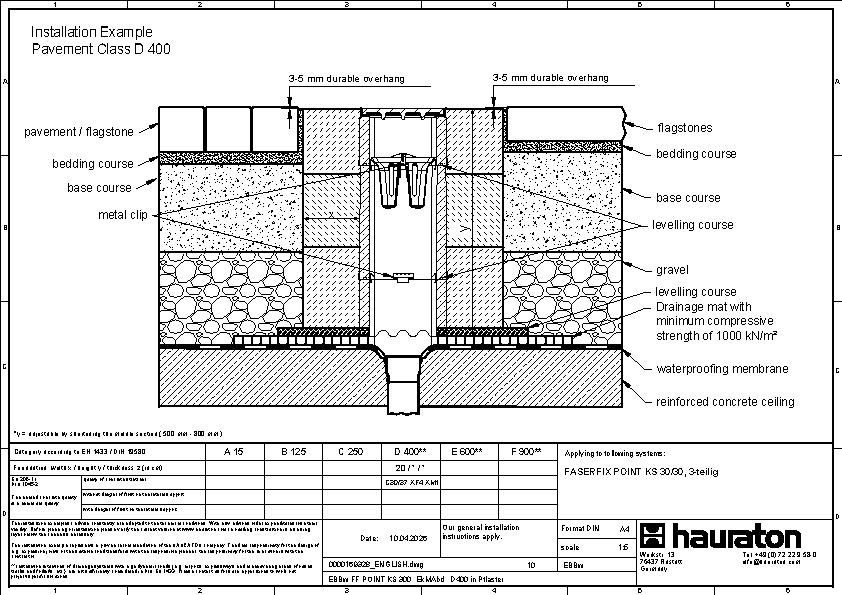

Pavement class D 400,

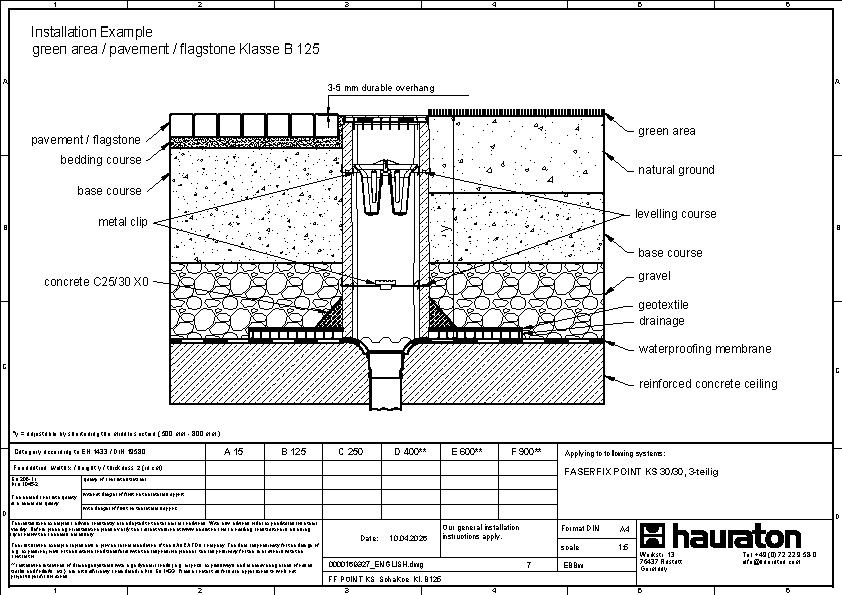

Pavement / green space class B 125,
Pavement class D 400,
Pavement class A 15 - C 250,
Asphalt class A 15 - E 600,
Concrete class A 15 - E 600,
