Article No. 40181
FASERFIX STANDARD 150, class B 125
Mesh grating MS 30/10 mm, galvanised, 0.5 m
Smaller quantities can be delivered immediately from stock, items will soon be available again in larger quantities
Questions?
Our experienced planning team will be happy to help you.
Get in touch

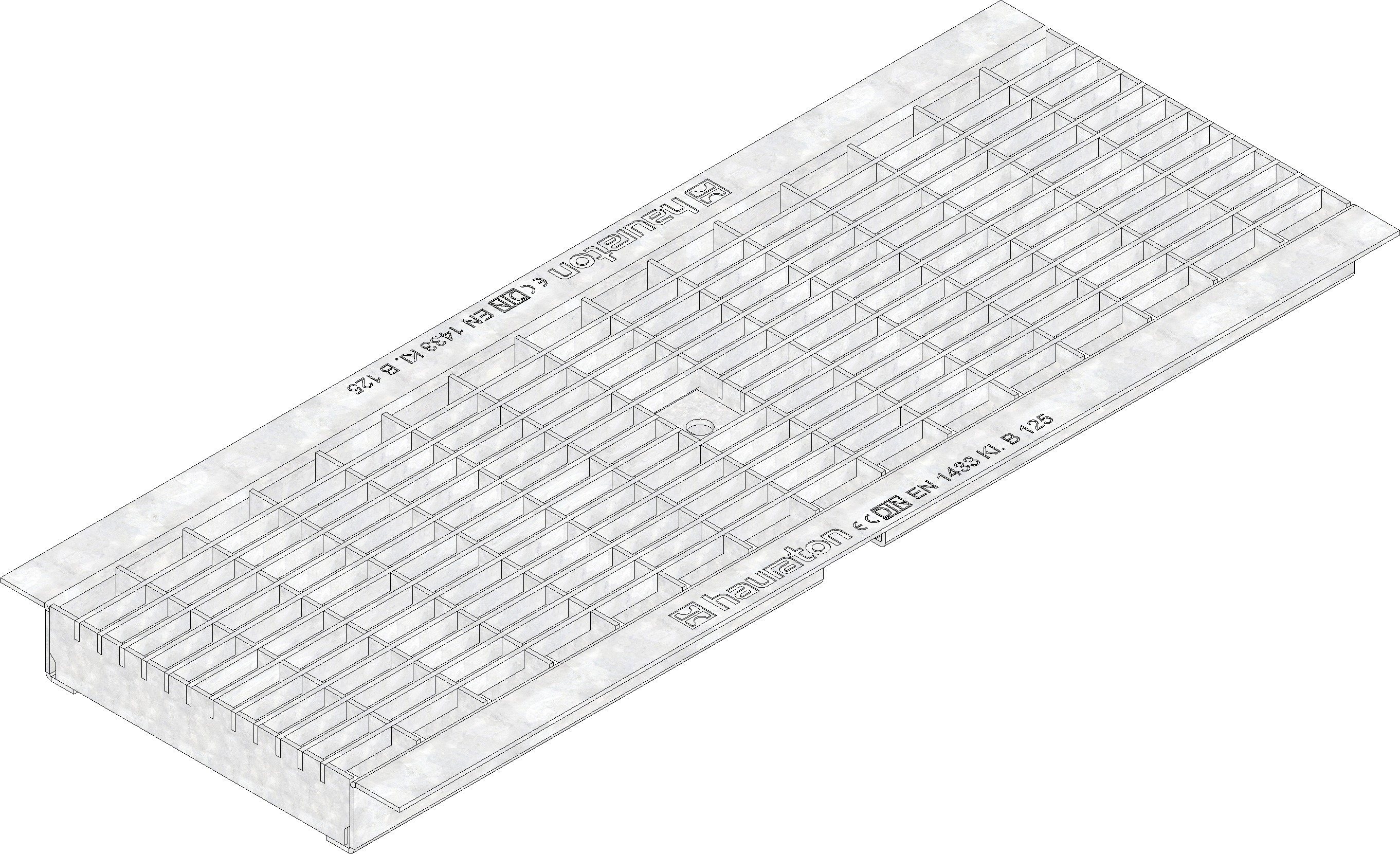

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40181
Length
500 mm
Width
196 mm
Height
33 mm
Inlay depth
32 mm
Weight
2.90 kg
Material
hot-dip galvanised steel
Intake cross-section
1098.0 cm²/m
Nominal size
150
Inlet opening
30 x 10 mm
Fixing type
Loose blatant, Locking handle
Material grating
hot-dip galvanised steel
Regulations
EN 1433
Sales text
Mesh grating MS 30/10, galvanised, cl. B 125, RECYFIX STANDARD 150, 0.5 m
Product description
RECYFIX STANDARD 150 - Mesh grating MS 30/10 mm, galvanised, overlying, load class A 15 - B 125 according to EN 1433, installation length 500 mm, item no. 40181
Packaging unit
200
Declaration of Performance
