Article No. 42671
RECYFIX PLUS 150, class C 250
Type 100 with ductile iron grating, SW 130/6 mm, black, stainless steel, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

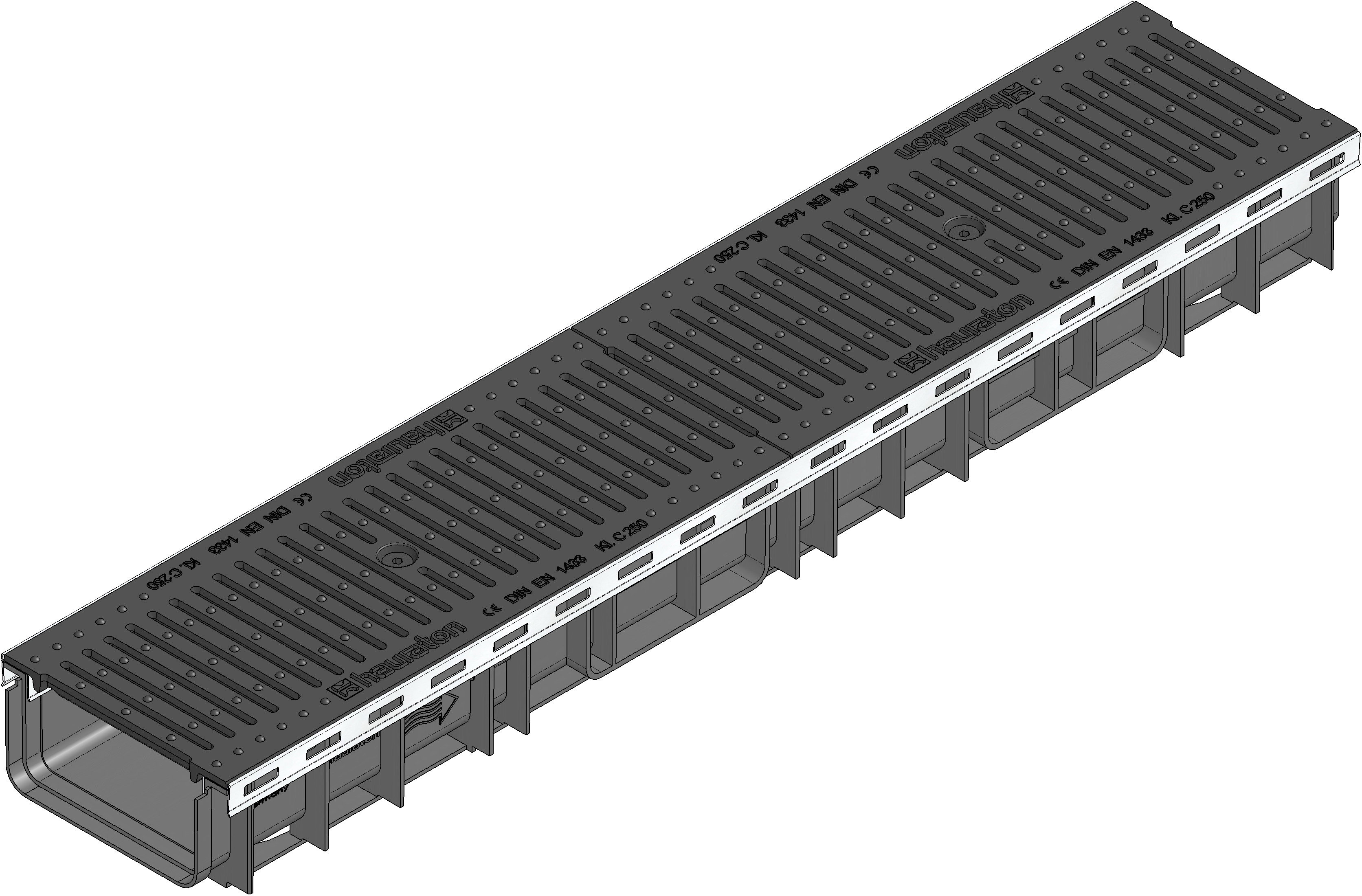

Product image

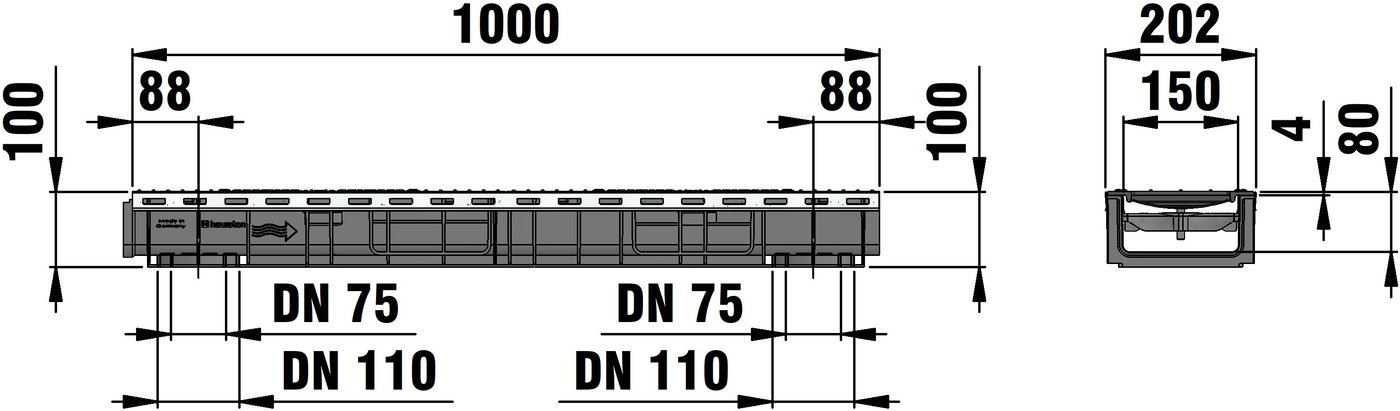

Technical drawing
Drawing (CAD)
Drawing

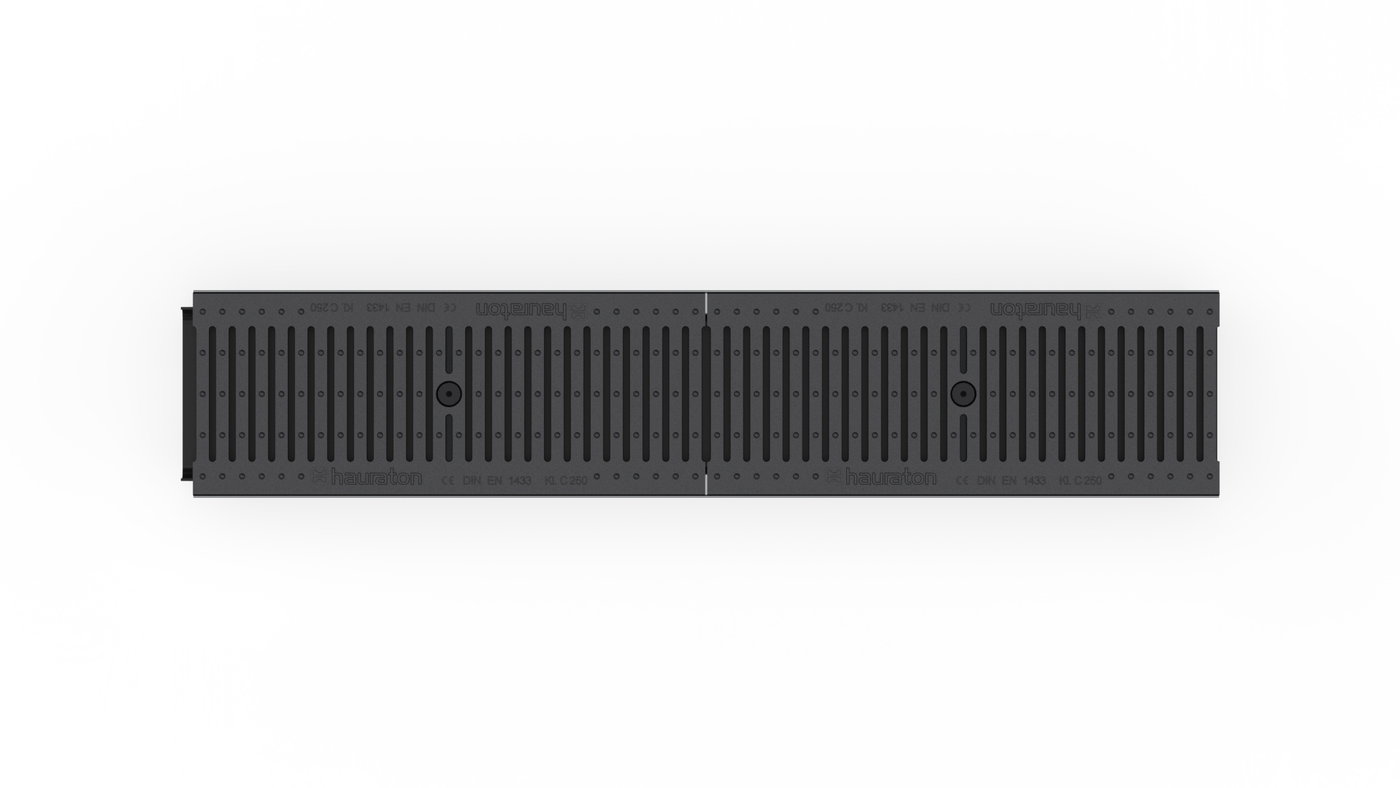

Top view
Data Sheet
Technical information and metrics
Article No.
42671
Length
1000 mm
Width
202 mm
Height
100 mm
Inlay depth
6 mm
Weight
10.63 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Stainless steel 1.4301, Steel black galvanised
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
117 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
angle housing material
Stainless steel 1.4301
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PLUS 150 Channel type 100 with edge frames made of stainless steel and ductile iron grating SW 130/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PLUS 150 type 100 - Channel body made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, with vertical connection possibility DN/OD 75/110, with ductile iron grating SW 130/6 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x202x100 mm, item no. 42671
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125, Type 100
Cemented floor class B 125 - C 250,
Pavement class C 250, Type 100
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
