Article No. 41204
RECYFIX STANDARD 100, trafficable
Type 60 with slotted grating SW 80/9 mm, stainless steel, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

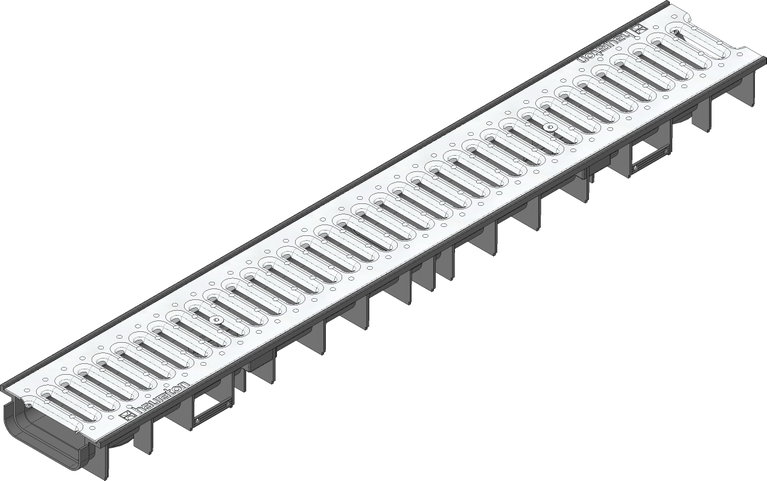

Product image
Top view
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
41204
Length
1000 mm
Width
150 mm
Height
60 mm
Inlay depth
3 mm
Weight
3.25 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
266.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 60 with slotted grating SW 80/9 mm, stainless steel, trafficable, locked, 1 m
Product description
RECYFIX STANDARD 100 type 60 - Channel body made of recycled polypropylene, according to EN 1433, with vertical connection possibility DN/OD 80, with slotted grating SW 80/9 mm, made of stainless steel CNS 1.4301, overlying, with locking, trafficable, LxWxH 1000x150x60 mm, item no. 41204
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125, Type 60, Type 80
Cemented floor class A 15 - C 250,
Pavement class C 250, Type 60, Type 80
Asphalt class A 15 - B 125, channel height ≥ 134 mm
Asphalt class C 250, channel height ≥ 134 mm
Pavement class A 15 - B 125, channel height ≥ 134 mm
Concrete class C 250, channel height ≥ 134 mm
Pavement class C 250, channel height ≥ 134 mm
Installation instructions
