Article No. 32406
SLOTTED COVERS 150, neck height 200 mm, class D 400
Asymmetrical, SW 14 mm, galvanised, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

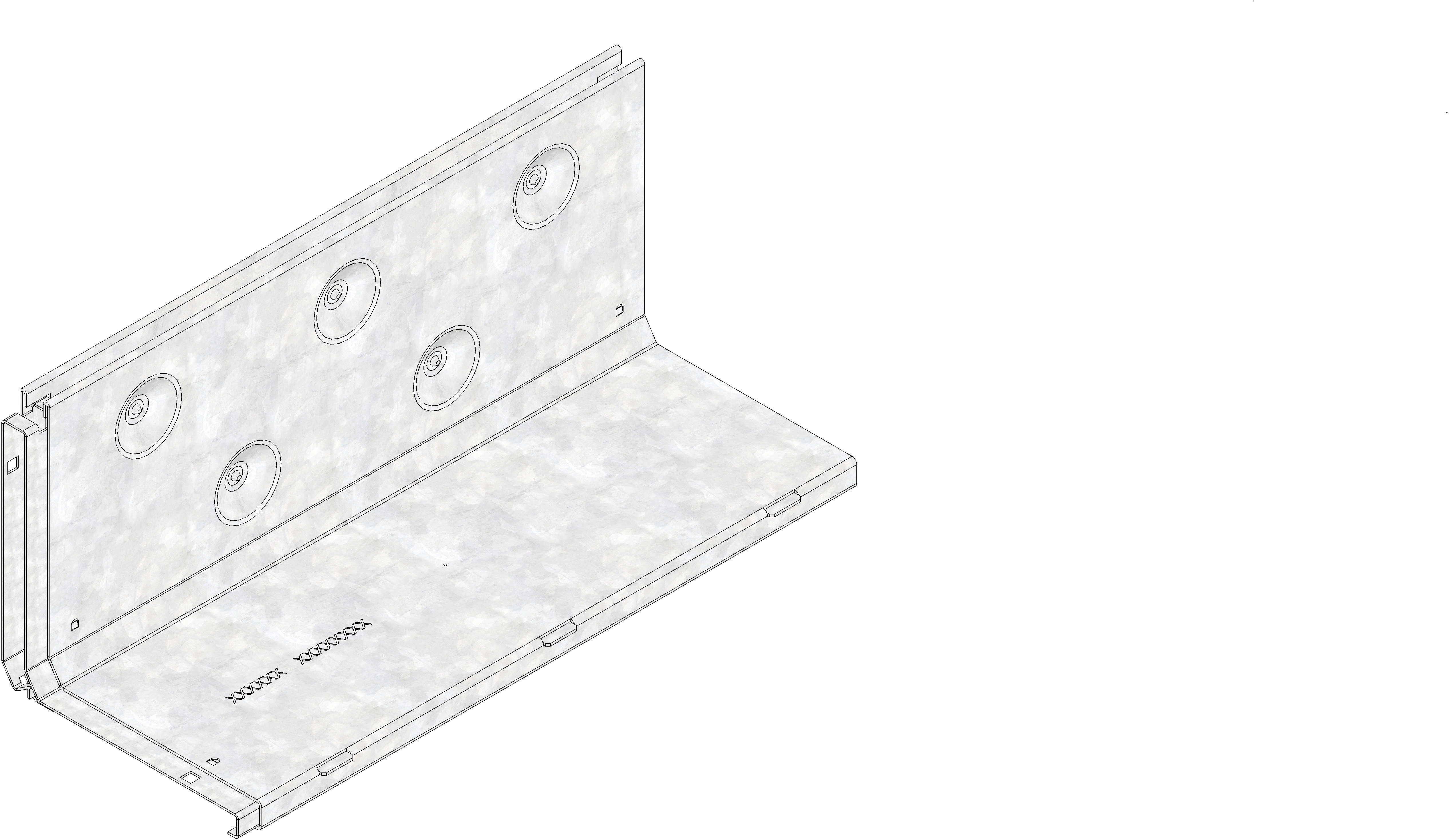

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32406
Length
500 mm
Width
206 mm
Height
229 mm
Inlay depth
222 mm
Weight
6.08 kg
Material
strip galvanized steel
Intake cross-section
140.0 cm²/m
Nominal size
150
Inlet opening
500 x 14 mm
Regulations
EN 1433
Sales text
Slotted cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -Slotted cover SW 14 mm, neck height 200 mm, asymmetric, galvanised, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 500 mm, item no. 32406
Packaging unit
80
Declaration of Performance
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Installation instructions
