Article No. 40004
sump unit
for NW 150, with silt bucket made of recycled PP, with mesh grating MS 30/30 mm, class B 125, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

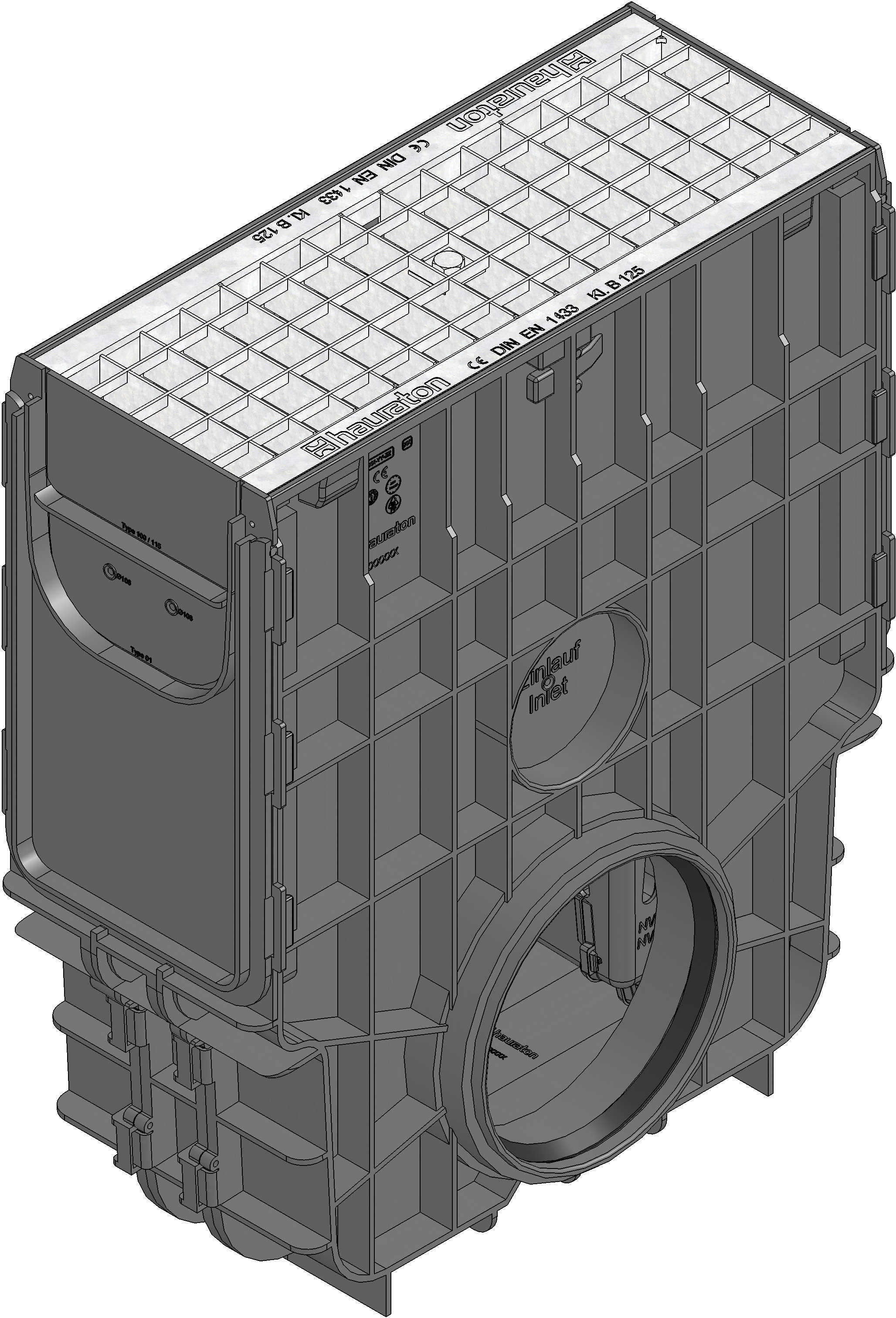

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40004
Length
500 mm
Width
216 mm
Height
627 mm
Inlay depth
2 mm
Weight
9.53 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, strip galvanized steel
Intake cross-section
1237.0 cm²/m
Nominal size
150
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with mesh grating MS 30/30 mm, galvanised, cl. B 125, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX STANDARD 150, 0.5 m
Product description
RECYFIX STANDARD 150 - Sump unit made of recycled polypropylene, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX STANDARD 150, with mesh grating MS 30/30 mm, galvanised, overlying, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x216x627 mm, item no. 40004
Packaging unit
8
