One System. Two Functions. The new RECYFIX HICAP F is coming

A ‘new generation’ of high-capacity, high-performance drainage and retention channels, purpose-designed to meet demanding requirements on a variety of projects.

RECYFIX HICAP F Slot Channel is a modular system with a range of channel sizes and accessories providing a total solution for high-capacity drainage, attenuation and conveyance of stormwater.

On this page Redesigned down to every detail What’s new? Capacity range Proven performance Demanding infrastructure Integrated rainwater management

High Performance for Drainage, Retention & Conveyance

New RECYFIX HICAP F – Designed down to every detail

Available for over 20 years, RECYFIX HICAP F evolution continues with five newly developed channels for optimised and hydraulically efficient performance.

  • For a range of demanding project types with extensive external pavements.

  • Designed for use in harsh F 900 environments with extreme surface loads and dynamic forces.

  • High-capacity drainage, retention and conveyance in one system

  • Five new channel capacities (25 – 160 l/m) carefully selected for efficient optimisation of sizes to meet project-specific hydraulic requirements.

What’s new?

Engineered for Efficiency from Design to Installation.

Five channel sizes have been completely re-engineered for cost-effective project design, efficient logistics and quicker installation.

More Flexibility in Project Design

  • Five newly optimised channel sizes
  • Two carefully sized multifunction gullies with ductile iron grating and frame
  • A new range of accessories
  • New 8mm dual-slot HeelSafe grating

All combine to provide more options.

More options. More efficient system design.

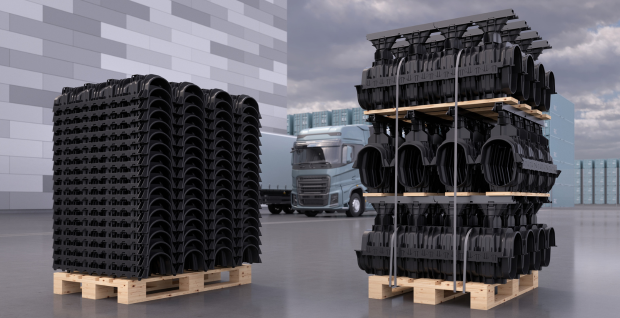

Optimised logistics

• RECYFIX HICAP F is transported fully assembled as standard.
Alternatively, when required…
• Units can be packed as ’stackable‘ components
• Designed for economic transport, handling and strorage

Compact in transport. For cost-effective supply.

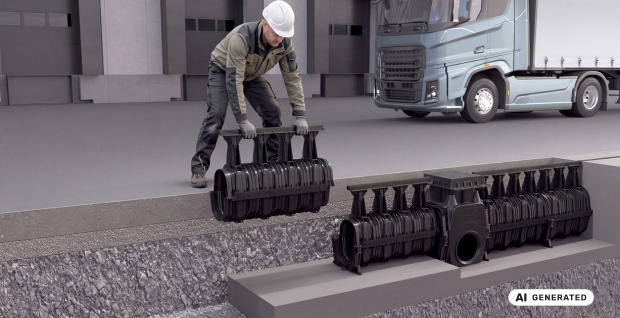

Easier installation

• Positive joint design
• Snap-in channel components
• Precise channel alignment
• Simplified assemby and handling on site.

A ‘purpose-designed’ product helps to reduce installation time and associated on-site costs. Durable for the construction site too.

One system for different capacity requirements

Improving a proven system

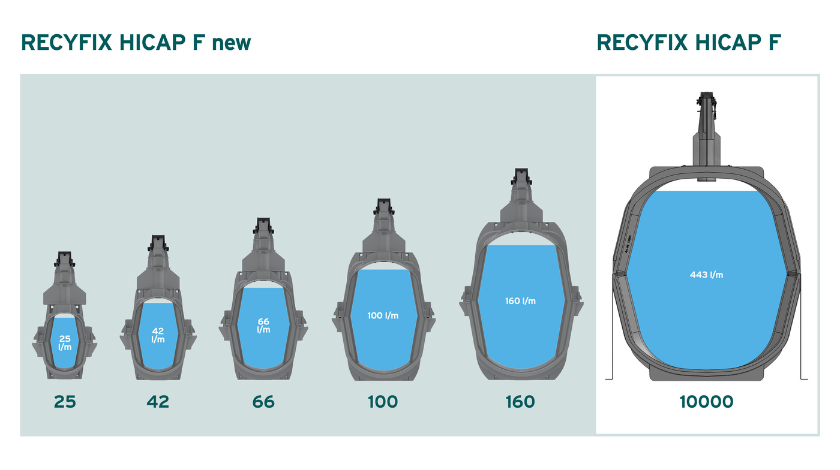

New generation RECYFIX HICAP F introduces five re-engineered channels with defined capacities for more cost-effective optimisation considering project-specific hydraulic requirements.

Hydraulische Leistungen des Entwässerungs- und Retentionssystems RECYFIX HICAP F auf einen Blick von links (kleinste hydraulische Leistung) nach rechts (größte hydraulische Leistung).

And for even higher capacity: We have RECYFIX HICAP F 10000

RECYFIX HICAP F 10000 remains part of the portfolio, providing the highest drainage capacity and retention volume compared with alternative modular slot channel systems available for transport over long distances.

RECYFIX HICAP F 10000 can be fully integrated with the five new channel sizes to provide a continuous step-fall channel run to effectively drain large catchment areas with a single end outlet, significantly reducing outlets, pipework and chambers for a value-engineered solution.

New RECYFIX HICAP F – Proven Performance

Structurally designed for safety, strength, durability and reliability.

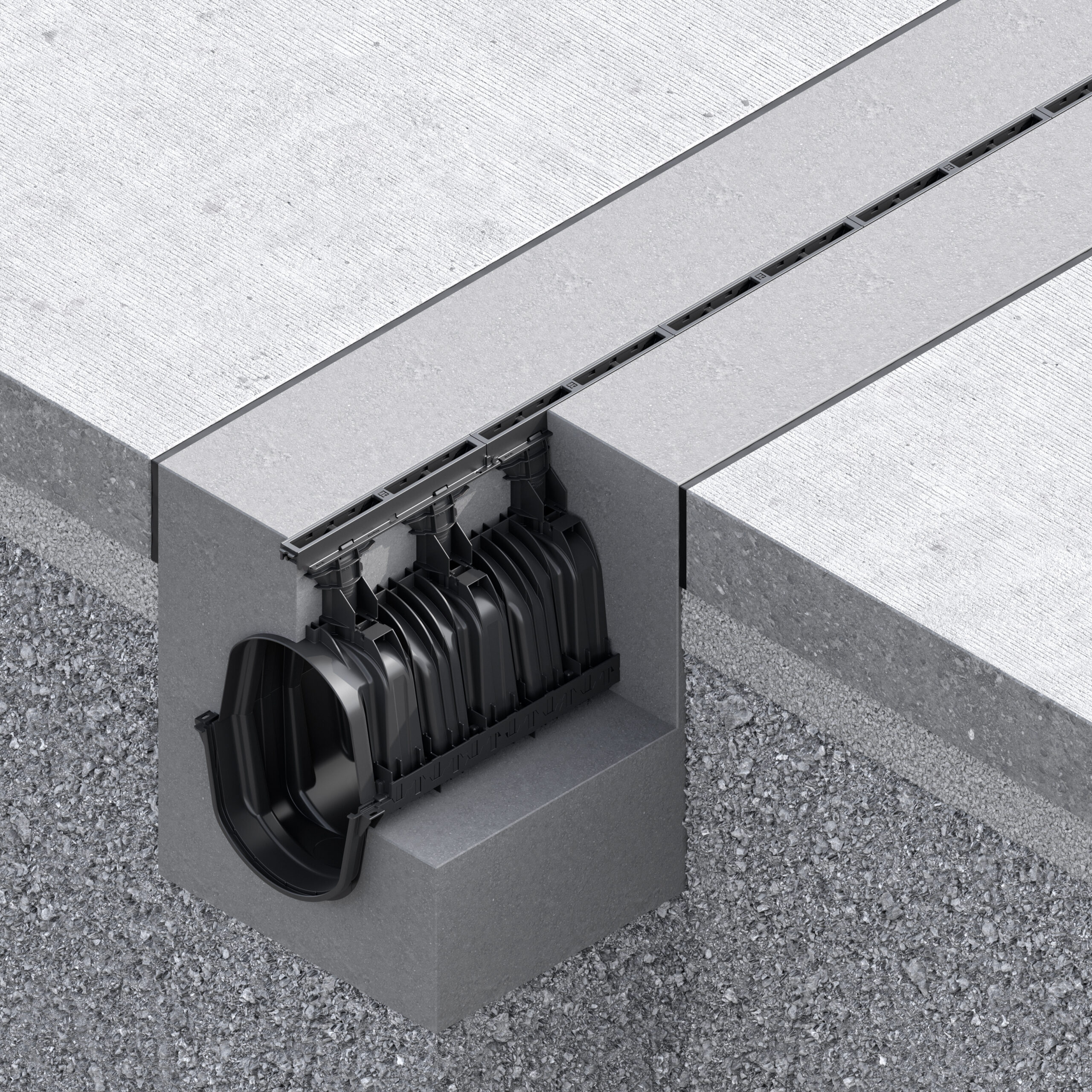

Einbauvisualisierung des Entwässerungssystems RECYFIX HICAP F

Integral within new RECYFIX HICAP F are the same system features and characteristics that have proven to bring reliable high-performance within demanding environments.

  • Monolithic type channel installation for structural integrity.

  • Gratings in Spheroidal Ductile Iron EN-GJS-500-7 with ‘cathodic-dip’ KTL coating.

  • Narrow grating footprint (47mm wide) and safe ‘retained grating’ design (no bolts).

  • Channel inlets and body in durable composite materials for smooth flow and high corrosion resistance.

  • Integral concrete anchors and external rib structure.

  • High salt resistance, water and frost-resistant, UV stable, temperature stable (-30ºC to +80ºC and beyond)

Designed for demanding infrastructure

RECYFIX HICAP F has been ‘purpose-designed’ for a range of projects where efficient drainage, water storage and conveyance of large volumes of stormwater is required. A proven system, RECYFIX HICAP F has already been successfully installed on many major projects around the world, including:

What ever happens above.

RECYFIX HICAP F new covers it below.

Industrial & Logistics:

High-capacity channels provide efficient drainage of large ‘sealed’ pavements, whilst able to withstand high surface loads and dynamic forces imposed through continual traffic by forklifts and heavy-goods-vehicles.

Ports & Container Terminals:

Strong, durable, impact and corrosion resistant, the system is ideal for surface drainage of operational pavements within maritime projects with extreme and harsh operating conditions.

Airports:

When installed, RECYFIX HICAP F is a durable, safe system installation providing efficient high-volume drainage of extensive airside surfaces with low F.O.D risk

Roads & Highways:

The system installation offers high resistance to heavy loads and extreme dynamic forces whilst ensuring a safe ‘low-risk‘ environment for passing vehicles, drivers and pedestrians.

The solution for efficient drainage of large external pavements

Engineered for safety, security and high-performance.

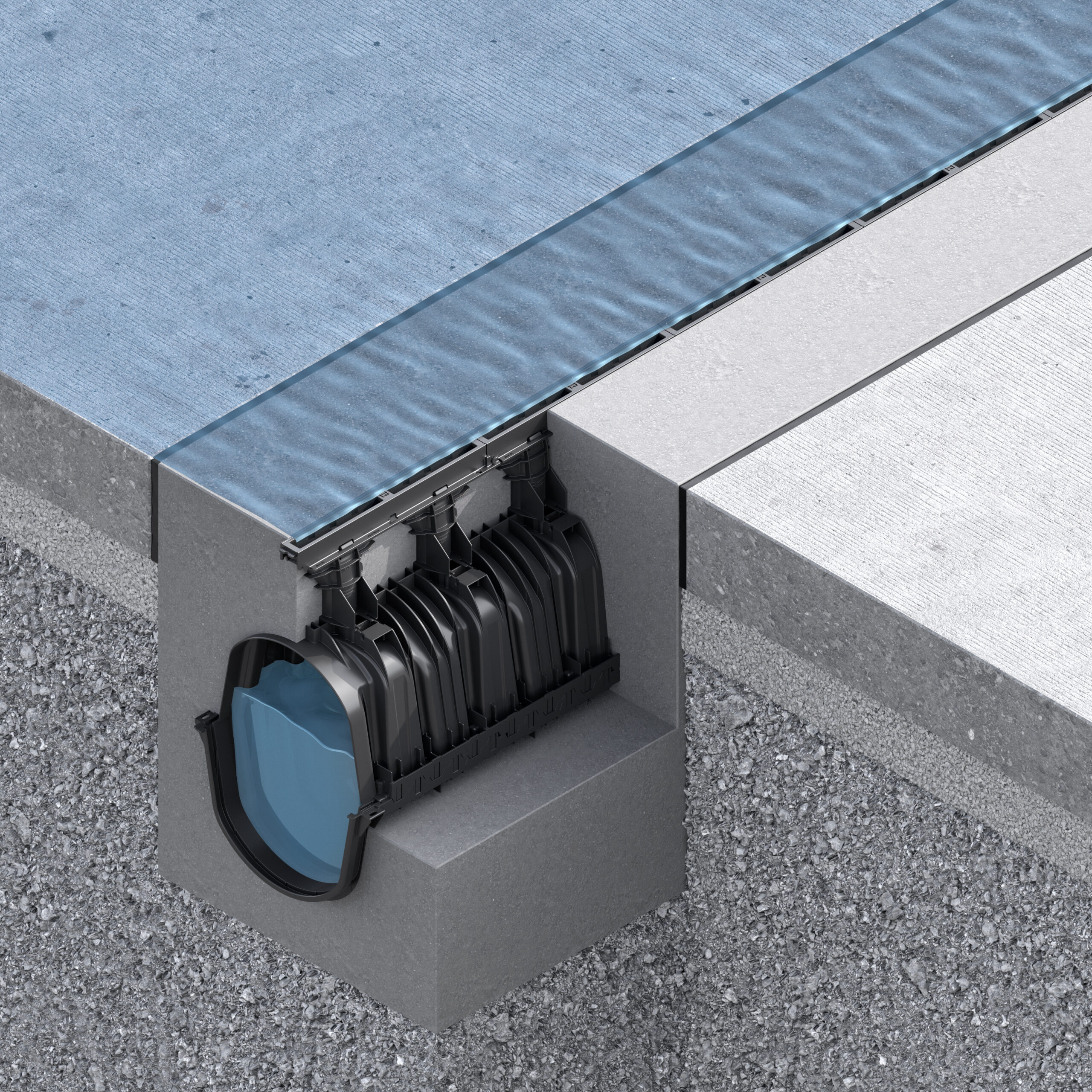

Einbauvisualisierung der RECYFIX HICAP F Entwässerungsrinne, die mit Wasser gefüllt ist.

Large external pavements require safe, secure and reliable surface drainage. Effective and efficient rainwater management is becoming an increasingly important requirement for major transport and infrastructure projects.

New RECYFIX HICAP F meets all these needs within one system:

  • Channel body components manufactured from recycled composite materials

  • Continuous interception of ‘sheet-flow’ surface water across large pavements

  • Retained grating design for safe and secure surfaces

  • High-capacity drainage, retention and conveyance of stormwater

  • Simple integration within a wider rainwater management system solution

  • Efficient packing and shipment as unassembled components for significantly reduced
    and cost-effective transport.

Event Regen.Impulse - Urbane Strategien für Regenwassermanagement

Integrated rainwater management

Drainage and retention of surface water are part of a wider rainwater management strategy. The RECYFIX HICAP F system can be combined with other HAURATON solutions to collect, store and convey rainwater for treatment and additional retention or infiltration.

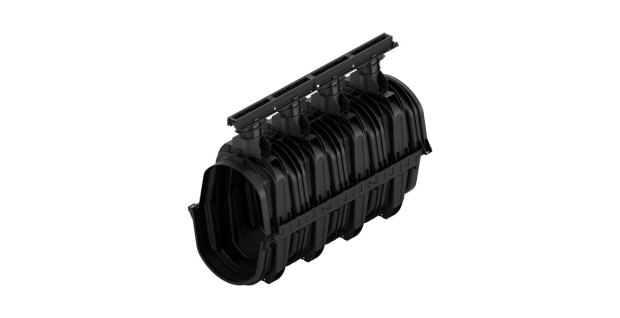

RECYFIX HICAP F Produktvisualisierung

New RECYFIX HICAP F is coming

Get in touch with us now. We will send you all the technical information you need – and our team is ready to support you with your project.

You will receive:

  • Technical product brochure
  • Specification and design support information
