Article No. 88332
AQUAFIX SK2BP Coalescence separator with sludge trap and double bypass
SK2BP 10/3000
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

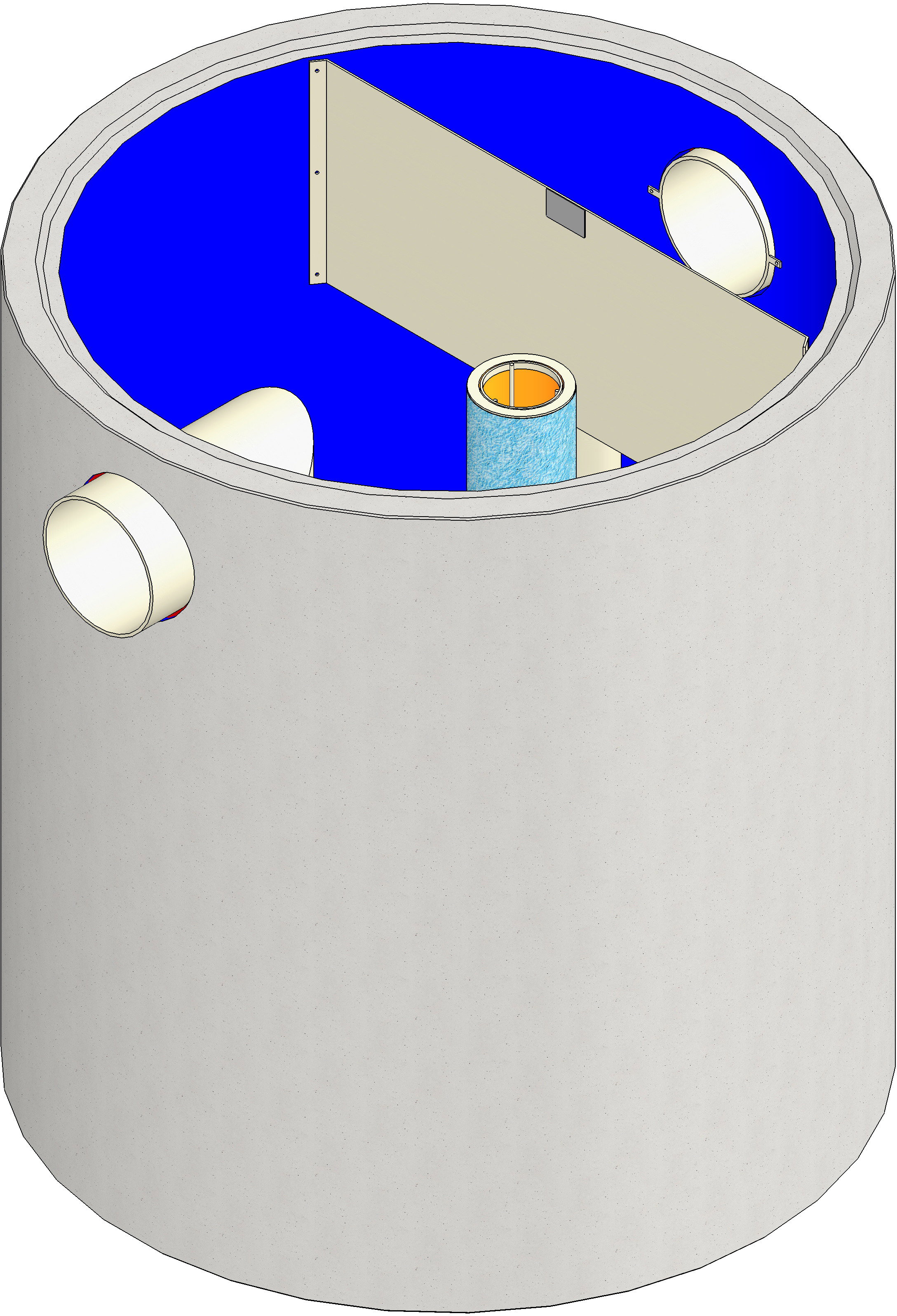

Product image
Technical drawing
Drawing (CAD)
Drawing
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
88332
Length
2300 mm
Width
2300 mm
External diameter
2240 mm
Height
2500 mm
Weight
-
Material
AQUAFIX coalescence material, Polypropylene, Standard concrete acc. norm
Nominal size
10.00 l/s
Bypass
double bypass
Flow performance
100.0 l/s
sludge trap capacity
3000 l
Separator capacity
2570 l
DN in-/outlet
400 mm
HE height inlet
1973 mm
HA height outlet
1923 mm
DNE Manhole 1
625 mm
Sales text
AQUAFIX Sludge Trap Coalescence Separator - Compact unit with double Bypass SK2BP 10/3000 made of concrete
Product description
AQUAFIX Sludge Trap Coalescence Separator - Compact unit with double Bypass SK2BP 10/3000 made of concrete, item no. 88332
Packaging unit
-
