Article No. 88312
AQUAFIX SK2BP Coalescence separator with sludge trap and double bypass
SK2Bp 10/3000
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

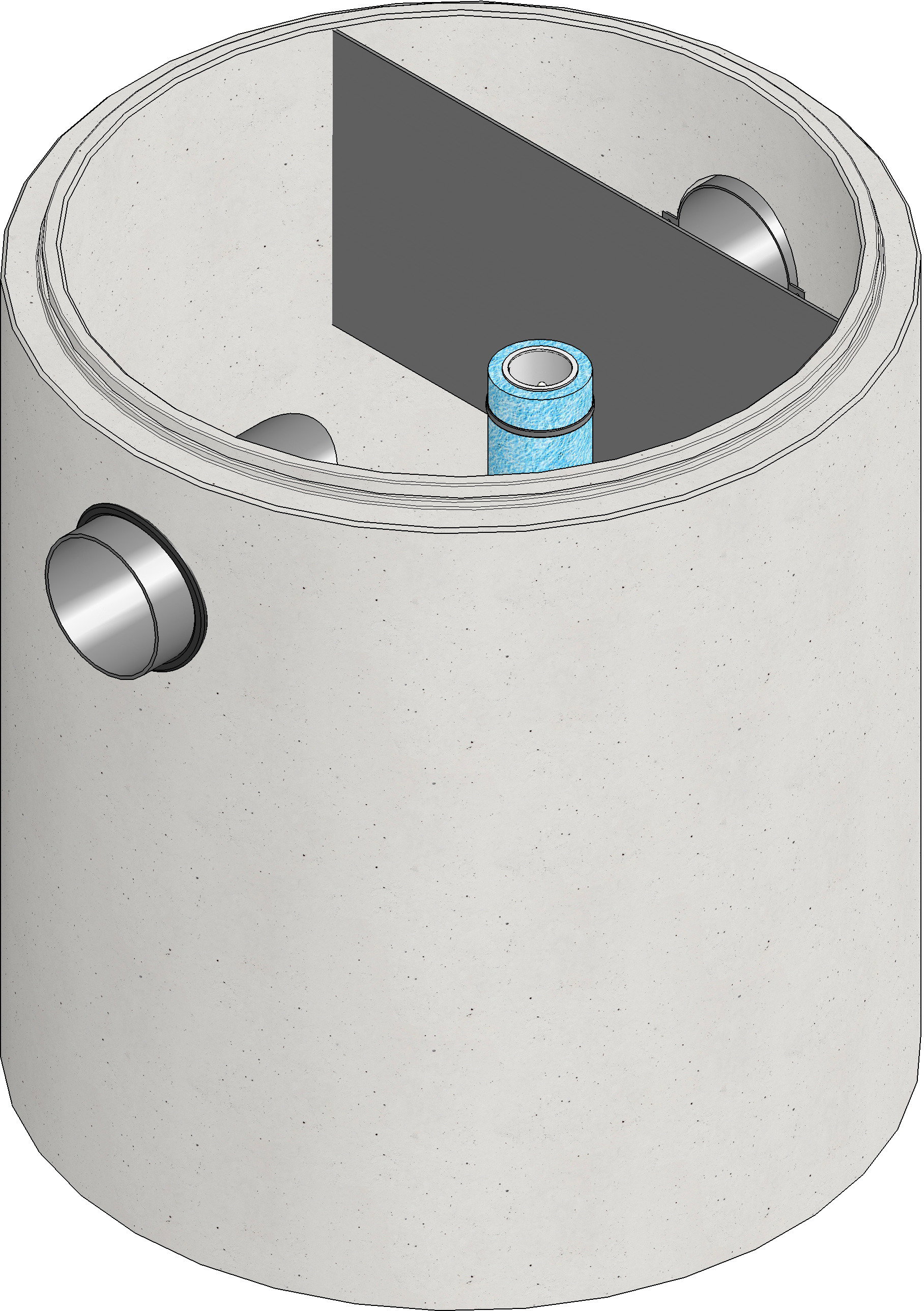

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

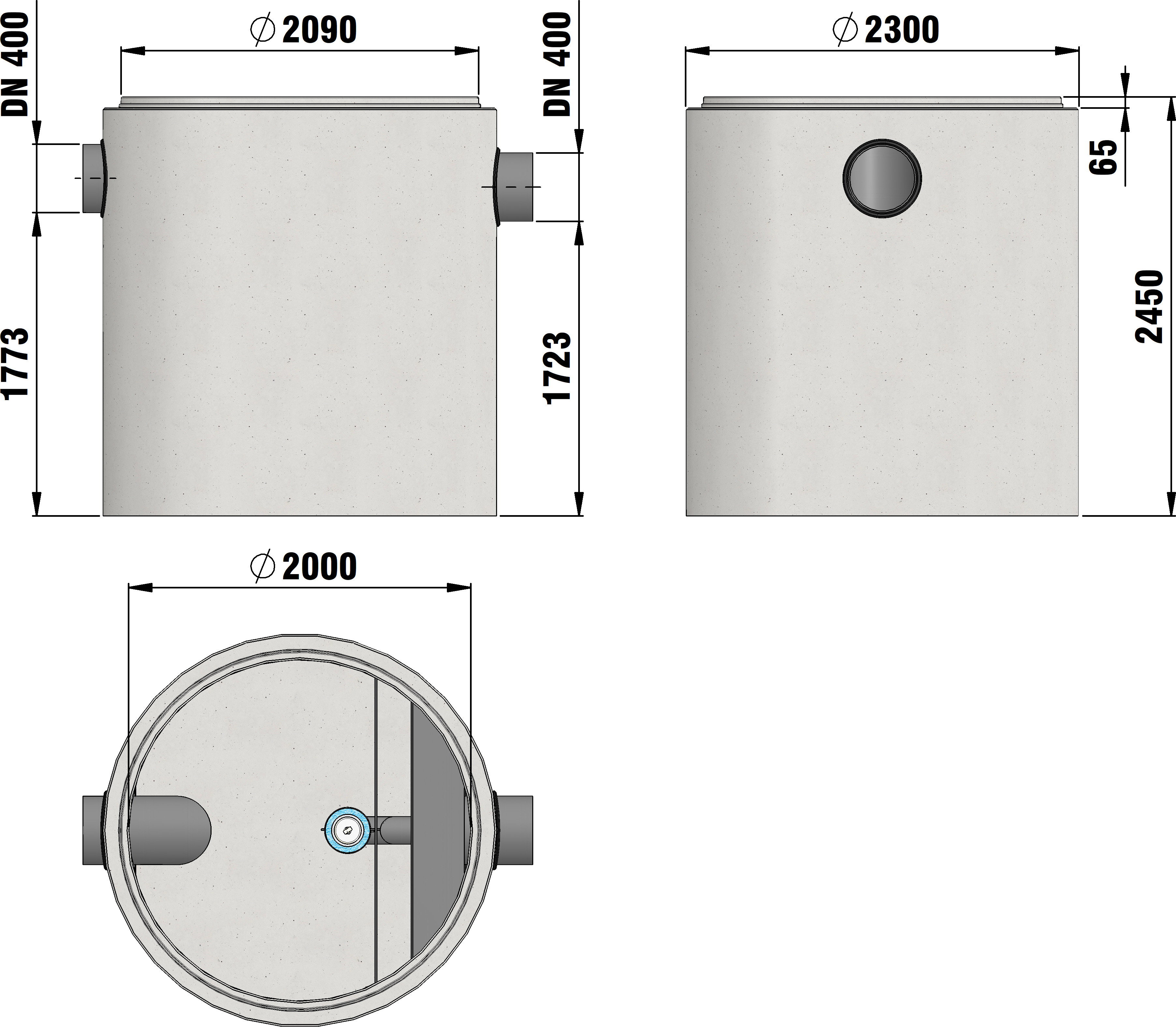

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88312
Length
2300 mm
Width
2300 mm
External diameter
2300 mm
Height
2450 mm
Weight
-
Material
AQUAFIX coalescence material, AQUAFIX PE, Standard concrete acc. norm
Nominal size
10.00 l/s
Bypass
double bypass
Flow performance
100.0 l/s
sludge trap capacity
3000 l
Separator capacity
688 l
DN in-/outlet
400 mm
HE height inlet
1773 mm
HA height outlet
1723 mm
DNE Manhole 1
625 mm
Regulations
EN 858
Sales text
AQUAFIX Coalescence separator-compact unit with sludge trap, with double Bypass SK2Bp 10/3000 PL made of concrete
Product description
AQUAFIX Coalescence separator-compact unit with sludge trap, with double Bypass SK2Bp 10/3000 PL made of concrete, item. 88312
Packaging unit
-
