Article No. 88313
AQUAFIX SK2BP Coalescence separator with sludge trap and double bypass
SK2Bp 15/1500
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

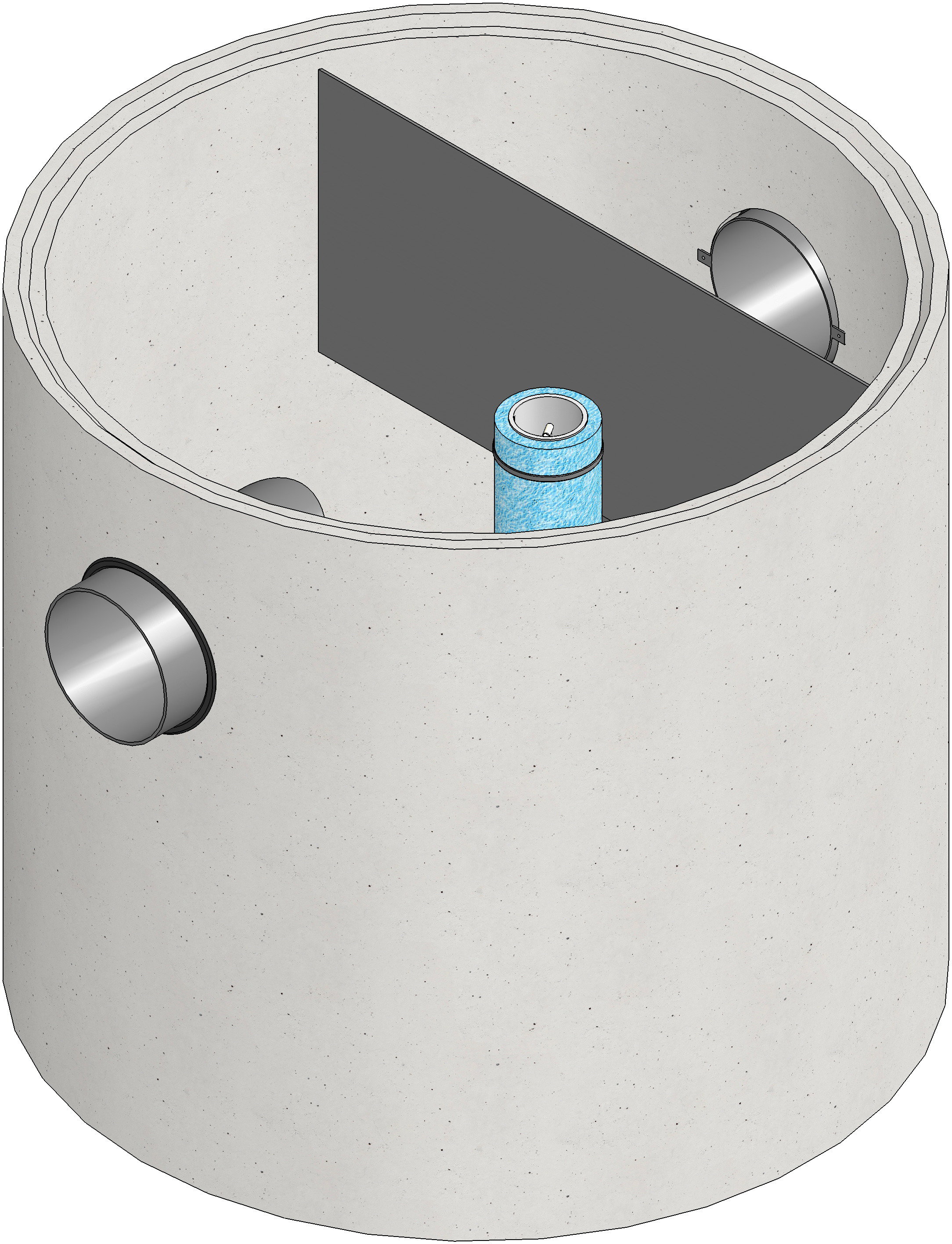

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing

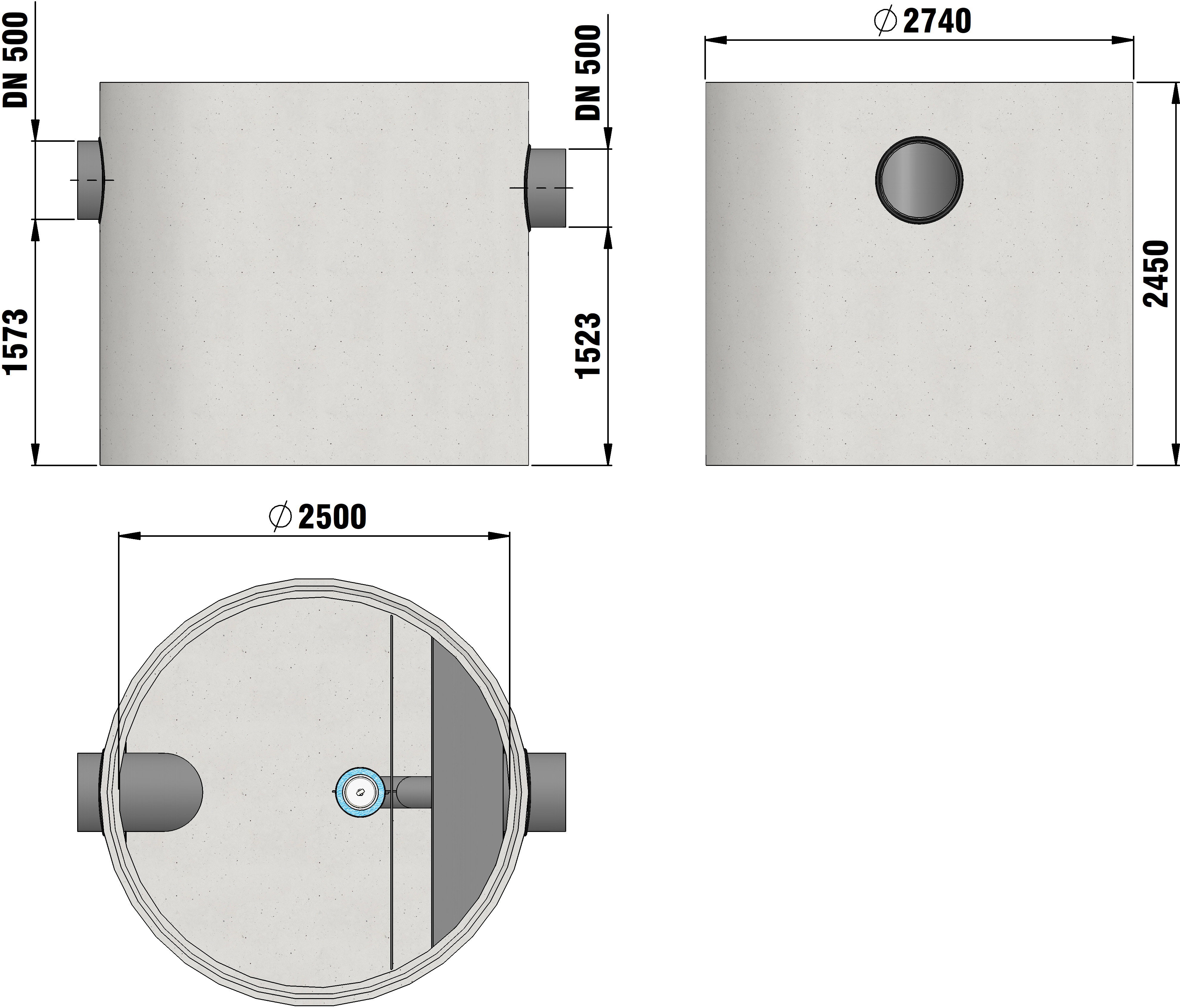

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
88313
Length
2740 mm
Width
2740 mm
External diameter
2740 mm
Height
2450 mm
Weight
-
Material
AQUAFIX coalescence material, AQUAFIX PE, Standard concrete acc. norm
Nominal size
15.00 l/s
Bypass
double bypass
Flow performance
150.0 l/s
sludge trap capacity
1500 l
Separator capacity
2520 l
DN in-/outlet
500 mm
HE height inlet
1573 mm
HA height outlet
1523 mm
DNE Manhole 1
625 mm
Regulations
EN 858
Sales text
AQUAFIX Coalescence separator-compact unit with sludge trap, with double Bypass SK2Bp 15/1500 PL made of concrete
Product description
AQUAFIX Coalescence separator-compact unit with sludge trap, with double Bypass SK2Bp 15/1500 PL made of concrete, item no. 88313
Packaging unit
-
