Article No. 88334
AQUAFIX SK2BP Coalescence separator with sludge trap and double bypass
SK2BP 20/2000
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

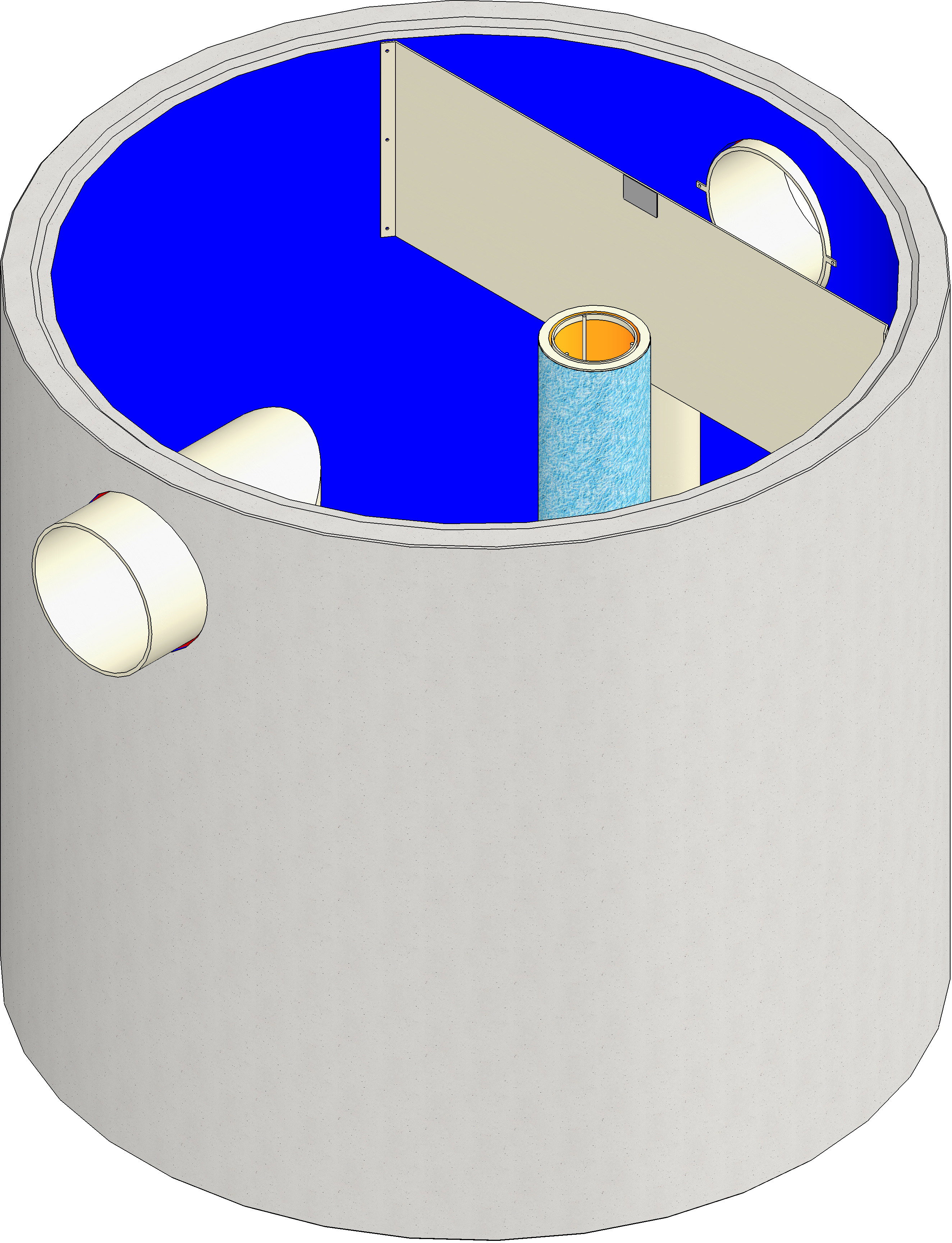

Product image
Technical drawing
Drawing
Drawing (CAD)
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
88334
Length
2800 mm
Width
2800 mm
External diameter
2800 mm
Height
2500 mm
Weight
-
Material
AQUAFIX coalescence material, Polypropylene, Standard concrete acc. norm
Nominal size
20.00 l/s
Bypass
double bypass
Flow performance
200.0 l/s
sludge trap capacity
2000 l
Separator capacity
6210 l
DN in-/outlet
500 mm
HE height inlet
1873 mm
HA height outlet
1823 mm
DNE Manhole 1
625 mm
Sales text
AQUAFIX Sludge Trap Coalescence Separator - Compact unit with double Bypass SK2BP 20/2000 made of concrete
Product description
AQUAFIX Sludge Trap Coalescence Separator - Compact unit with double Bypass SK2BP 20/2000 made of concrete, item no. 88334
Packaging unit
-
