Article No. 32714
AQUAFIX SKG2BP Coalescence separator with sludge trap and bypass with increased performance
SKG2Bp H 090
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

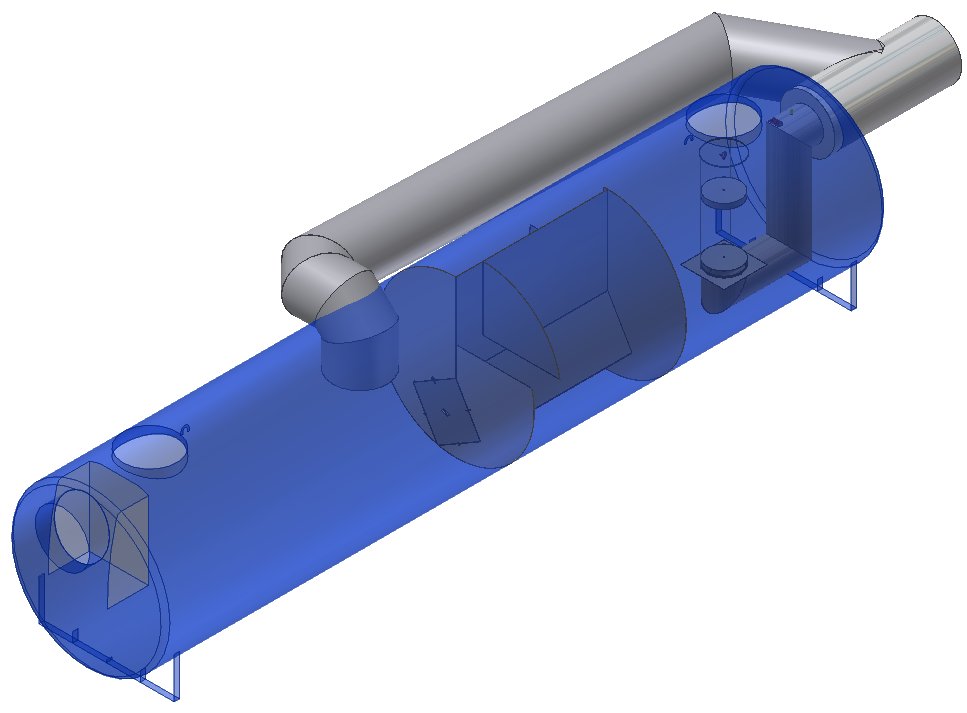

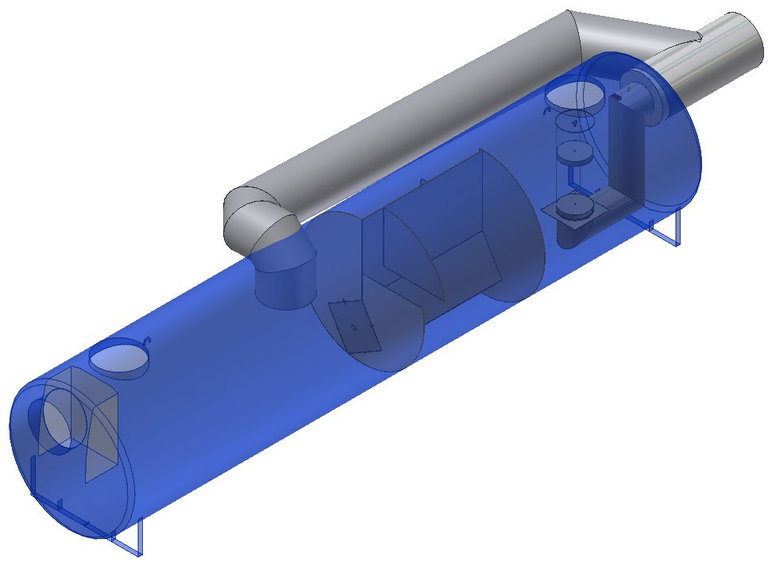

Product image
Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
32714
Length
9302 mm
Width
3212 mm
External diameter
2500 mm
Height
2812 mm
Weight
-
Material
AQUAFIX coalescence material, AQUAFIX Steel
Nominal size
90.00 l/s
Bypass
double bypass
Flow performance
900.0 l/s
sludge trap capacity
9950 l
Separator capacity
12720 l
DN in-/outlet
800 mm
HE height inlet
1650 mm
HA height outlet
1600 mm
DNE Manhole 1
1000 mm
Regulations
EN 858
Sales text
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 090
Product description
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 090, item no. 32714
Packaging unit
-
