Article No. 32703
AQUAFIX SKG2BP Coalescence separator with sludge trap and bypass with increased performance
SKG2Bp H 030
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

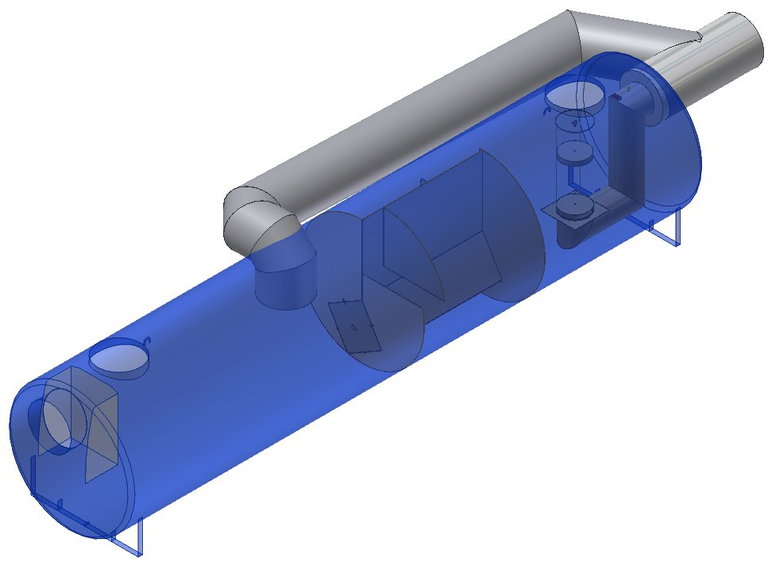

Product image

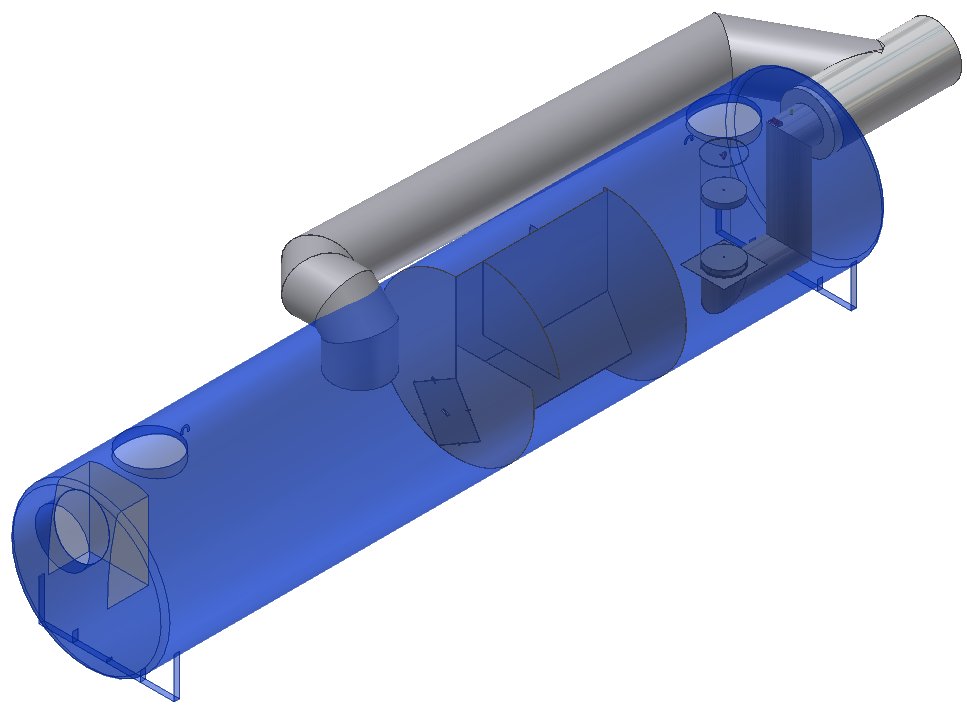

Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
32703
Length
7366 mm
Width
2033 mm
External diameter
1600 mm
Height
1912 mm
Weight
-
Material
AQUAFIX coalescence material, AQUAFIX Steel
Nominal size
30.00 l/s
Bypass
double bypass
Flow performance
300.0 l/s
sludge trap capacity
4050 l
Separator capacity
4060 l
DN in-/outlet
500 mm
HE height inlet
1050 mm
HA height outlet
1000 mm
DNE Manhole 1
1000 mm
Regulations
EN 858
Sales text
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 030
Product description
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 030, item no. 32703
Packaging unit
-
