Article No. 32701
AQUAFIX SKG2BP Coalescence separator with sludge trap and bypass with increased performance
SKG2Bp H 020
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

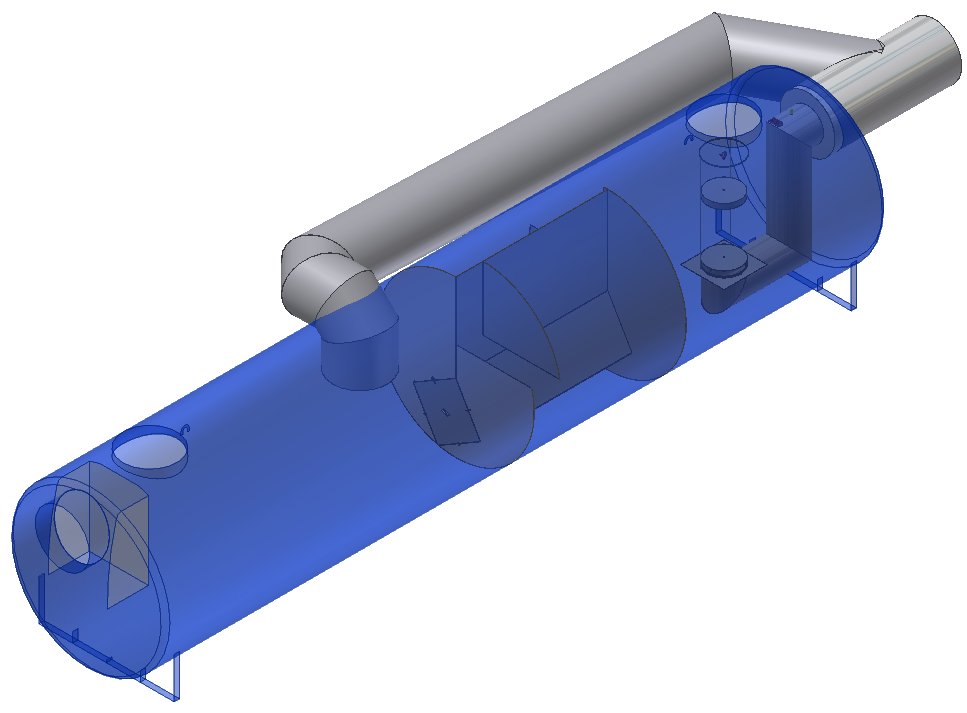

Product image

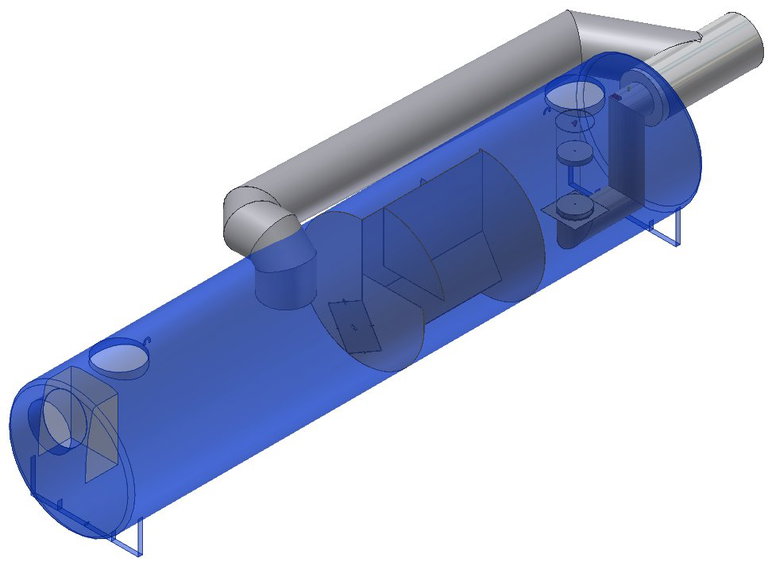

Installation drawing
AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
32701
Length
6607 mm
Width
1666 mm
External diameter
1250 mm
Height
1562 mm
Weight
-
Material
AQUAFIX coalescence material, AQUAFIX Steel
Nominal size
20.00 l/s
Bypass
without bypass
Flow performance
200.0 l/s
sludge trap capacity
2310 l
Separator capacity
2070 l
DN in-/outlet
400 mm
HE height inlet
800 mm
HA height outlet
750 mm
DNE Manhole 1
625 mm
Regulations
EN 858
Sales text
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 020
Product description
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 020, item no. 32701
