Article No. 32700
AQUAFIX SKG2BP Coalescence separator with sludge trap and bypass with increased performance
SKG2Bp H 015
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

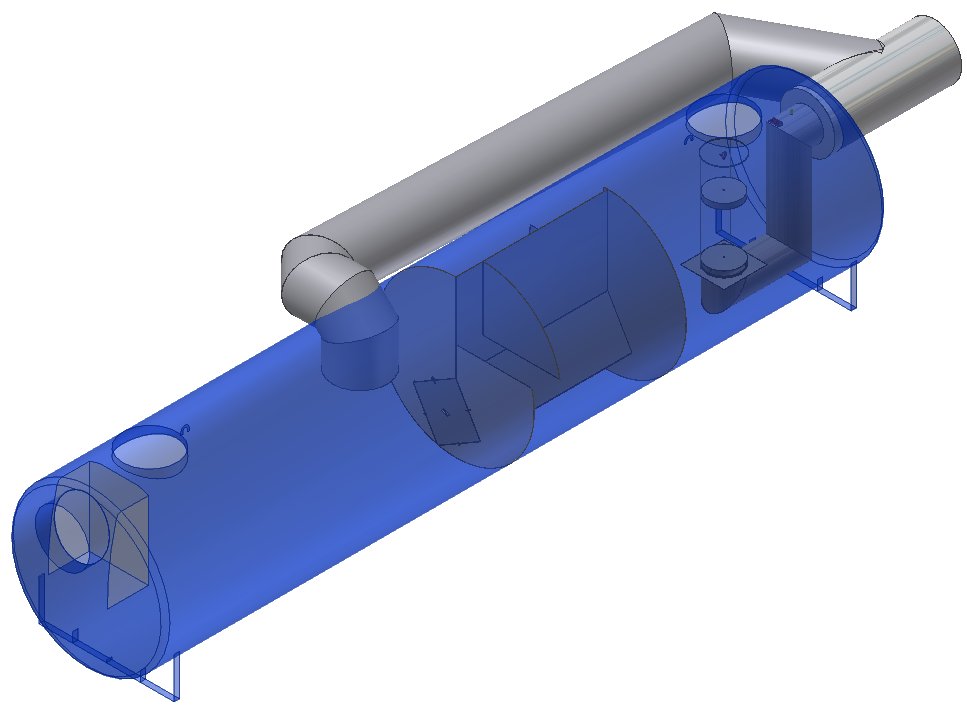

Installation drawing

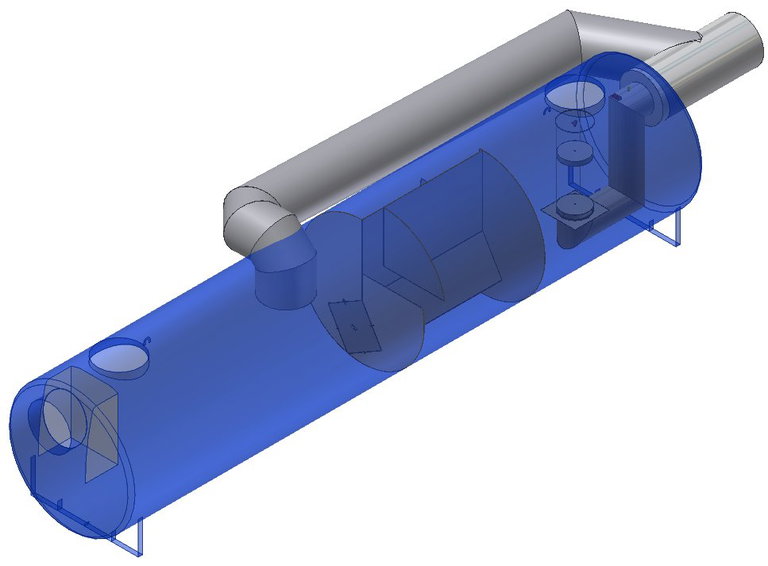

AQUAFIX - Construction site drawing
AQUAFIX - Construction site drawing
Technical information and metrics
Article No.
32700
Length
5307 mm
Width
1666 mm
External diameter
1250 mm
Height
1562 mm
Weight
-
Material
AQUAFIX coalescence material, AQUAFIX Steel
Nominal size
15.00 l/s
Bypass
double bypass
Flow performance
150.0 l/s
sludge trap capacity
1510 l
Separator capacity
1740 l
DN in-/outlet
400 mm
HE height inlet
800 mm
HA height outlet
750 mm
DNE Manhole 1
625 mm
Regulations
EN 858
Sales text
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 015
Product description
AQUAFIX Large separator with sludge trap and double Bypass SKG2Bp H 015, item no. 32700
Packaging unit
-
