Article No. 63100
DACHFIX RESIST, height 45 mm, channels made of recycled composite
Type 45, made of PP, silver, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

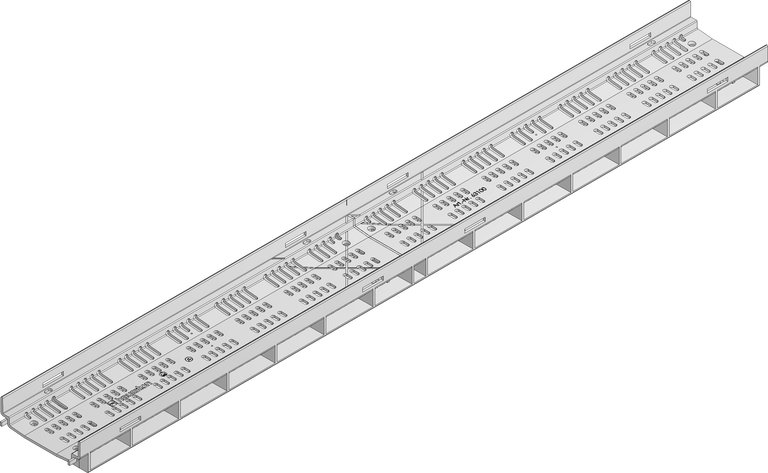

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
63100
Length
1000 mm
Width
115 mm
Height
45 mm
Weight
0.75 kg
Material
modified Polypropylene silver
Height of angle housing
20 mm
Nominal size
90
Internal channel cross-section
-
Fall
-
Type according to DIN EN 1433
M
Channel material
modified Polypropylene silver
Sales text
DACHFIX RESIST 115 Channel body type 45 made of recycled PP, silver, installation height 45 mm, 1 m
Product description
DACHFIX RESIST 115 type 45 - Channel body made of recycled polypropylene, silver, LxWxH 1000x115x45 mm, item no. 63100
Packaging unit
100
Tender Texts
Installation example
wheelchair accessible, drainage without channel connection
