Article No. 66164

DACHFIX STEEL 115, height 100 mm

Type 100, galvanised, 1.0 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

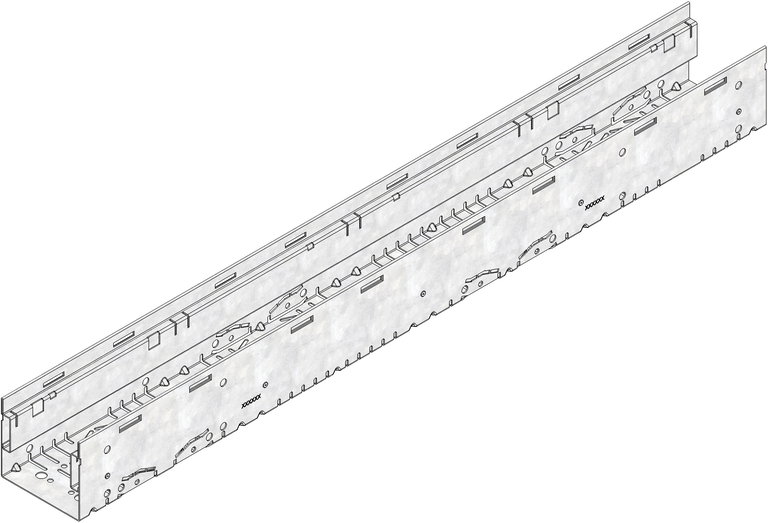

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
66164
Length
1000 mm
Width
115 mm
Height
100 mm
Weight
4.37 kg
Material
strip galvanized steel
Height of angle housing
20 mm
Nominal size
115
Internal channel cross-section
87 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
strip galvanized steel
Sales text
DACHFIX STEEL 115 Channel body type 100, galvanised, installation height 100 mm, 1 m
Product description
STEELFIX STEEL 115 type 100 - Channel body made of corrosion-protected galvanised steel, pedestrian and wheelchair accessible, grating support tilted inwards, with perforation on the sides and in channel base, with connection possibility in the channel base for pipe connector DN/OD 75 or DN/OD 100 as well as lateral 8-fold connection possibility for cross-intersection, with integrated, optional 2-fold fixing anchor, LxWxH 1000x115x100 mm, item no. 66164
Packaging unit
-

Tender Texts

Installation instructions
Installation instructions

Installation example

wheelchair accessible, drainage without channel connection

Installation example

wheelchair accessible, drainage via drain box, vertical connection

Installation example

wheelchair accessible, drainage via drain box, horizontal connection

Installation example

wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)

Installation example

wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)

Installation example

flagstone surface class Walkable, wheelchair accessible

Installation example

wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection

Installation example

wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example

wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT

Installation example
